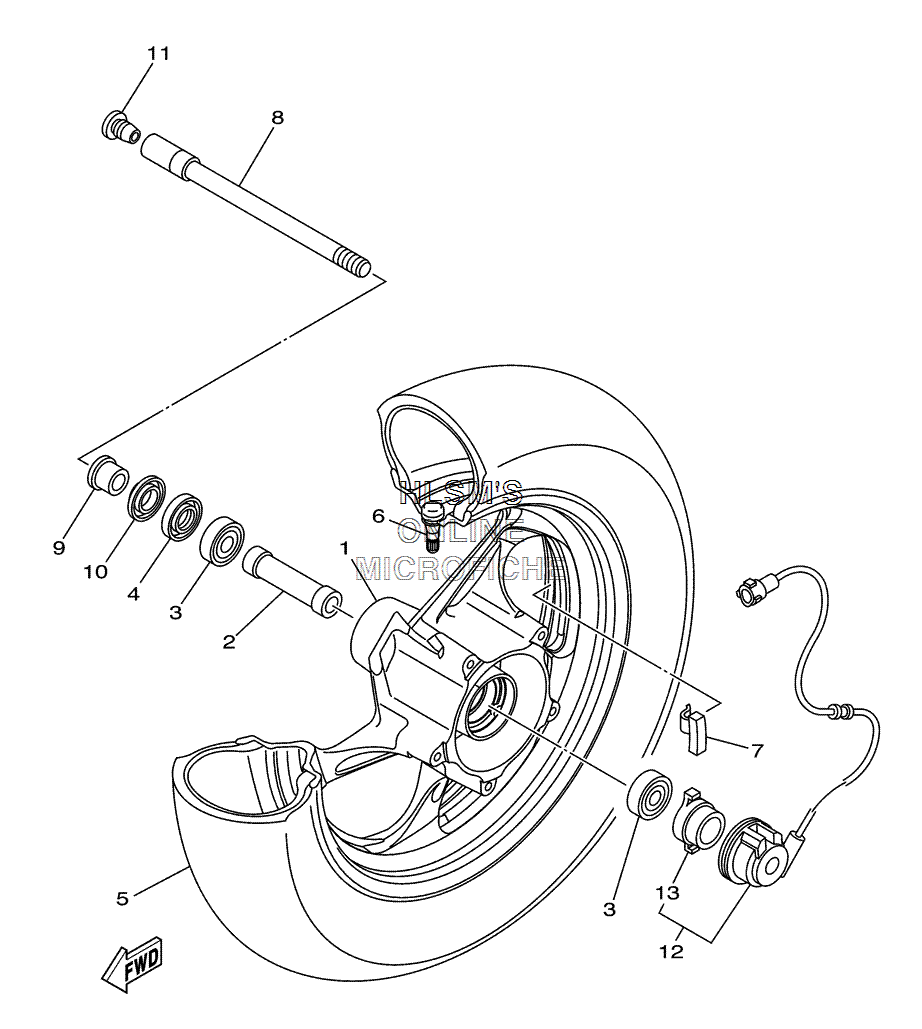

WHEEL - FRONT для Yamaha MAJESTY - 2006 года выпуска`
-
№АртикулНазвание
-
15RU-25168-00-00 CAST WHEEL, FRONTCAST WHEEL, FRONT
-
290560-15255-00 SPACERSPACER
-
393306-30212-00 BEARINGBEARING
-
493102-22014-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
594112-14012-00 TIRE (120/80-M/C 58S MB67) (INQUE)TIRE (120/80-M/C 58S MB67) (INQUE)
-
594112-14025-00 TIRE (120/80-M/C 58S D305F) (DUNLOP)TIRE (120/80-M/C 58S D305F) (DUNLOP)
-
693900-00022-00 VALVE, RIMVALVE, RIM
-
75MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
75MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
75MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
85RU-25181-00-00 AXLE, WHEEL FRONTAXLE, WHEEL FRONT
-
95GJ-25183-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
105GJ-25118-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
1190338-16004-00 PLUGPLUG
-
125RU-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
135VU-2517G-00-00 ...ROTOR, SENSOR...ROTOR, SENSOR
