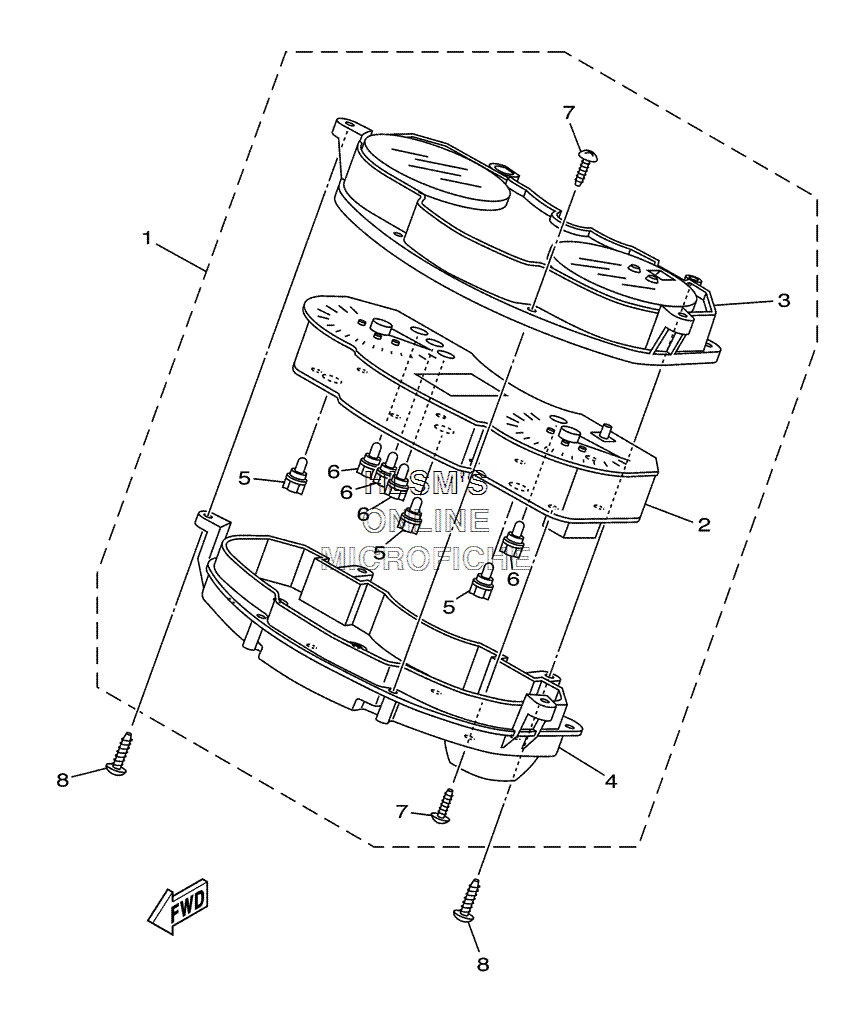

INSTRUMENT PANEL для Yamaha MAJESTY - 2006 года выпуска`
-
№АртикулНазвание
-
15RU-83500-10-00 METER ASSY. (MPH)METER ASSY. (MPH)
-
25RU-83510-10-00 ...SPEEDOMETER ASSY....SPEEDOMETER ASSY.
-
35RU-83511-00-00 ...LENS...LENS
-
45RU-8353H-00-00 ...CASE...CASE
-
54YR-83517-10-00 ...BULB (12V-2W T5)...BULB (12V-2W T5)
-
64YR-83517-00-00 ...BULB (12V-1.4W T5)...BULB (12V-1.4W T5)
-
74AS-83616-10-00 ...SCREW, TAPPING...SCREW, TAPPING
-
897707-50016-00 SCREW, TAPPINGSCREW, TAPPING
Все узлы модели:
- AIR CLEANER ASSY.
- BRAKE - FRONT CALIPER
- BRAKE - MASTER CYLINDER FRONT AND REAR
- BRAKE - REAR CALIPER
- CAMSHAFT W/ CHAIN
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR W/ CABLES - MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- • INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP W/ CLEANER
- RADIATOR W/ HOSES
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM W/ SHOCK
- TAILLIGHT ASSY.
- THROTTLE BODY ASSY W/ INTAKE
- TRANSMISSION
- VALVE ASSY.
- WATER PUMP ASSY.
- WHEEL - FRONT
- WHEEL - REAR
