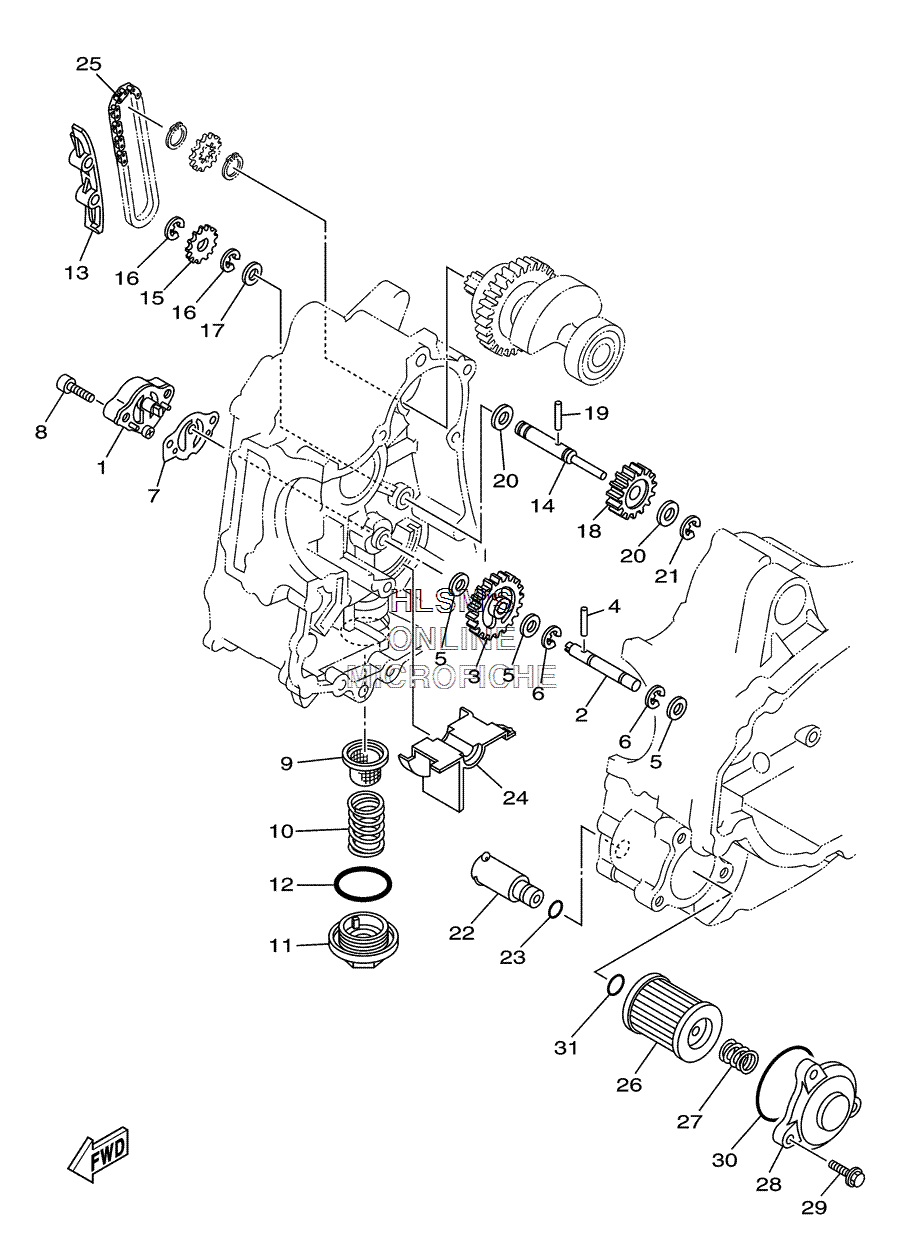

OIL PUMP W/ CLEANER для Yamaha MAJESTY - 2006 года выпуска`
-
№АртикулНазвание
-
15RU-13300-00-00 OIL PUMP ASSY.OIL PUMP ASSY.
-
25RU-13344-00-00 SHAFT, DRIVEN GEARSHAFT, DRIVEN GEAR
-
35RU-13325-00-00 GEAR, PUMP DRIVENGEAR, PUMP DRIVEN
-
493603-22028-00 PIN, DOWELPIN, DOWEL
-
590201-08512-00 WASHER, PLATEWASHER, PLATE
-
699001-07600-00 CIRCLIPCIRCLIP
-
75RU-13475-00-00 GASKETGASKET
-
891317-06025-00 BOLTBOLT
-
951Y-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1090501-18576-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
115RU-15351-00-00 PLUG, DRAIN 1PLUG, DRAIN 1
-
1293210-35520-00 O-RINGO-RING
-
135RU-13381-00-00 DAMPERDAMPER
-
145RU-13342-01-00 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
155RU-13355-00-00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
1699001-07600-00 CIRCLIPCIRCLIP
-
1790201-105E8-00 WASHER, PLATEWASHER, PLATE
-
185RU-13341-00-00 GEAR, OIL PUMP IDLEGEAR, OIL PUMP IDLE
-
1993603-22028-00 PIN, DOWELPIN, DOWEL
-
2090201-105E8-00 WASHER, PLATEWASHER, PLATE
-
2199001-09600-00 CIRCLIPCIRCLIP
-
225RU-13490-00-00 RELIEF VALVE ASSY.RELIEF VALVE ASSY.
-
2393210-10096-00 O-RINGO-RING
-
245RU-13327-00-00 COVER, GEARCOVER, GEAR
-
2594580-25050-00 CHAINCHAIN
-
265RU-13440-00-00 ELEMENT ASSY., OIL CLEANERELEMENT ASSY., OIL CLEANER
-
2790501-162E4-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
285RU-13447-00-00 COVER, OIL ELEMENTCOVER, OIL ELEMENT
-
2995027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3093210-56589-00 O-RINGO-RING
-
3193210-13016-00 O-RINGO-RING
