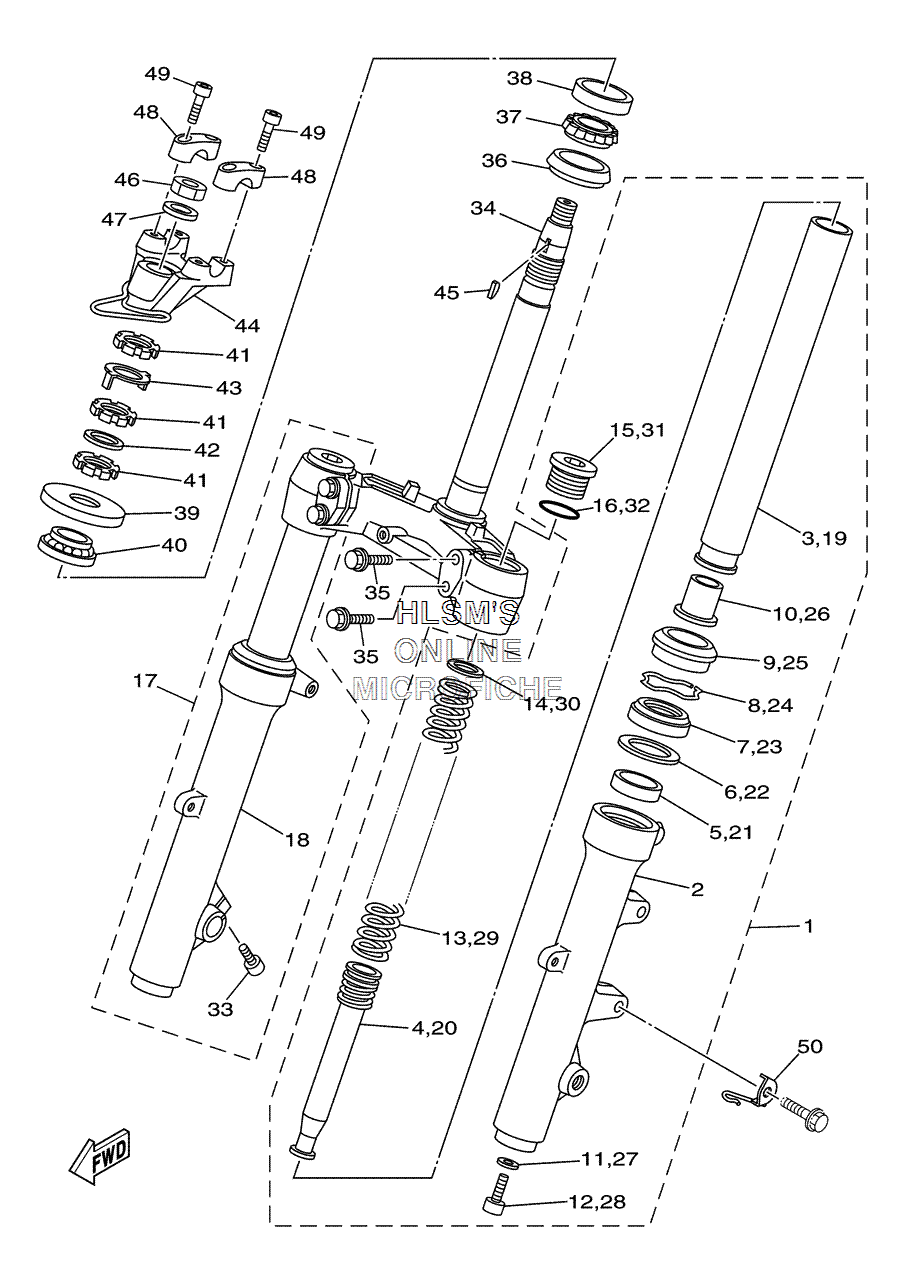

SUSPENSION - FRONT FORK для Yamaha MAJESTY - 2006 года выпуска`
-
№АртикулНазвание
-
15RU-23102-00-00 FRONT FORK ASSY. (L.H)FRONT FORK ASSY. (L.H)
-
25RU-23126-00-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
35RU-23110-00-00 ...INNER TUBE COMP....INNER TUBE COMP.
-
45RU-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
54FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
636Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
74EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
826H-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
94EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
104YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
11509-23158-L0-00 ...GASKET...GASKET
-
12278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
135RU-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
143EN-23149-50-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
155RU-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1643F-23188-10-00 ...O-RING...O-RING
-
175RU-23103-00-00 FRONT FORK ASSY. (R.H)FRONT FORK ASSY. (R.H)
-
185RU-23136-00-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
195RU-23110-00-00 ...INNER TUBE COMP....INNER TUBE COMP.
-
205RU-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
214FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
2236Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
234EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
2426H-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
254EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
264YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
27509-23158-L0-00 ...GASKET...GASKET
-
28278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
295RU-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
303EN-23149-50-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
315RU-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
3243F-23188-10-00 ...O-RING...O-RING
-
3391317-08025-00 ...BOLT...BOLT
-
345RU-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
355RU-23436-00-00 BOLTBOLT
-
365RU-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
3793332-00086-00 BEARINGBEARING
-
385GJ-17554-00-00 RETAINER, BEARINGRETAINER, BEARING
-
395RU-23415-00-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
4093399-99932-00 BEARING, SPECIALBEARING, SPECIAL
-
4190179-30002-00 NUTNUT
-
4290202-30235-00 WASHER, PLATEWASHER, PLATE
-
434XV-23418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
445RU-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
4590280-03017-00 KEY, WOODRUFFKEY, WOODRUFF
-
4690170-20386-00 NUTNUT
-
4790201-206R3-00 WASHER, PLATEWASHER, PLATE
-
484H7-23441-10-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
4991317-08030-00 BOLTBOLT
-
504YR-23317-00-00 HOLDER, CABLEHOLDER, CABLE
