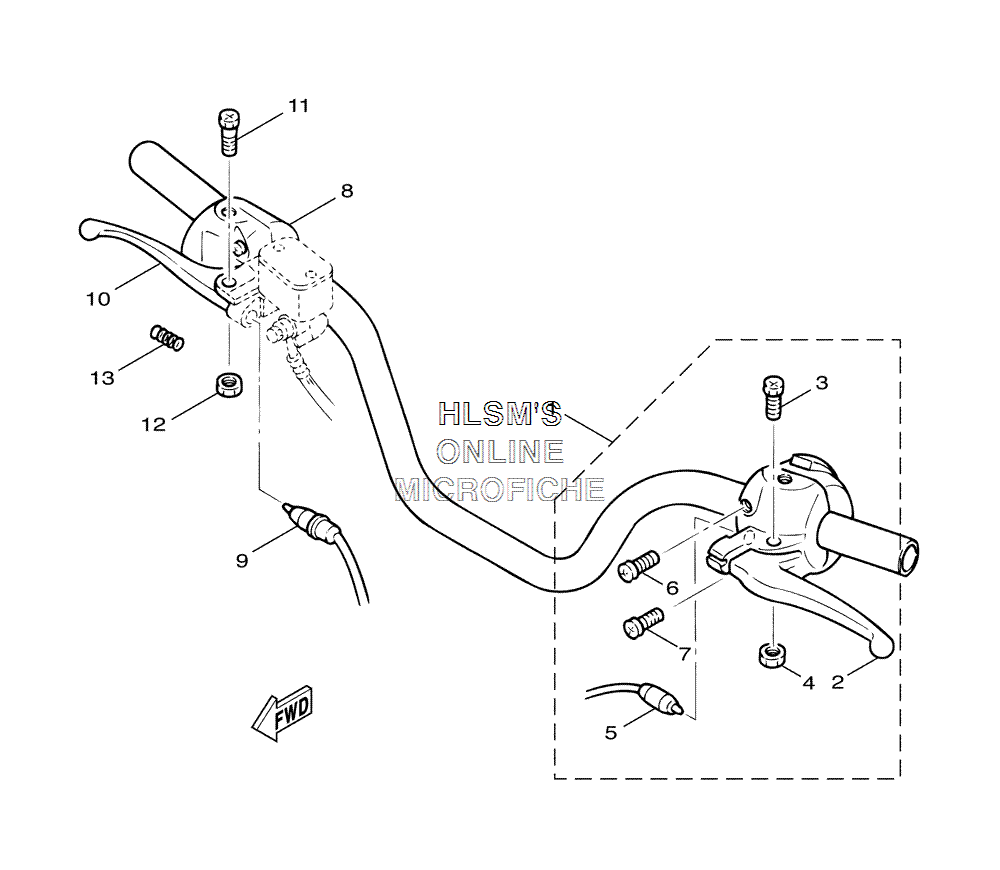

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha VINO 125 - 2005 года выпуска`
-
№АртикулНазвание
-
15YR-H2910-10-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
25YR-H3912-00-00 ...LEVER 1...LEVER 1
-
33XG-H3915-00-00 ...SCREW, LEVER FITTING...SCREW, LEVER FITTING
-
495607-05100-00 ...NUT, U...NUT, U
-
55YR-H3980-20-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
698507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
798507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
85YR-H3976-00-00 SWITCH, HANDLE 1SWITCH, HANDLE 1
-
95YR-H3980-10-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
105FJ-H3922-10-00 LEVER 2LEVER 2
-
1190109-06577-00 BOLTBOLT
-
1295607-06100-00 NUT, UNUT, U
-
1390501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
