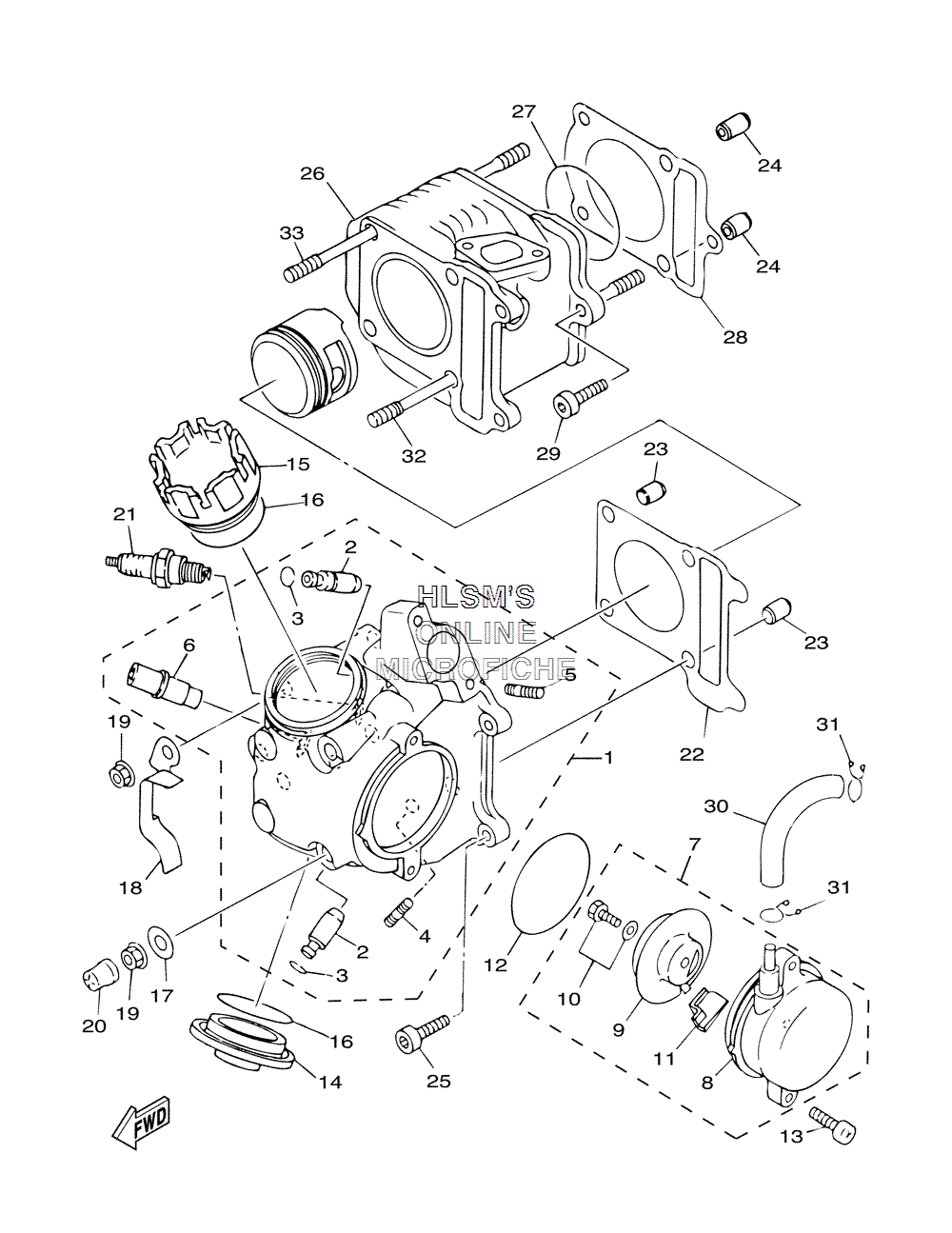

CYLINDER W/ HEAD ASSY. для Yamaha VINO 125 - 2005 года выпуска`
-
№АртикулНазвание
-
14CW-E1102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24CW-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
393440-10153-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
43UH-E4651-01-00 ...BOLT...BOLT
-
595617-06625-00 ...BOLT, STUD...BOLT, STUD
-
64CW-E4871-00-00 ...PIPE 1...PIPE 1
-
74CW-E1160-00-00 BREATHER ASSYBREATHER ASSY
-
84CW-E1185-00-00 ...COVER, CYLINDER HEAD SIDE 1...COVER, CYLINDER HEAD SIDE 1
-
94CW-E1165-00-00 ...PLATE, BREATHER...PLATE, BREATHER
-
1097527-06512-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
114CW-E1155-00-00 ...SEAL, LABYRINTH...SEAL, LABYRINTH
-
1293210-628B6-00 O-RINGO-RING
-
139850L-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
143KW-E1186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
154CW-E1187-00-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
1693210-448C2-00 O-RINGO-RING
-
1790201-08366-00 WASHER, PLATEWASHER, PLATE
-
184CW-E2279-00-00 PLATEPLATE
-
199570L-08500-00 NUT, FLANGENUT, FLANGE
-
204CW-F5335-00-00 CAPCAP
-
2194700-00840-00 PLUG, SPARK (NGK CR7E)PLUG, SPARK (NGK CR7E)
-
224CW-E1181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
2391810-14807-00 PIN, DOWELPIN, DOWEL
-
2491810-14807-00 PIN, DOWELPIN, DOWEL
-
259131L-06025-00 BOLTBOLT
-
264CW-E1310-11-00 CYLINDERCYLINDER
-
2793210-568B5-00 O-RINGO-RING
-
284CW-E1351-01-00 GASKET, CYLINDERGASKET, CYLINDER
-
299131L-06025-00 BOLTBOLT
-
305NW-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
3190467-13042-00 CLIP, SCISSORCLIP, SCISSOR
-
3290116-08819-00 BOLT, STUDBOLT, STUD
-
3390116-08817-00 BOLT, STUDBOLT, STUD
