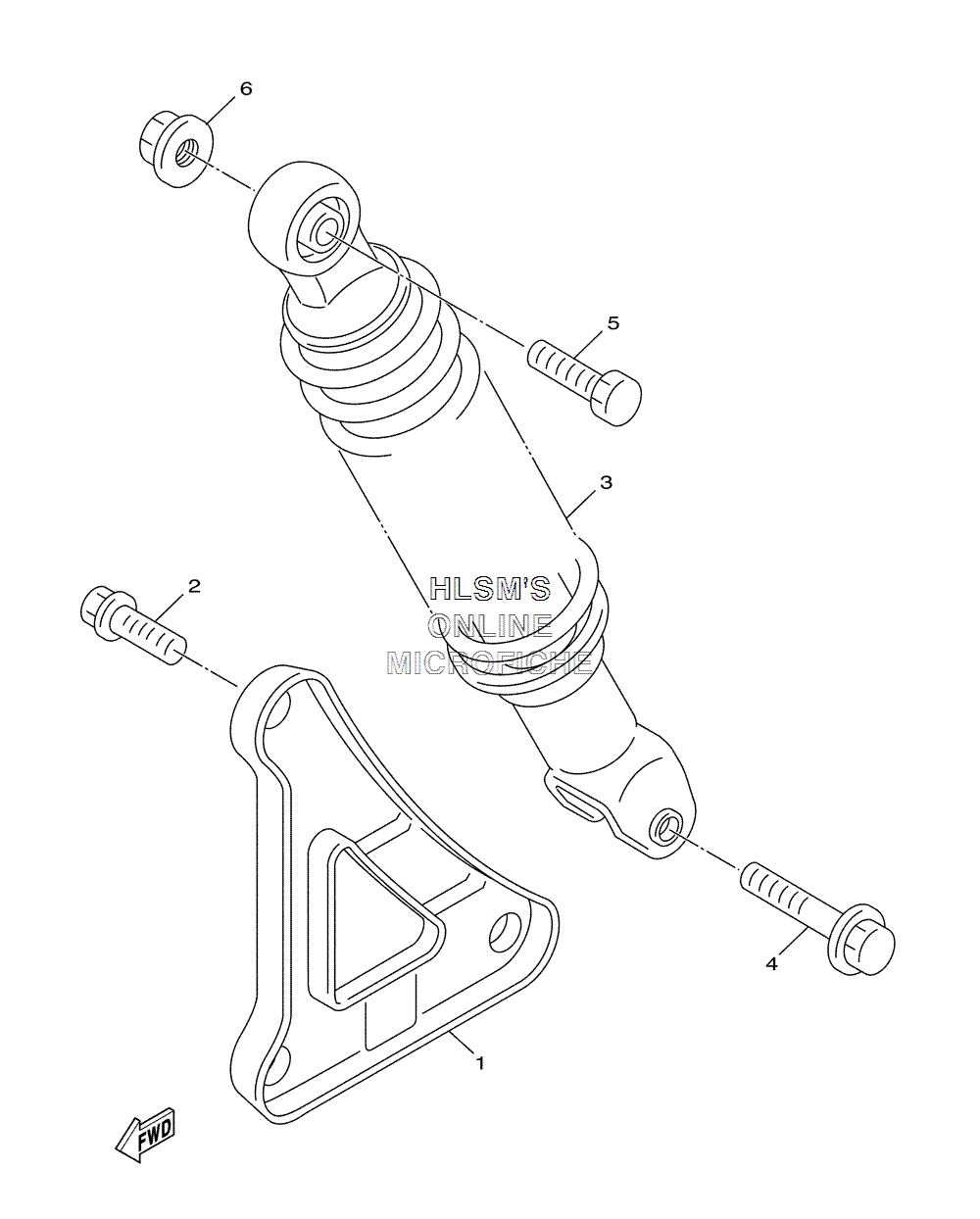

SUSPENSION - REAR ARM W/ SHOCK для Yamaha VINO 125 - 2005 года выпуска`
-
№АртикулНазвание
-
15NN-F2110-00-00 REAR ARM COMP.REAR ARM COMP.
-
295817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
35YR-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
490105-08121-00 BOLT, FLANGEBOLT, FLANGE
-
590101-10875-00 BOLTBOLT
-
695707-10500-00 NUT, FLANGENUT, FLANGE
