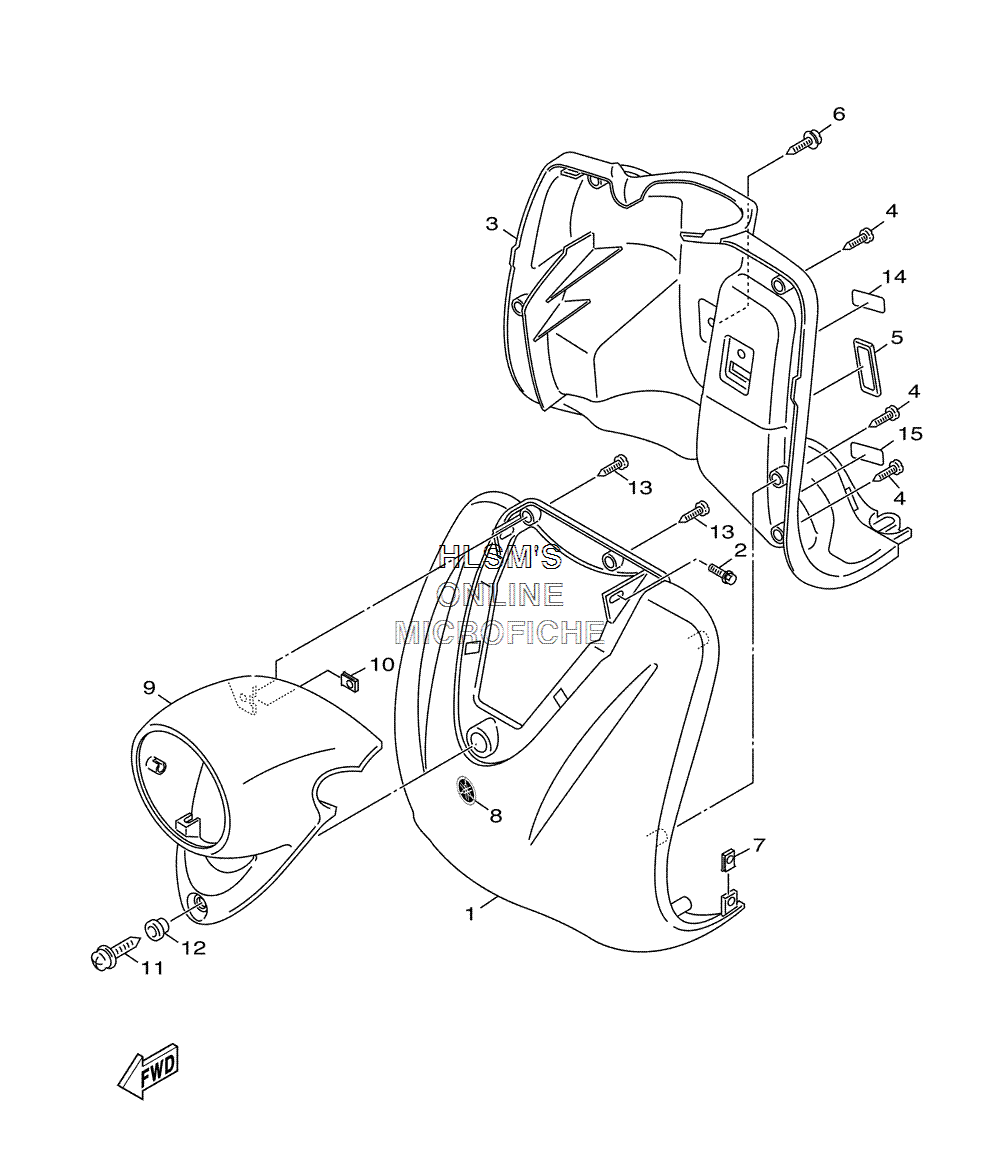

COWLING W/ LEG SHIELD для Yamaha VINO 125 - 2005 года выпуска`
-
№АртикулНазвание
-
15YR-F8311-00-P2 LEG SHIELD 1 (DPRC3)LEG SHIELD 1 (DPRC3)
-
15YR-F8311-00-WL LEG SHIELD 1 (STDS)LEG SHIELD 1 (STDS)
-
290119-06117-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
35JS-F8312-42-00 LEG SHIELD 2LEG SHIELD 2
-
497707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
55FM-F8349-00-00 CAP (BLACK & SILVER)CAP (BLACK & SILVER)
-
690159-06812-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
790183-05807-00 NUT, SPRINGNUT, SPRING
-
85YR-F8315-00-00 EMBLEMEMBLEM
-
95YR-H4144-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
1090183-05807-00 NUT, SPRINGNUT, SPRING
-
1190159-06822-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1290387-068G5-00 COLLARCOLLAR
-
1397707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
145YR-F1668-00-00 LABEL, TIRELABEL, TIRE
-
155PJ-F118K-00-00 LABEL, CAUTIONLABEL, CAUTION
