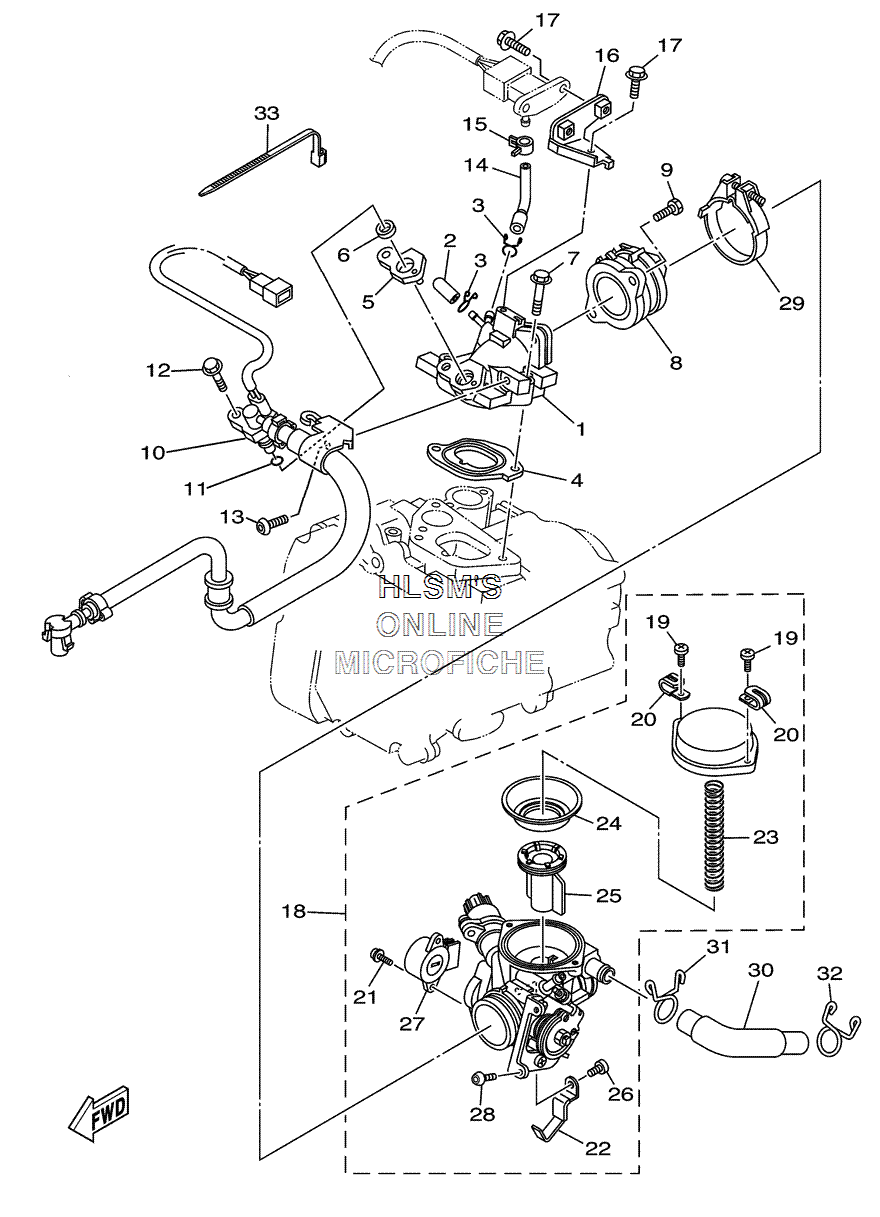

THROTTLE BODY ASSY W/ INTAKE для Yamaha MAJESTY - 2005 года выпуска`
-
№АртикулНазвание
-
15RU-13585-00-00 MANIFOLDMANIFOLD
-
25PX-13569-00-00 PLUG, BLINDPLUG, BLIND
-
390467-08075-00 CLIP, SCISSORCLIP, SCISSOR
-
45RU-13595-00-00 JOINTJOINT
-
55RU-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
690430-09005-00 GASKETGASKET
-
795027-06035-00 BOLT, FLANGEBOLT, FLANGE
-
85RU-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
997027-06020-00 BOLTBOLT
-
105RU-13930-00-00 PIPE INLET ASSY.PIPE INLET ASSY.
-
115CA-14147-00-00 ...O-RING...O-RING
-
1290105-06059-00 BOLT, FLANGEBOLT, FLANGE
-
1392017-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
145RU-13895-00-00 HOSE, AIRHOSE, AIR
-
1590467-07138-00 CLIPCLIP
-
165RU-14291-00-00 BRACKET 1BRACKET 1
-
1795027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
185RU-13750-10-00 THROTTLE BODY ASSY.THROTTLE BODY ASSY.
-
195LB-14216-00-00 ...SCREW...SCREW
-
204KL-14415-00-00 ...HOLDER, WIRE...HOLDER, WIRE
-
215CA-14216-00-00 ...SCREW...SCREW
-
225LP-15484-00-00 ...CLAMP 2...CLAMP 2
-
235RU-14286-00-00 ...SPRING...SPRING
-
245RU-14368-00-00 ...DIAPHRAGM ASSY. 1...DIAPHRAGM ASSY. 1
-
255RU-14313-00-00 ...SUCTION PISTON...SUCTION PISTON
-
265LB-14216-00-00 ...SCREW...SCREW
-
275RU-85885-00-00 ...THROTTLE SENSOR ASSY....THROTTLE SENSOR ASSY.
-
2892017-05012-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2990450-57005-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
305RU-13892-00-00 HOSE, AIR 2HOSE, AIR 2
-
3190467-18196-00 CLIPCLIP
-
3290467-20030-00 CLIPCLIP
-
3390464-13073-00 CLAMPCLAMP
