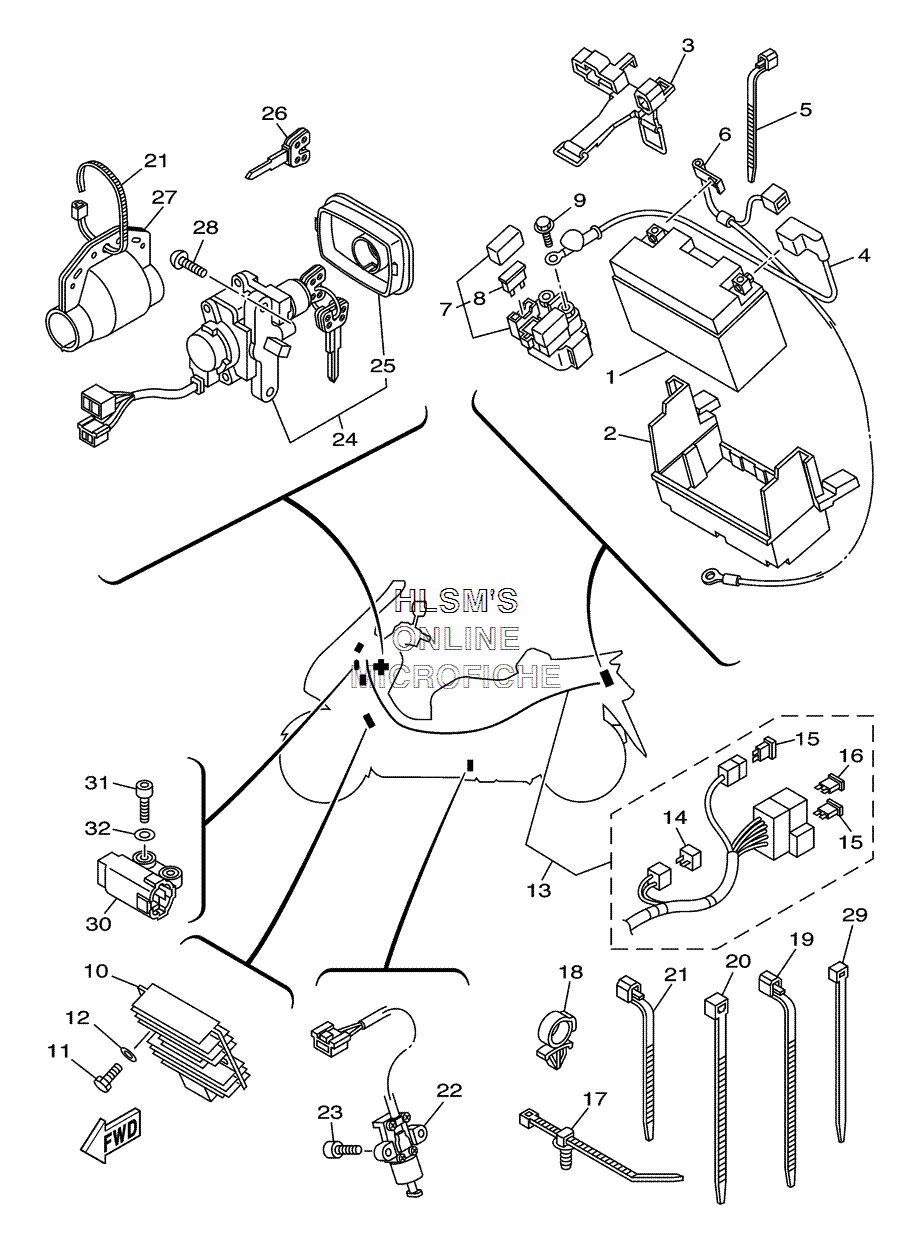

ELECTRICAL для Yamaha MAJESTY - 2005 года выпуска`
-
№АртикулНазвание
-
15GJ-82100-01-00 BATTERY ASSY. (YT9B-4)BATTERY ASSY. (YT9B-4)
-
25RU-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
35RU-82131-00-00 BAND, BATTERYBAND, BATTERY
-
45RU-82115-00-00 WIRE, PLUS LEAD 1WIRE, PLUS LEAD 1
-
590464-13073-00 CLAMPCLAMP
-
65RU-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
75RU-81940-02-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
85EA-82151-00-00 ...FUSE (40A-BL)...FUSE (40A-BL)
-
995027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
104XY-81960-00-00 RECTIFIER AND REGULATOR ASSY.RECTIFIER AND REGULATOR ASSY.
-
1197007-06030-00 BOLTBOLT
-
1292907-06600-00 WASHER, PLATEWASHER, PLATE
-
135RU-82590-30-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
144WA-81980-00-00 ...DIODE ASSY....DIODE ASSY.
-
155JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
165JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
175RU-12491-00-00 CLAMP 1CLAMP 1
-
1890464-18246-00 CLAMPCLAMP
-
1990464-15195-00 CLAMPCLAMP
-
203MA-82591-00-00 BANDBAND
-
2190464-13073-00 CLAMPCLAMP
-
225RU-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2390110-05227-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
245RU-82501-20-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
255SJ-82552-20-00 ...CAP, SWITCH...CAP, SWITCH
-
264BH-82511-09-00 BLANK KEYBLANK KEY
-
275RU-8252U-00-00 COVERCOVER
-
2890149-06002-00 SCREWSCREW
-
295Y9-12491-00-00 CLAMP 1CLAMP 1
-
305VU-82576-00-00 LEAN ANGLE SENSORLEAN ANGLE SENSOR
-
3191317-04025-00 BOLTBOLT
-
3290201-04325-00 WASHER, PLATEWASHER, PLATE
