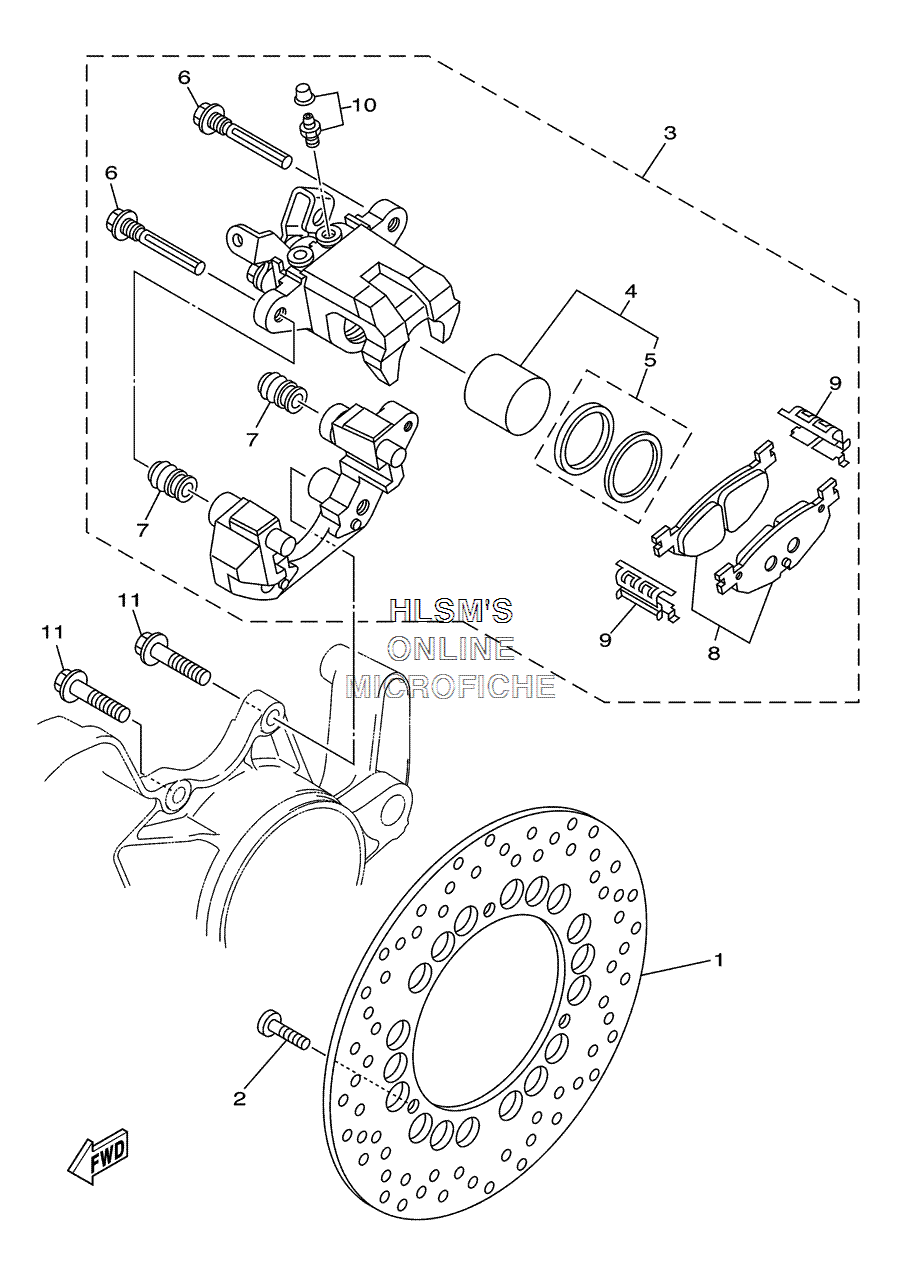

BRAKE - REAR CALIPER для Yamaha MAJESTY - 2005 года выпуска`
-
№АртикулНазвание
-
15RU-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-083G4-00 BOLTBOLT
-
35RU-2580W-01-00 CALIPER ASSY., REAR 2CALIPER ASSY., REAR 2
-
45VU-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
55GJ-W0047-01-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
65PW-25914-00-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
85VU-W0046-01-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
94TT-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
105GM-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
1190109-100G0-00 BOLTBOLT
Все узлы модели:
- AIR CLEANER ASSY.
- BRAKE - FRONT CALIPER
- BRAKE - MASTER CYLINDER FRONT AND REAR
- • BRAKE - REAR CALIPER
- CAMSHAFT W/ CHAIN
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP W/ CLEANER
- RADIATOR W/ HOSES
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM W/ SHOCK
- TAILLIGHT ASSY.
- THROTTLE BODY ASSY W/ INTAKE
- TRANSMISSION
- VALVE ASSY. W/ CAM CHAIN ASSY.
- WATER PUMP ASSY.
- WHEEL - FRONT
- WHEEL - REAR
