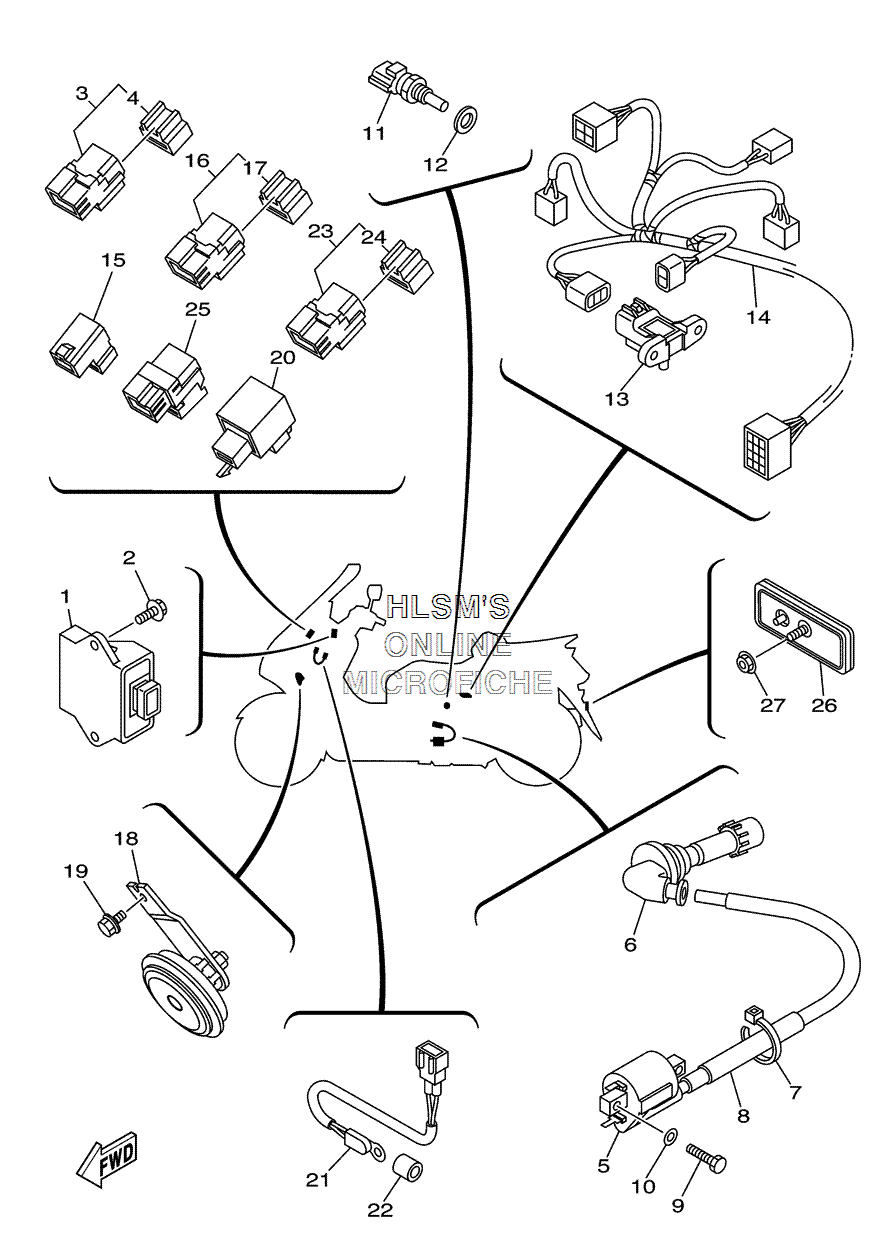

ELECTRICAL 2 для Yamaha MAJESTY - 2005 года выпуска`
-
№АртикулНазвание
-
15RU-8591A-30-00 ENGINE CONTROL UNIT ASSY.ENGINE CONTROL UNIT ASSY.
-
295807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
35EA-81950-20-00 RELAY ASSY.RELAY ASSY.
-
45EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
55RU-82310-00-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
65RU-82370-00-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
790465-10098-00 CLAMPCLAMP
-
85RU-82353-00-00 HOSEHOSE
-
997007-06016-00 BOLTBOLT
-
1092907-06600-00 WASHER, PLATEWASHER, PLATE
-
115PS-85790-00-00 THERMOSENSOR ASSY.THERMOSENSOR ASSY.
-
1290430-12202-00 GASKETGASKET
-
135PS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
145RU-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
153GD-81950-01-00 RELAY ASSY.RELAY ASSY.
-
165EA-81950-20-00 RELAY ASSY.RELAY ASSY.
-
175EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
185RU-83371-01-00 HORNHORN
-
1995827-06010-00 BOLT, FLANGEBOLT, FLANGE
-
203GM-83350-01-00 FLASHER RELAY ASSY.FLASHER RELAY ASSY.
-
215RU-85700-00-00 THERMISTOR ASSY.THERMISTOR ASSY.
-
225SJ-83535-00-00 TUBETUBE
-
235EA-81950-20-00 RELAY ASSY.RELAY ASSY.
-
245EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
255DM-81950-00-00 RELAY ASSY.RELAY ASSY.
-
263Y6-85130-02-00 REAR REFLECTOR ASSY.REAR REFLECTOR ASSY.
