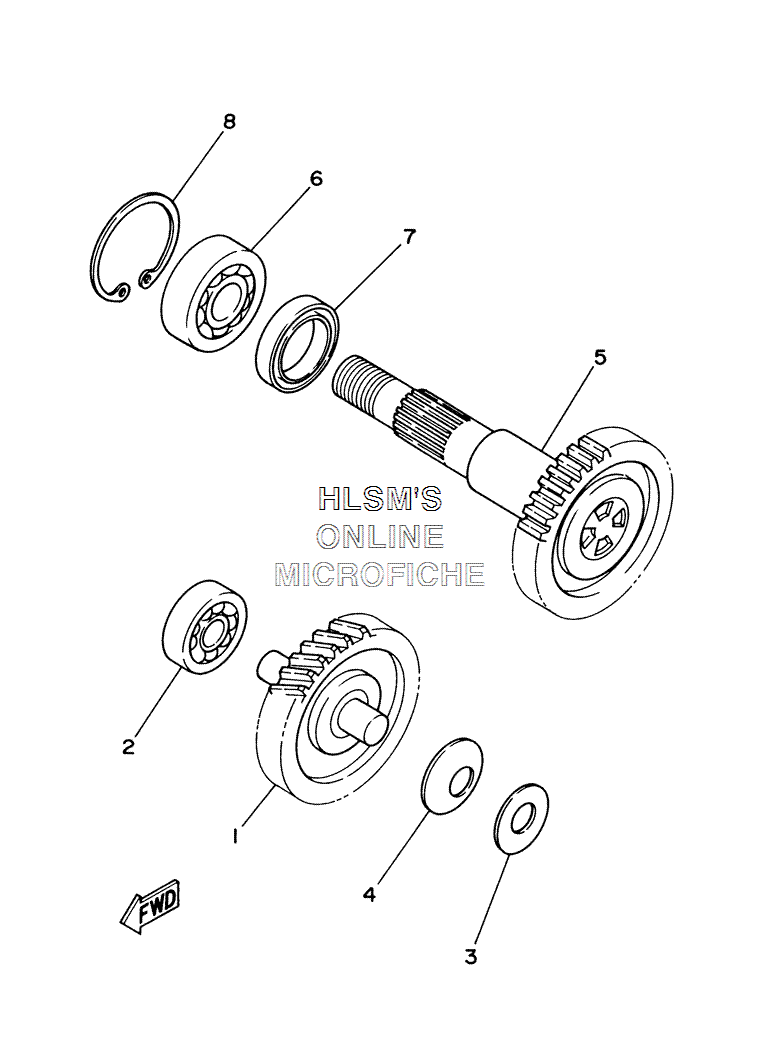

TRANSMISSION для Yamaha VINO - 2002 года выпуска`
-
№АртикулНазвание
-
13RY-17410-10-00 MAIN AXLE COMPLETE (48/13T)MAIN AXLE COMPLETE (48/13T)
-
293306-20012-00 BEARINGBEARING
-
390201-123K4-00 WASHER, PLATEWASHER, PLATE
-
490208-12049-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
54JP-17420-10-00 DRIVE AXLE ASSY (42T)DRIVE AXLE ASSY (42T)
-
693306-20314-00 BEARING (B6203)BEARING (B6203)
-
793102-22082-00 OIL SEALOIL SEAL
-
893420-40064-00 CIRCLIP, R-TYPECIRCLIP, R-TYPE
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- AIR SHROUD W/ FAN
- CARBURETOR ASSY.
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- OIL TANK
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR SHOCK
- TAILLIGHT ASSY.
- • TRANSMISSION
- WHEEL - FRONT
- WHEEL - REAR
