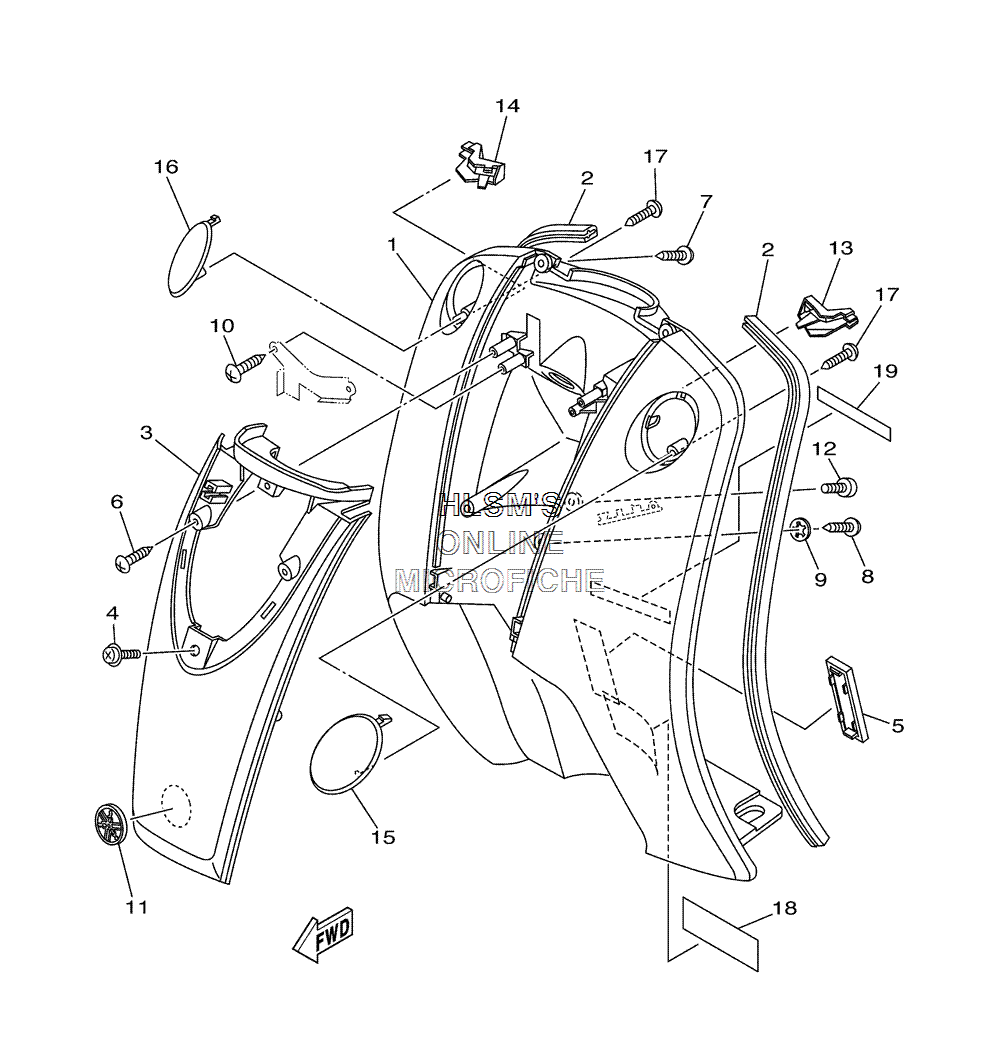

COWLING W/ LEG SHIELD для Yamaha VINO - 2002 года выпуска`
-
№АртикулНазвание
-
15AU-28311-01-P2 LEG SHIELD 1 (VDBC4)LEG SHIELD 1 (VDBC4)
-
15AU-28311-01-P4 LEG SHIELD 1 (DRMD)LEG SHIELD 1 (DRMD)
-
25AU-28345-01-00 MOLE 1MOLE 1
-
35LY-23391-00-P2 PANEL, FRONT (VDBC4)PANEL, FRONT (VDBC4)
-
35LY-23391-00-P1 PANEL, FRONT (DRMD)PANEL, FRONT (DRMD)
-
490159-06178-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
514T-28349-J0-00 CAP (BLUE FOR VDBC4)CAP (BLUE FOR VDBC4)
-
514T-28349-F0-00 CAP (RED FOR DRMD)CAP (RED FOR DRMD)
-
697707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
797707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
897707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
990209-05347-00 WASHERWASHER
-
1097707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
115AU-2157B-00-00 EMBLEM (TUNING FORK MARK)EMBLEM (TUNING FORK MARK)
-
1298904-06012-00 SCREW, BINDSCREW, BIND
-
135AU-2842M-00-00 COVER 1COVER 1
-
145AU-2842N-00-00 COVER 2COVER 2
-
155LY-2842M-00-P2 COVER 1 (VDBC4)COVER 1 (VDBC4)
-
155LY-2842M-00-P1 COVER 1 (DRMD)COVER 1 (DRMD)
-
165LY-2842N-00-P2 COVER 2 (VDBC4)COVER 2 (VDBC4)
-
165LY-2842N-00-P1 COVER 2 (DRMD)COVER 2 (DRMD)
-
1797707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
183SL-2118K-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
195LY-2179X-10-00 PLATE, EPAPLATE, EPA
