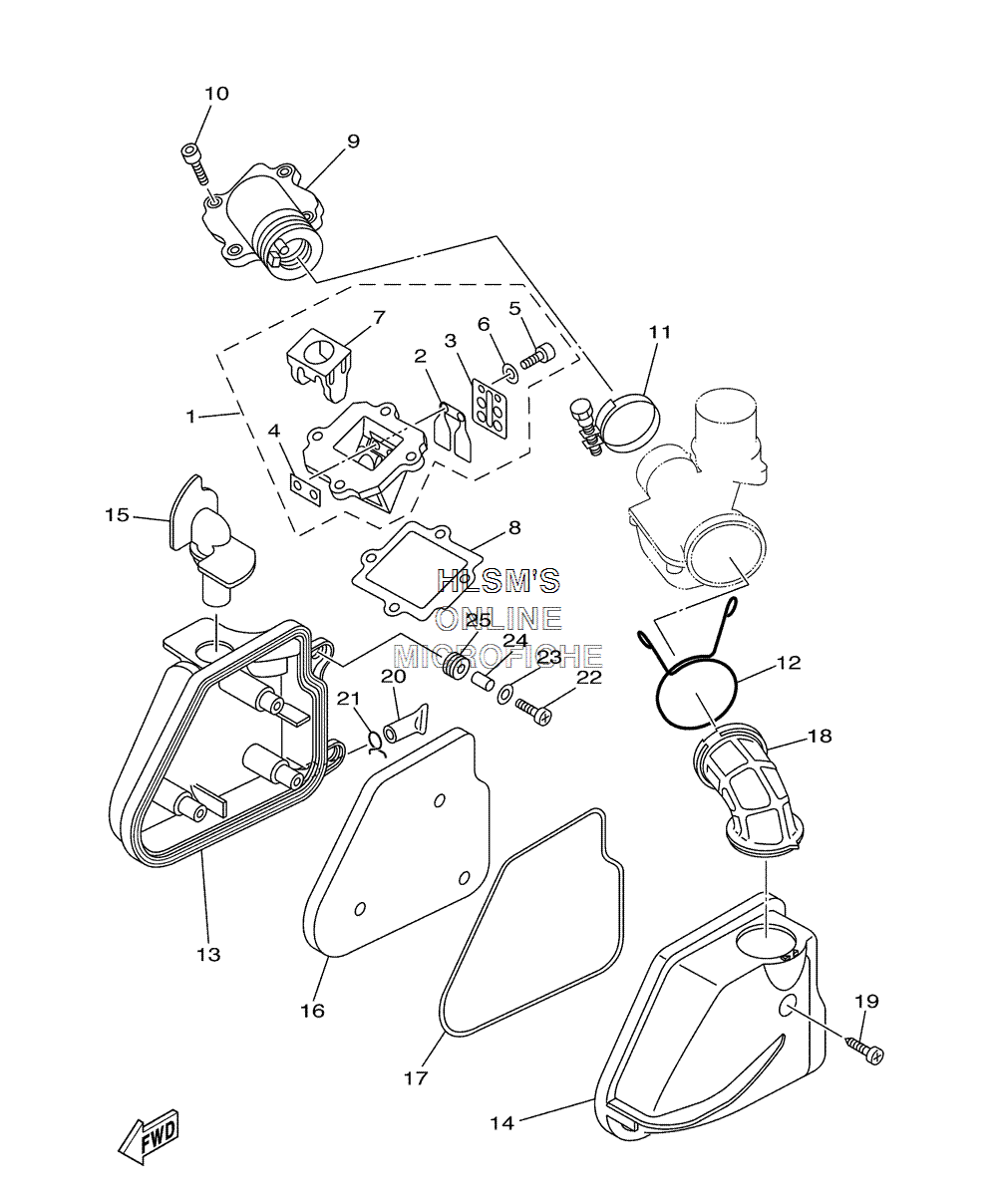

AIR CLEANER ASSY. W/ INTAKE для Yamaha VINO - 2002 года выпуска`
-
№АртикулНазвание
-
15BM-13610-00-00 REED VALVE ASSYREED VALVE ASSY
-
25BM-13613-00-00 ...REED, VALVE...REED, VALVE
-
35BM-13616-00-00 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
45BM-13624-00-00 ...PLATE, REED VALVE...PLATE, REED VALVE
-
598507-03008-00 ...SCREW...SCREW
-
692907-03600-00 ...WASHER...WASHER
-
75BM-13625-00-00 ...SPACER, REED VALVE...SPACER, REED VALVE
-
85BM-13621-00-00 GASKET, VALVE SEATGASKET, VALVE SEAT
-
95BM-13555-00-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
1091317-06020-00 BOLTBOLT
-
1190450-32081-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1290467-24140-00 CLIP, SCISSORCLIP, SCISSOR
-
135BM-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
145BM-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
155BM-14437-00-00 DUCTDUCT
-
165BM-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
173KJ-14452-30-00 SEALSEAL
-
184JC-14453-01-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1997707-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
2034X-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
2190467-11106-00 CLIPCLIP
-
2298507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392907-06600-00 WASHER, PLATEWASHER, PLATE
-
2490387-067V1-00 COLLARCOLLAR
-
2590480-12497-00 GROMMETGROMMET
