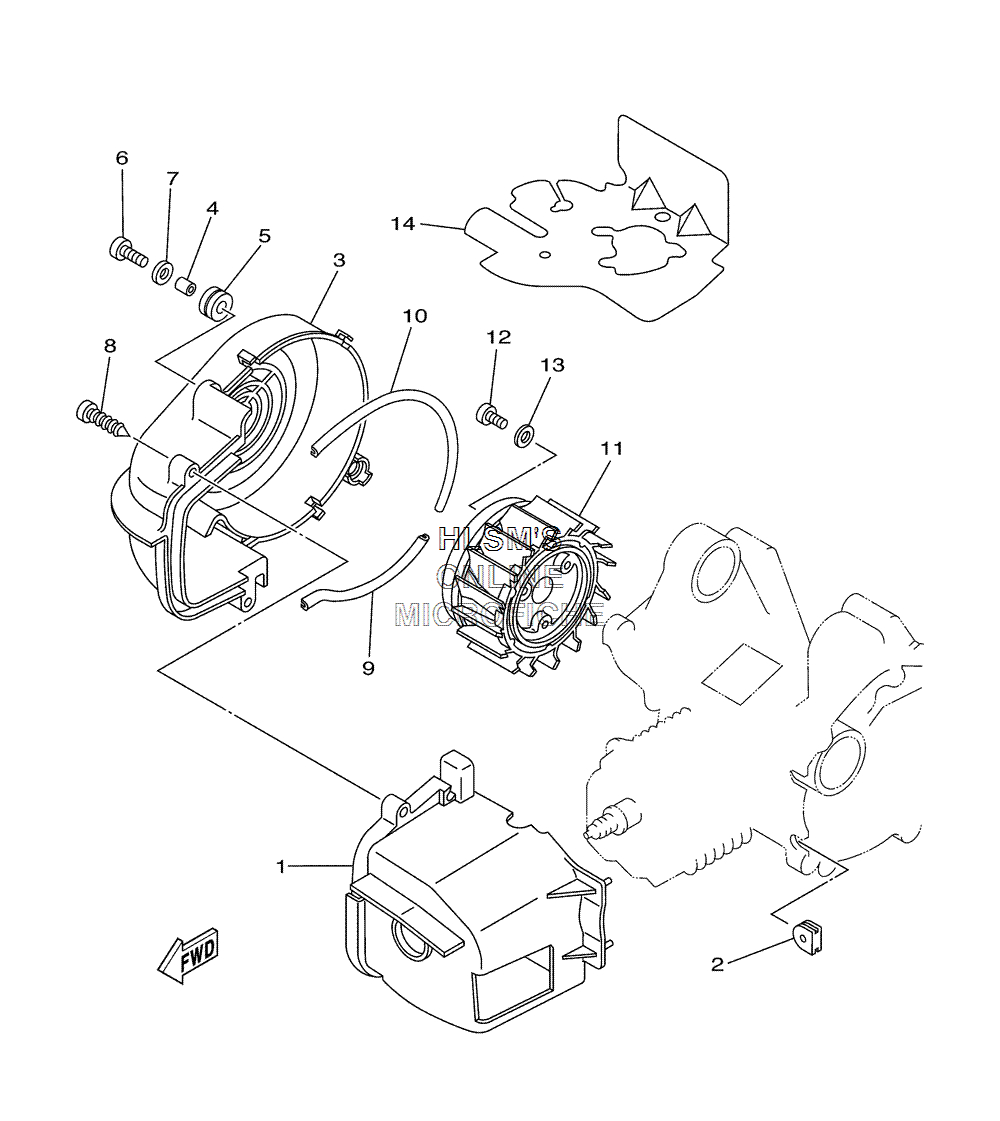

AIR SHROUD W/ FAN для Yamaha VINO - 2002 года выпуска`
-
№АртикулНазвание
-
15GD-12651-00-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
290480-10468-00 GROMMETGROMMET
-
35GD-12653-00-00 AIR SHROUD, CYLINDER 3AIR SHROUD, CYLINDER 3
-
490387-067V1-00 COLLARCOLLAR
-
590480-12497-00 GROMMETGROMMET
-
698507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
792907-06600-00 WASHER, PLATEWASHER, PLATE
-
897707-60530-00 SCREW, TAPPINGSCREW, TAPPING
-
94FW-12658-00-00 DAMPER, AIR SHROUD 1DAMPER, AIR SHROUD 1
-
104FW-12659-00-00 DAMPER, AIR SHROUD 2DAMPER, AIR SHROUD 2
-
115GD-12611-00-00 FANFAN
-
1298507-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1392907-06600-00 WASHER, PLATEWASHER, PLATE
-
144JP-12631-02-00 DEFLECTOR 1DEFLECTOR 1
