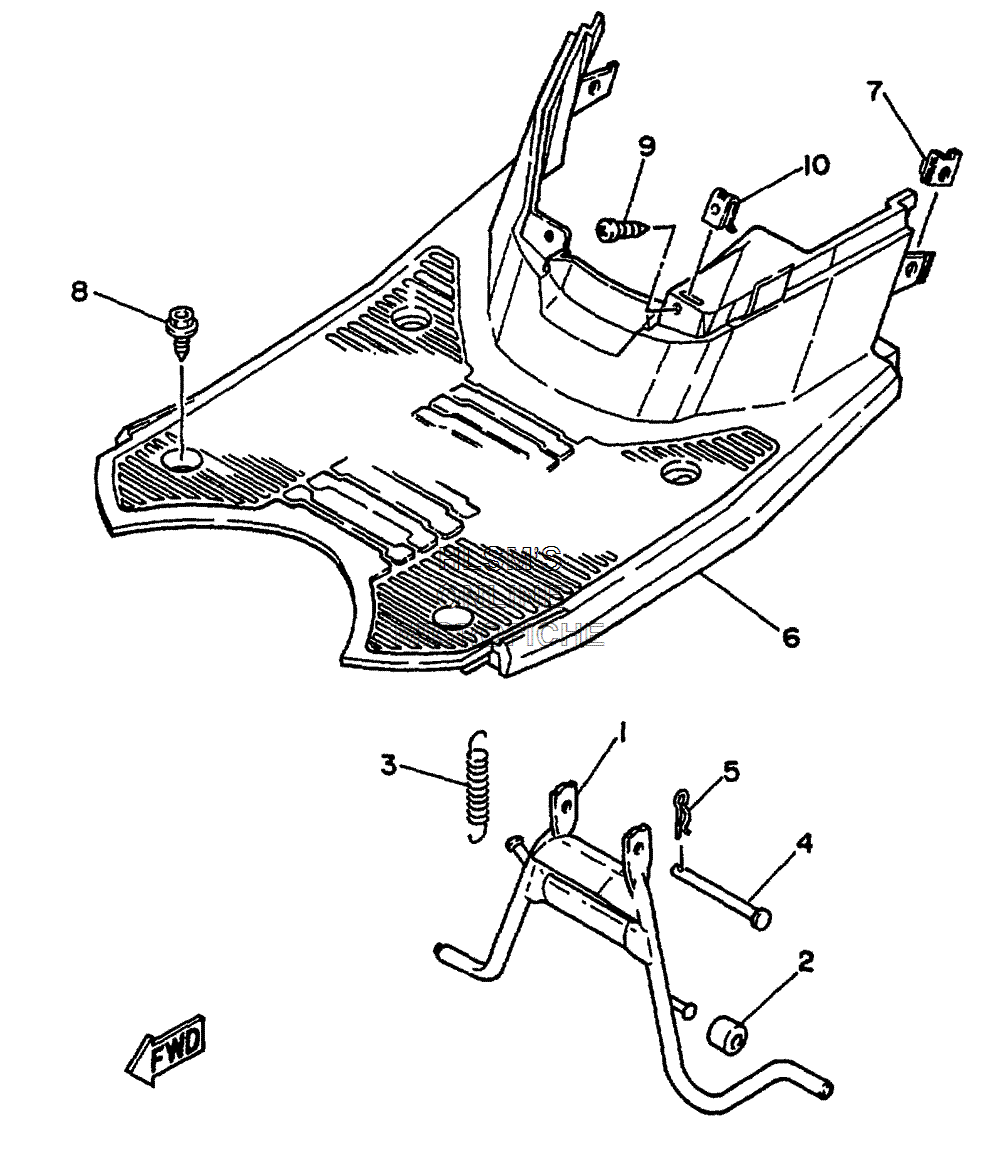

STAND W/ FOOTREST для Yamaha RIVA RAZZ - 2001 года выпуска`
-
№АртикулНазвание
-
12EK-27111-00-00 STAND, MAINSTAND, MAIN
-
290387-064A4-00 COLLARCOLLAR
-
32E9-27116-01-00 SPRING, MAIN STANDSPRING, MAIN STAND
-
490240-08121-00 PIN, CLEVISPIN, CLEVIS
-
590468-12006-00 CLIPCLIP
-
61YU-27481-40-00 BOARD, FOOTREST (RADICAL GRAY)BOARD, FOOTREST (RADICAL GRAY)
-
725G-21535-00-00 NUT 1NUT 1
-
890119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
997707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
1090183-05072-00 NUT, SPRINGNUT, SPRING
