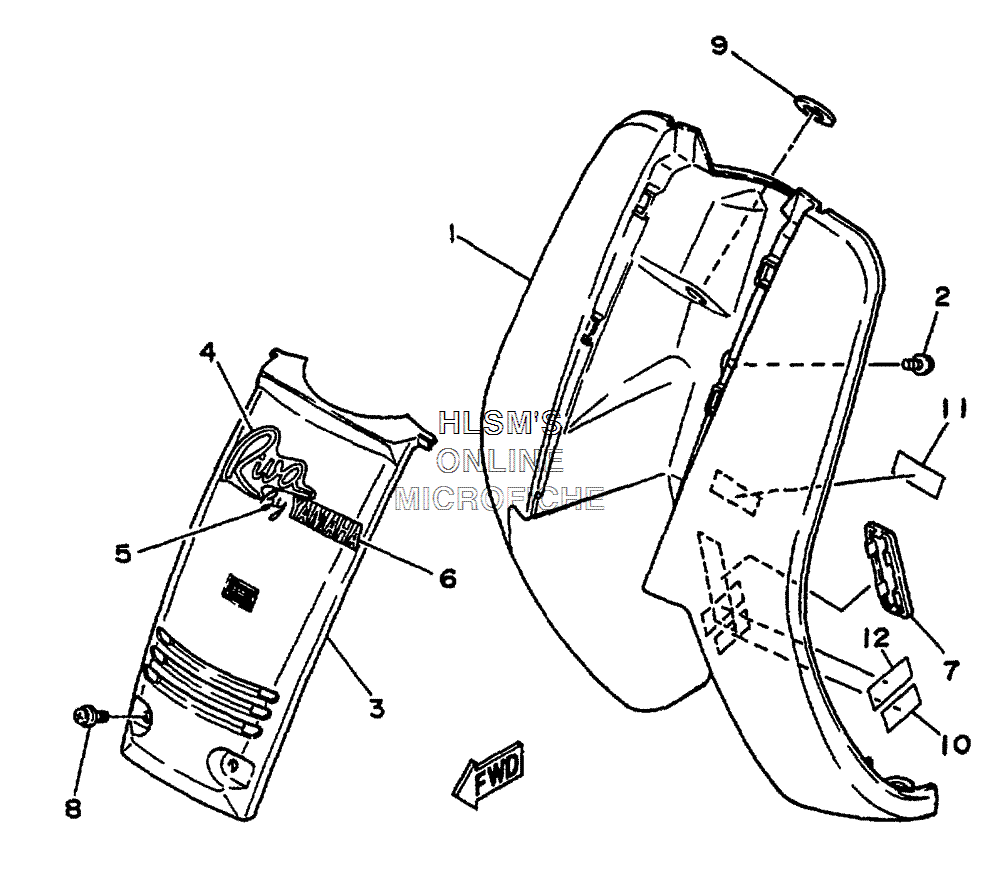

COWLING W/ LEG SHIELD для Yamaha RIVA RAZZ - 2001 года выпуска`
-
№АртикулНазвание
-
11YU-28311-01-P0 LEG SHIELD 1 (VDVC2)LEG SHIELD 1 (VDVC2)
-
11YU-28311-01-P4 LEG SHEILD 1 (DRC2)LEG SHEILD 1 (DRC2)
-
290159-06182-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
31YU-23391-00-P4 PANEL, FRONT (VDVC2)PANEL, FRONT (VDVC2)
-
31YU-28391-00-P5 PANEL, FRONT (DRC2)PANEL, FRONT (DRC2)
-
43KL-28315-01-00 EMBLEMEMBLEM
-
53KL-2839H-01-00 EMBLEM 1EMBLEM 1
-
63WF-2153E-10-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
714T-28349-F0-00 CAP (RIPE RED)CAP (RIPE RED)
-
714T-28349-J0-00 CAP (SOLID COSMIC BLUE)CAP (SOLID COSMIC BLUE)
-
890159-06178-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
93HK-82552-20-00 CAP, MAIN SWITCHCAP, MAIN SWITCH
-
103LL-21668-00-00 LABEL, TIRE PRESSURELABEL, TIRE PRESSURE
-
113EP-2179X-20-00 PLATE, EPAPLATE, EPA
-
123SL-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
