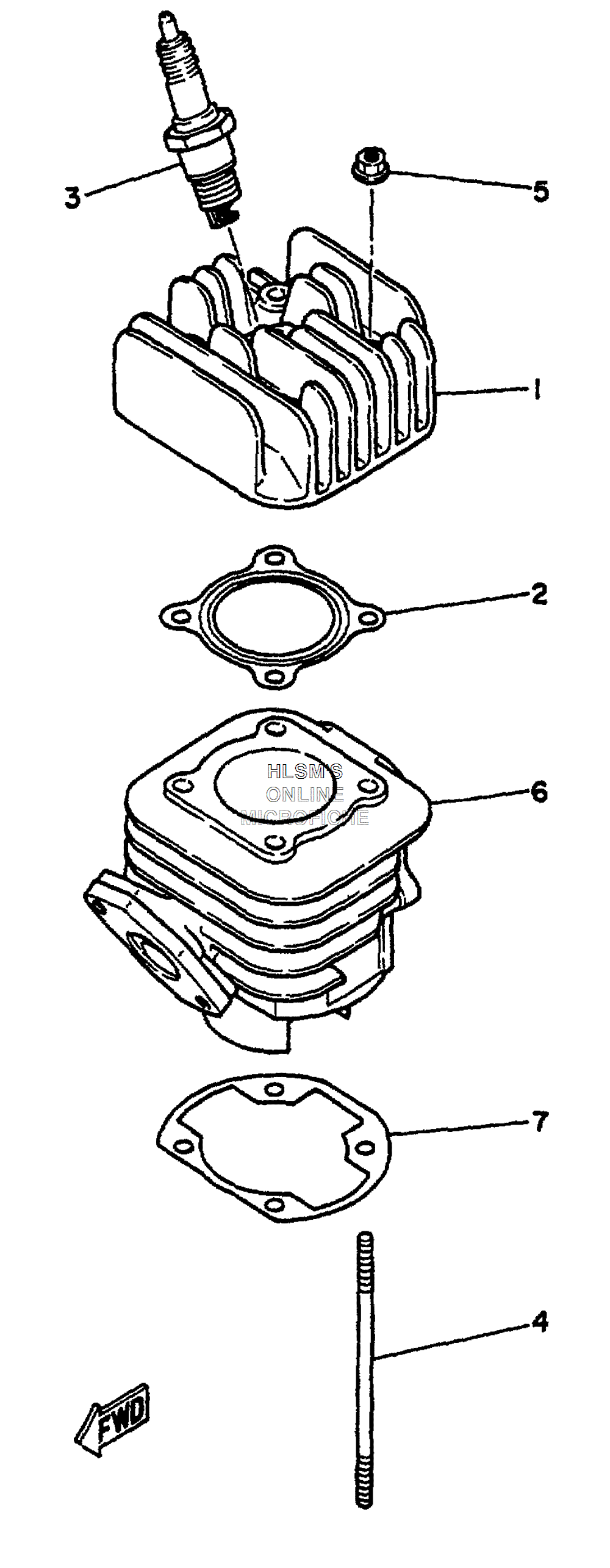

CYLINDER W/ HEAD ASSY. для Yamaha RIVA RAZZ - 2001 года выпуска`
-
№АртикулНазвание
-
12EK-11111-00-00 HEAD, CYLINDERHEAD, CYLINDER
-
2517-11181-00-00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
3NGK-BPR6H-S1-00 SPARK PLUG (NGK BPR6HS-10)SPARK PLUG (NGK BPR6HS-10)
-
490116-06418-00 BOLT, STUDBOLT, STUD
-
595707-06500-00 NUT, FLANGENUT, FLANGE
-
61YU-11311-00-00 CYLINDERCYLINDER
-
73HK-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- AIR SHROUD W/ FAN
- CARBURETOR ASSY.
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- • CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES - MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- OIL TANK
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- WHEEL - FRONT
- WHEEL - REAR
