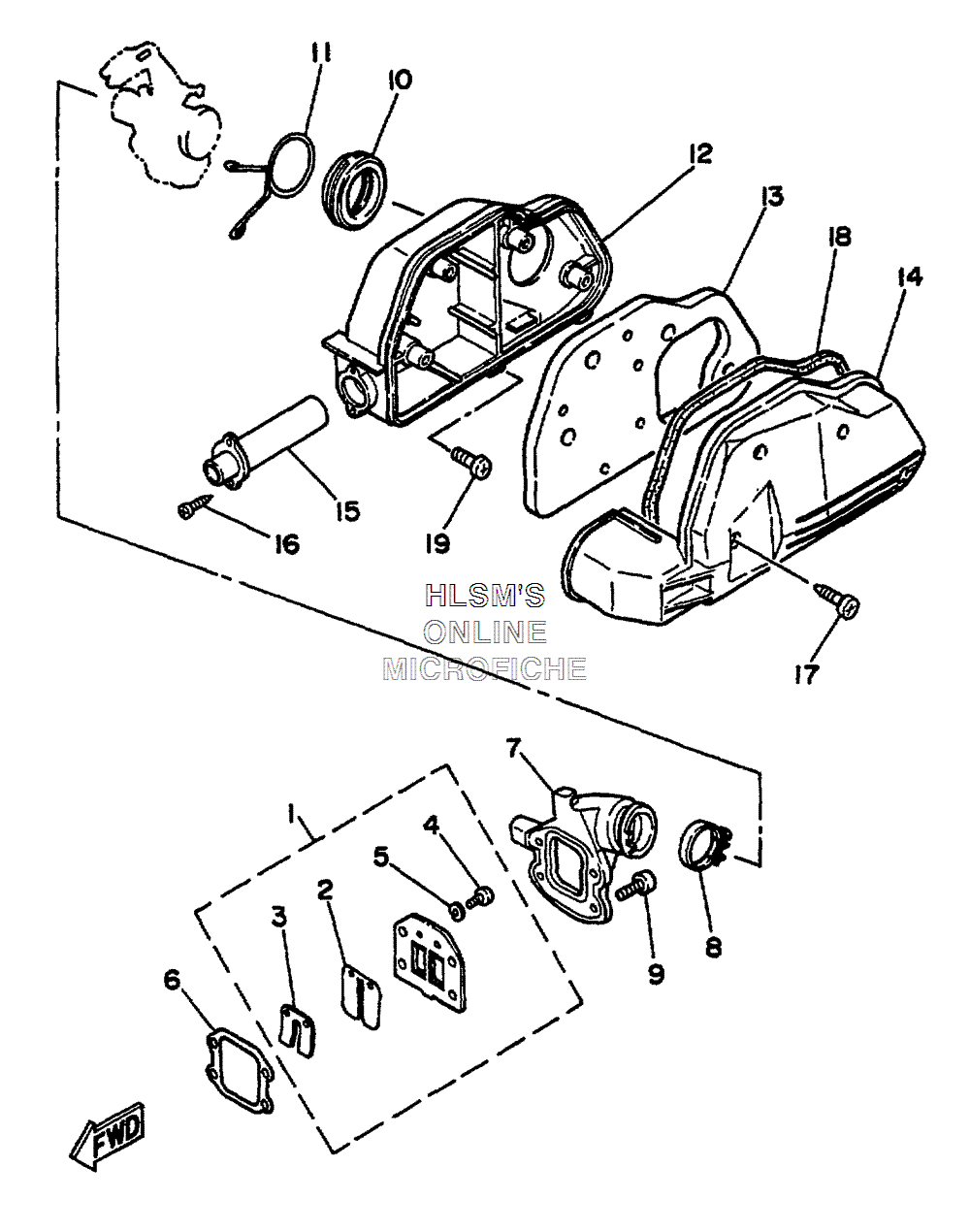

AIR CLEANER ASSY. W/ INTAKE для Yamaha RIVA RAZZ - 2001 года выпуска`
-
№АртикулНазвание
-
127V-13610-00-00 REED VALVE ASSY.REED VALVE ASSY.
-
224G-13613-00-00 ...REED, VALVE...REED, VALVE
-
327V-13616-00-00 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
498507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
592990-03100-00 ...WASHER, SPRING...WASHER, SPRING
-
63HK-13621-00-00 GASKET, VALVE SEATGASKET, VALVE SEAT
-
727V-13555-00-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
890450-32081-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
991317-06020-00 BOLTBOLT
-
103HK-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1190467-24140-00 CLIP, SCISSORCLIP, SCISSOR
-
121YU-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
131YU-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
141YU-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
151YU-14437-00-00 DUCTDUCT
-
1697780-40116-00 SCREW, TAPPINGSCREW, TAPPING
-
1797780-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
1850M-14462-00-00 SEALSEAL
-
1998517-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
