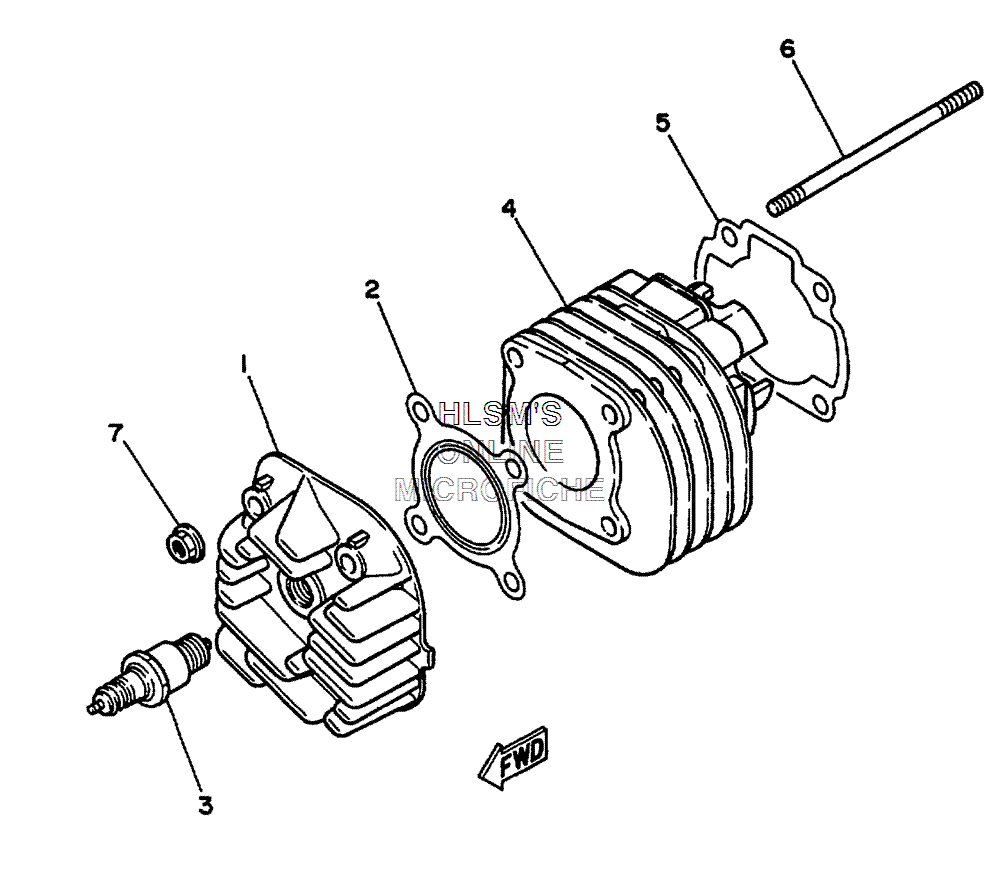

CYLINDER W/ HEAD ASSY. для Yamaha JOG - 2000 года выпуска`
-
№АртикулНазвание
-
13KJ-11111-10-00 HEAD, CYLINDERHEAD, CYLINDER
-
23KJ-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
3NGK-BR7HS-00-00 PLUG, SPARK (NGK BR7HS)PLUG, SPARK (NGK BR7HS)
-
43KJ-1131-10-00 CYLINDER 1CYLINDER 1
-
54FB-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
690116-07353-00 BOLT, STUDBOLT, STUD
-
790179-07381-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
