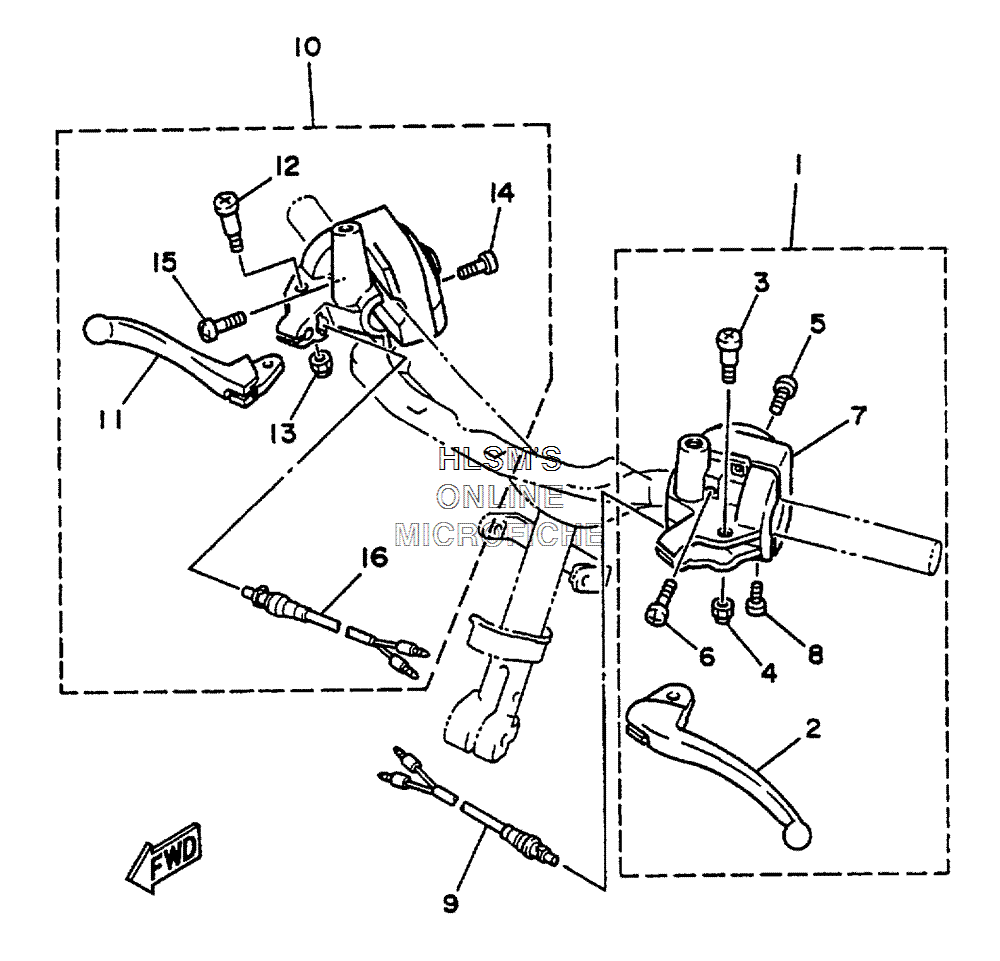

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha JOG - 2000 года выпуска`
-
№АртикулНазвание
-
120G-W8291-31-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
214T-83912-01-00 ...LEVER L...LEVER L
-
390149-05119-00 ...SCREW, SPEC'L SHAPE...SCREW, SPEC'L SHAPE
-
495617-05100-00 ...NUT, U...NUT, U
-
598517-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
698507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
713T-83973-30-00 ...SWITCH, HANDLE 3...SWITCH, HANDLE 3
-
898906-04010-00 ...SCREW, BLIND...SCREW, BLIND
-
93E1-83980-02-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
103KL-82920-01-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
1114T-83922-01-00 ...LEVER R...LEVER R
-
1290149-05119-00 ...SCREW, SPEC'L SHAPE...SCREW, SPEC'L SHAPE
-
1395617-05100-00 ...NUT, U...NUT, U
-
1498517-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1598507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
163E1-83980-02-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
