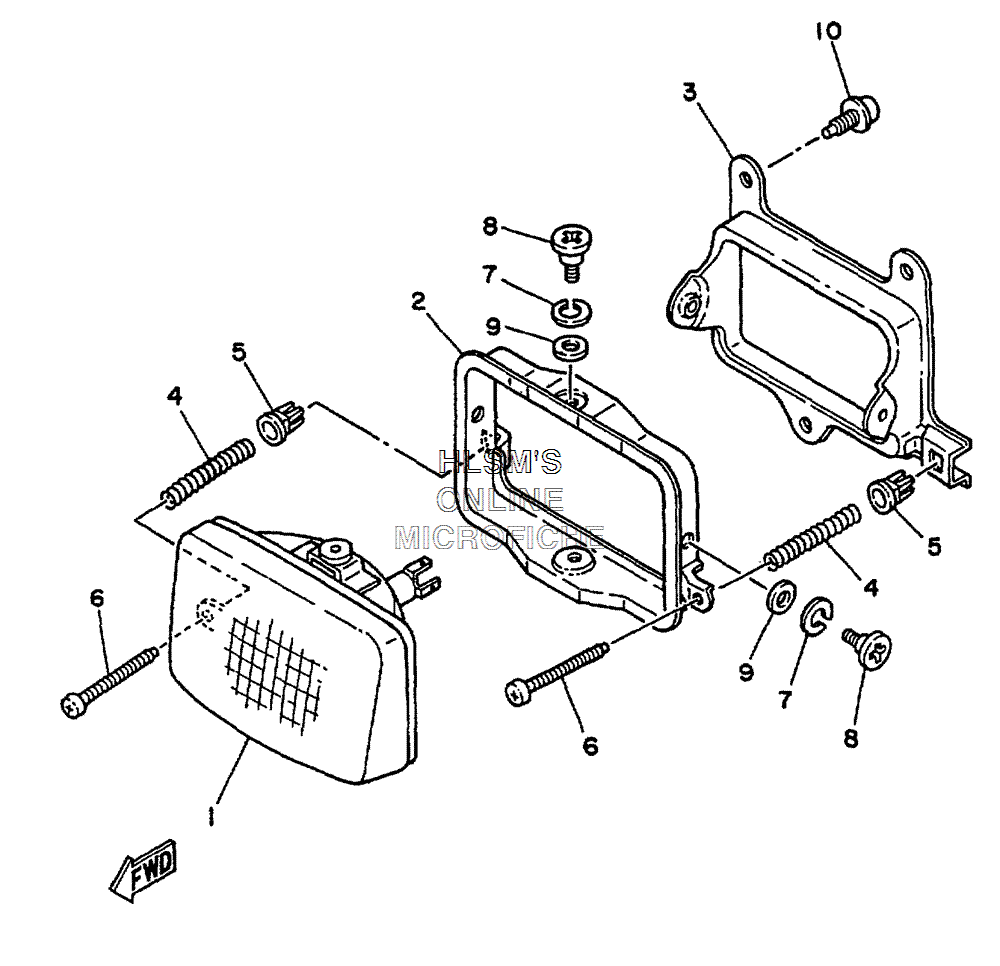

HEADLIGHT ASSY. для Yamaha JOG - 2000 года выпуска
-
№АртикулНазвание
-
12EK-84320-00-00 LENS ASSYLENS ASSY
-
22EK-84395-00-00 RING, RETAININGRING, RETAINING
-
32EK-84394-00-00 RING, MOUNTINGRING, MOUNTING
-
42EK-84132-00-00 SPRING, SCREWSPRING, SCREW
-
550W-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
61M1-84524-60-00 SCREW, LENS FITTINGSCREW, LENS FITTING
-
792990-05100-00 WASHER, SPRINGWASHER, SPRING
-
850W-84333-00-00 SCREWSCREW
-
992990-05600-00 WASHER, PLATEWASHER, PLATE
-
1090159-05089-00 SCREW, WITH WASHERSCREW, WITH WASHER
