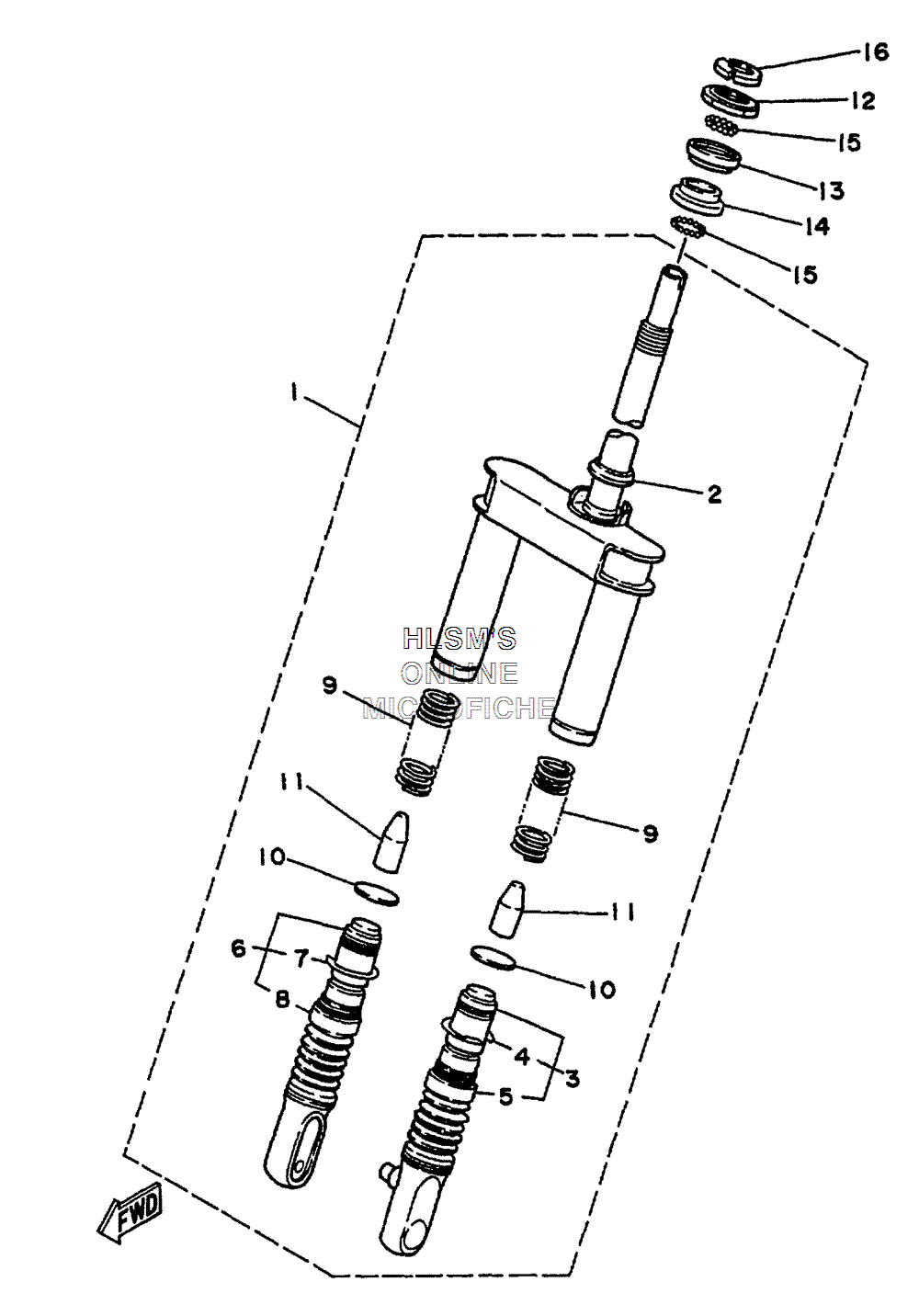

SUSPENSION - FRONT FORK для Yamaha JOG - 2000 года выпуска`
-
№АртикулНазвание
-
13KJ-23100-02-00 FRONT FORK ASSEMBLYFRONT FORK ASSEMBLY
-
23YJ-23414-00-00 ...RACE, BALL 4...RACE, BALL 4
-
33YJ-23414-00-00 ...RACE, BALL 4...RACE, BALL 4
-
493450-30057-00 ......CIRCLIP......CIRCLIP
-
53YJ-23191-00-00 ......BOOT......BOOT
-
63YJ-23120-00-00 ...INNER TUBE COMP (2)...INNER TUBE COMP (2)
-
793450-30057-00 ......CIRCLIP......CIRCLIP
-
83YJ-23191-00-00 ......BOOT......BOOT
-
93KJ-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
102E9-23143-00-00 ...SEAT, SPRING LOWER...SEAT, SPRING LOWER
-
111RN-23195-00-00 ...RUBBER...RUBBER
-
123KJ-23411-01-00 RACE, BALL 1RACE, BALL 1
-
132E9-23412-00-00 RACE, BALL 2RACE, BALL 2
-
142E9-23413-01-00 RACE, BALL 3RACE, BALL 3
-
1593505-32002-00 BALL 5/32BALL 5/32
-
162E9-23454-00-00 NUT, FITTING 2NUT, FITTING 2
