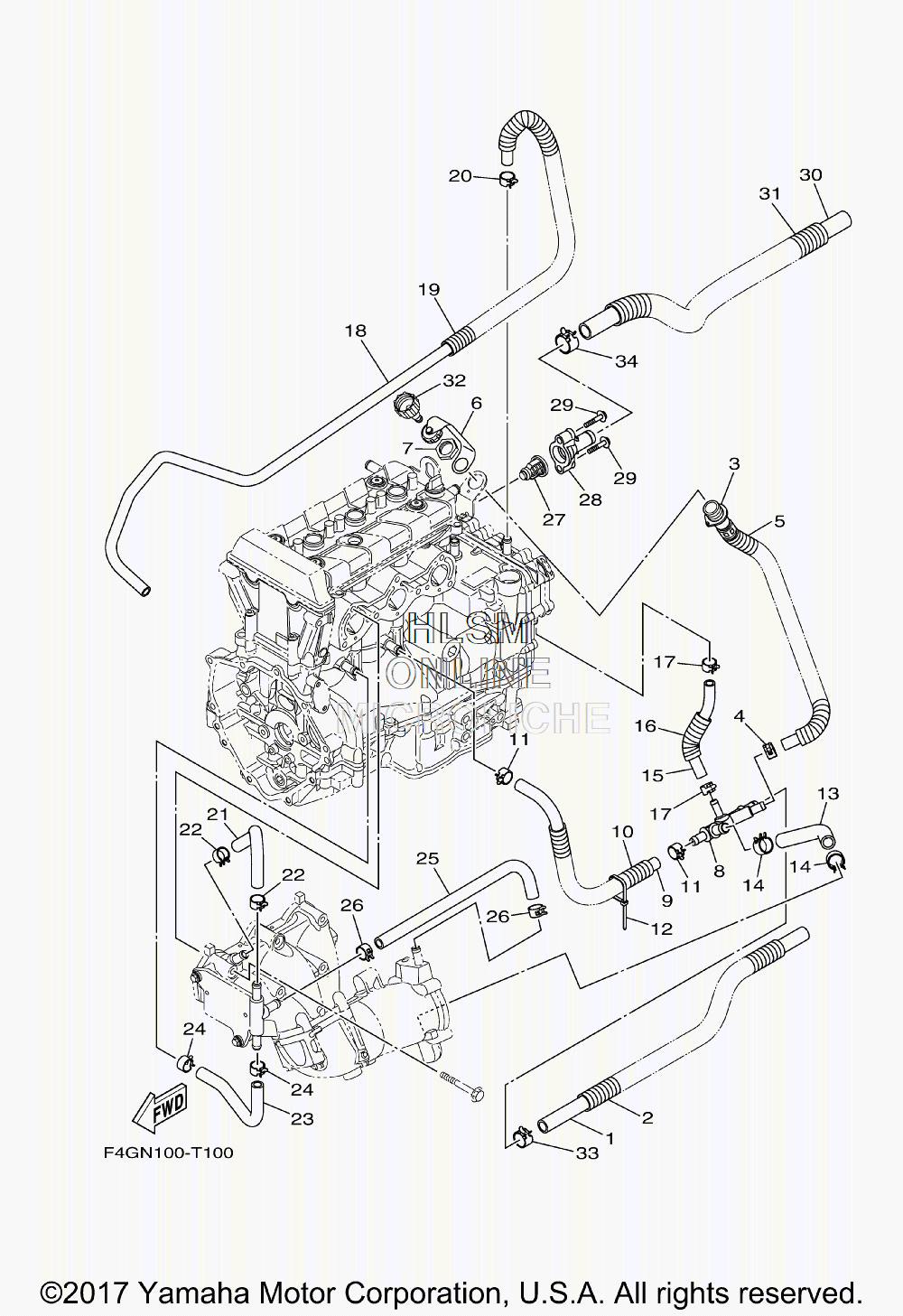

EXHAUST - HOSES для Yamaha VX - 2018 года выпуска`
-
№АртикулНазвание
-
16EY-E243E-00-00 HOSE 2HOSE 2
-
2F4G-U773D-00-00 TUBETUBE
-
36EY-12580-00-00 JOINT ASSYJOINT ASSY
-
490467-150A5-00 CLIPCLIP
-
590446-24M89-00 HOSE (L420)HOSE (L420)
-
66EY-84385-00-00 CAP,1CAP,1
-
7EU0-61652-00-00 NUTNUT
-
86EY-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
990445-18012-00 HOSE (L400)HOSE (L400)
-
1090447-19014-00 TUBE (L300)TUBE (L300)
-
1190467-160A0-00 CLIPCLIP
-
1290465-13M18-00 CLAMPCLAMP
-
1390445-21015-00 HOSE (L170)HOSE (L170)
-
1490467-200A3-00 CLIPCLIP
-
1590445-16019-00 HOSE (L160)HOSE (L160)
-
1690446-24M44-00 HOSE (L70)HOSE (L70)
-
1790467-150A1-00 CLIPCLIP
-
1890445-16020-00 HOSE (L1600)HOSE (L1600)
-
196EY-24864-00-00 TUBETUBE
-
2090467-160A0-00 CLIPCLIP
-
216EY-12577-00-00 HOSE 2HOSE 2
-
2290467-160A0-00 CLIPCLIP
-
236S5-12579-00-00 HOSE 4HOSE 4
-
2490467-160A0-00 CLIPCLIP
-
2590445-18018-00 HOSE (L370)HOSE (L370)
-
2690467-160A0-00 CLIPCLIP
-
276D3-12411-00-00 THERMOSTATTHERMOSTAT
-
286EY-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
2990105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
306EY-E243A-00-00 HOSE 1HOSE 1
-
31F4G-U773D-10-00 TUBETUBE
-
3267X-E2590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
3390467-200A3-00 CLIPCLIP
-
3490467-240A0-00 CLIPCLIP
