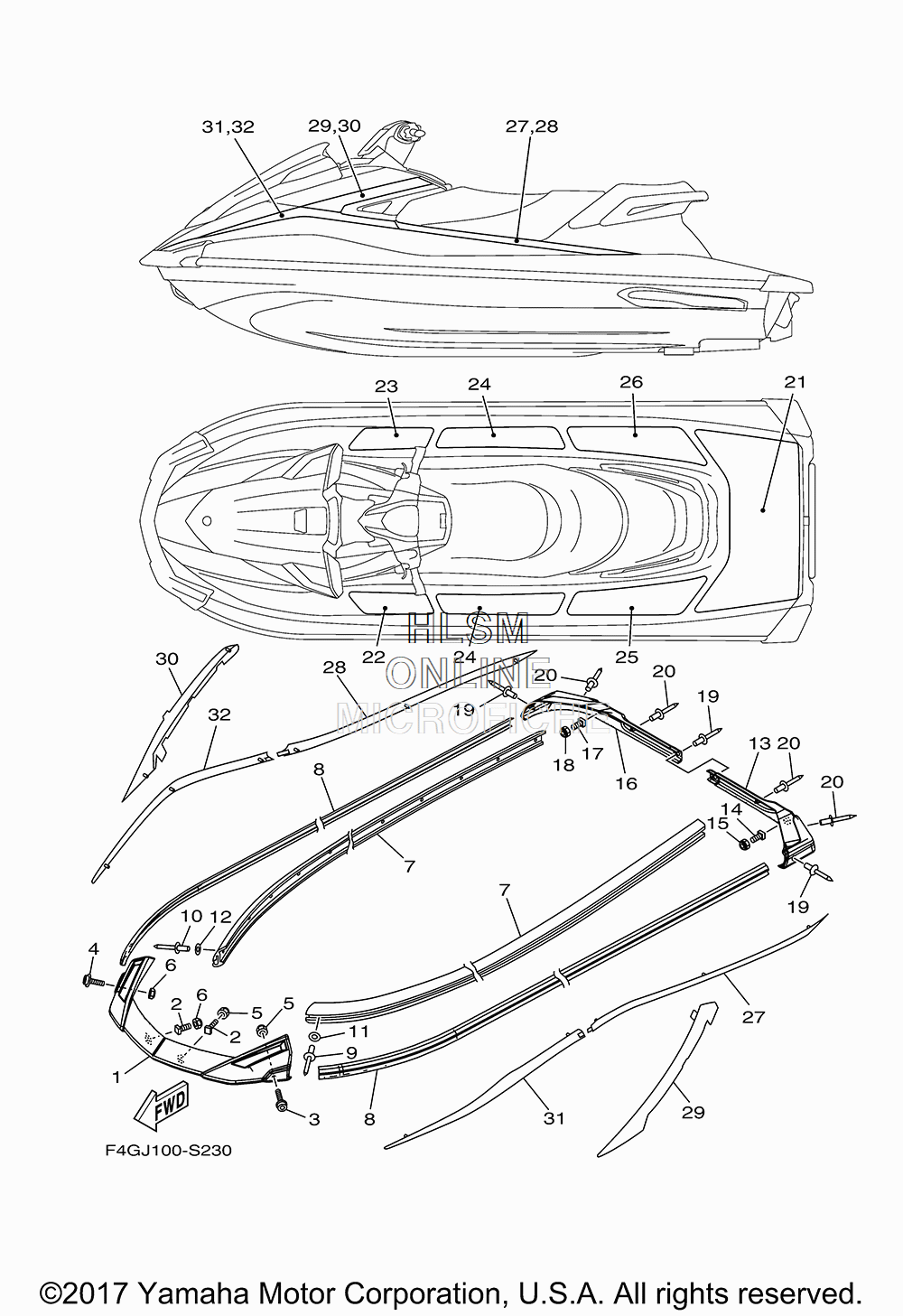

HULL - GUNWALE - MAT для Yamaha VX - 2018 года выпуска`
-
№АртикулНазвание
-
1F2X-U2511-10-00 GUNWALE, BOW (YB - BLACK)GUNWALE, BOW (YB - BLACK)
-
2F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
390110-06191-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
490110-06191-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
6F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
7F2X-U2512-10-00 GUNWALE, SIDE (YB - BLACK)GUNWALE, SIDE (YB - BLACK)
-
8F2X-U2519-90-00 INNER,GUNWALE (GREEN)INNER,GUNWALE (GREEN)
-
990267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1090267-489U8-00 RIVET, BLINDRIVET, BLIND
-
119299R-05200-00 WASHERWASHER
-
129299R-05200-00 WASHERWASHER
-
13F2X-U251D-10-00 GUNWALE, STERN 1 (YB - BLACK)GUNWALE, STERN 1 (YB - BLACK)
-
14F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
15F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
16F2X-U251E-10-00 GUNWALE, STERN 2 (YB - BLACK)GUNWALE, STERN 2 (YB - BLACK)
-
17F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
18F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
1990267-48825-00 RIVET, BLINDRIVET, BLIND
-
2090267-48825-00 RIVET, BLINDRIVET, BLIND
-
21F2X-U3581-10-00 MAT, UPPER (GRAY)MAT, UPPER (GRAY)
-
22F2X-U351H-10-00 MAT, STEP 1 (GRAY)MAT, STEP 1 (GRAY)
-
23F2X-U351J-10-00 MAT, STEP 2 (GRAY)MAT, STEP 2 (GRAY)
-
24F2X-U351K-10-00 MAT, STEP 3 (GRAY)MAT, STEP 3 (GRAY)
-
25F2X-U351M-10-00 MAT, STEP 4 (GRAY)MAT, STEP 4 (GRAY)
-
26F2X-U351N-10-00 MAT, STEP 5 (GRAY)MAT, STEP 5 (GRAY)
-
27F2X-U89A8-70-00 ORNAMENT, STERN LH (GREEN)ORNAMENT, STERN LH (GREEN)
-
28F2X-U89A9-70-00 ORNAMENT, STERN RH (GREEN)ORNAMENT, STERN RH (GREEN)
-
29F2X-U89AA-70-00 ORNAMENT, MIDDLE LH (GREEN)ORNAMENT, MIDDLE LH (GREEN)
-
30F2X-U89AB-70-00 ORNAMENT, MIDDLE RH (GREEN)ORNAMENT, MIDDLE RH (GREEN)
-
31F2X-U89AC-70-00 ORNAMENT, BOW LH (GREEN)ORNAMENT, BOW LH (GREEN)
-
32F2X-U89AD-70-00 ORNAMENT, BOW RH (GREEN)ORNAMENT, BOW RH (GREEN)
