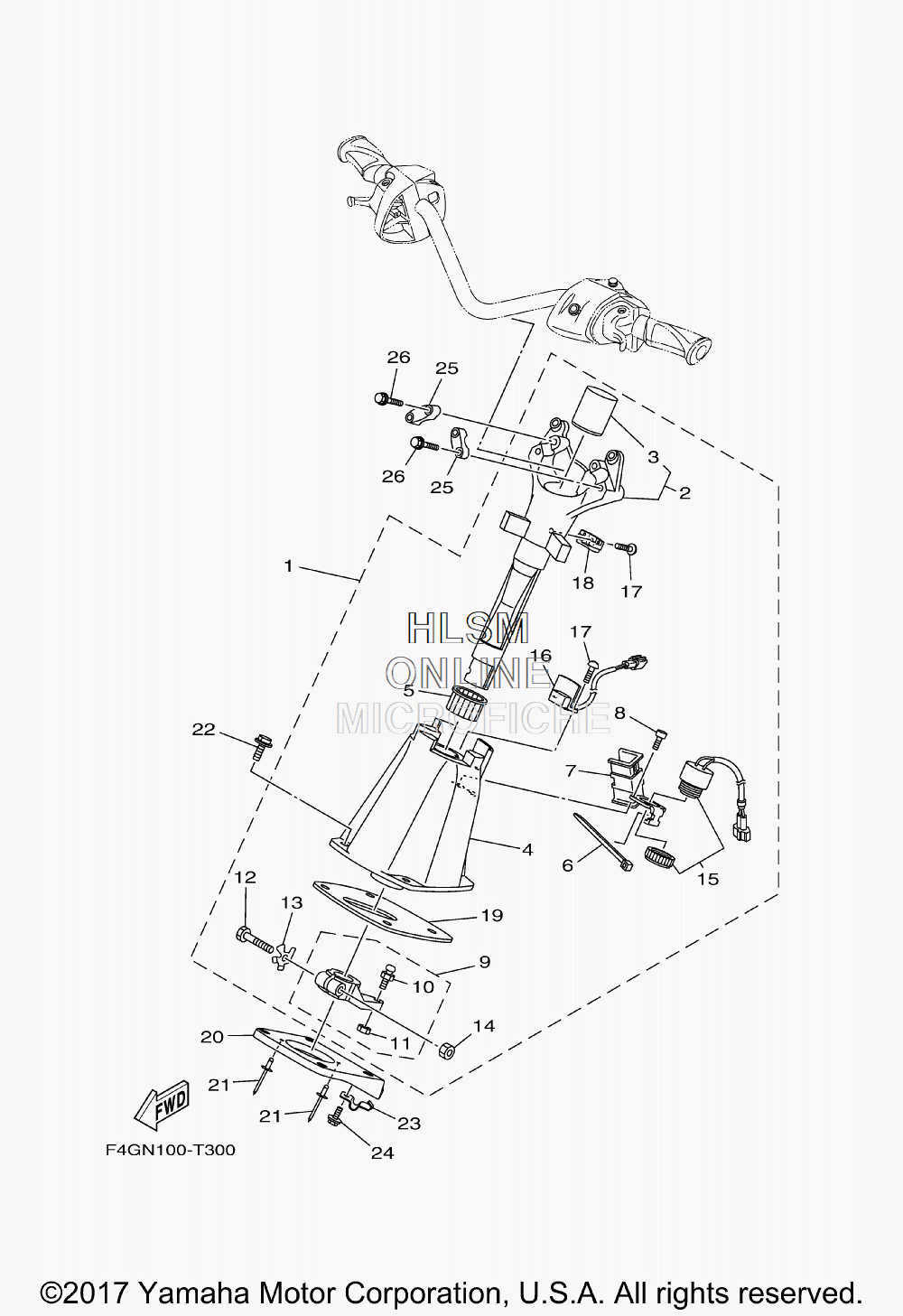

HANDLEBAR PAD для Yamaha VX - 2018 года выпуска`
-
№АртикулНазвание
-
1F2X-61400-00-00 STEERING MASTER ASSYSTEERING MASTER ASSY
-
2F2X-67410-00-00 ...SHAFT ASSY...SHAFT ASSY
-
3F2X-61435-00-00 ......PIPE, SEAL......PIPE, SEAL
-
4F2X-6152M-00-00 ...HOUSING ASSY...HOUSING ASSY
-
5F1K-6134M-00-00 ...BUSH...BUSH
-
6703-82591-00-00 ...BAND...BAND
-
7F2X-6146H-00-00 ...SPACER, BRKT....SPACER, BRKT.
-
8F1B-613C1-00-00 ...SCREW...SCREW
-
9F1K-6153R-00-00 ...ARM ASSY....ARM ASSY.
-
10EU0-61461-02-00 ......STUD, JOINT BALL......STUD, JOINT BALL
-
1195720-06300-00 ......NUT, SELF-LOCKING......NUT, SELF-LOCKING
-
12F1K-61355-00-00 ...BOLT...BOLT
-
13F1K-6142B-00-00 ...PLATE, RETAINING...PLATE, RETAINING
-
1495720-08300-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
15F1S-68341-00-00 ...BUZZER...BUZZER
-
16F2X-6838B-00-00 ...SENSOR, MAGNET...SENSOR, MAGNET
-
17F2X-613C1-00-00 ...SCREW...SCREW
-
18F2X-6838C-00-00 ...MAGNET...MAGNET
-
19F1K-6143C-00-00 ...SEAL, RUBBER...SEAL, RUBBER
-
20F3Y-U1467-00-00 BRACKET,STOPPER CABLEBRACKET,STOPPER CABLE
-
2190267-489U2-00 RIVET, BLINDRIVET, BLIND
-
2290119-08836-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
23F1K-U1468-03-00 STOPPER, CABLESTOPPER, CABLE
-
2490119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
25EU0-23814-31-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
2690119-08827-00 BOLT, WITH WASHERBOLT, WITH WASHER
