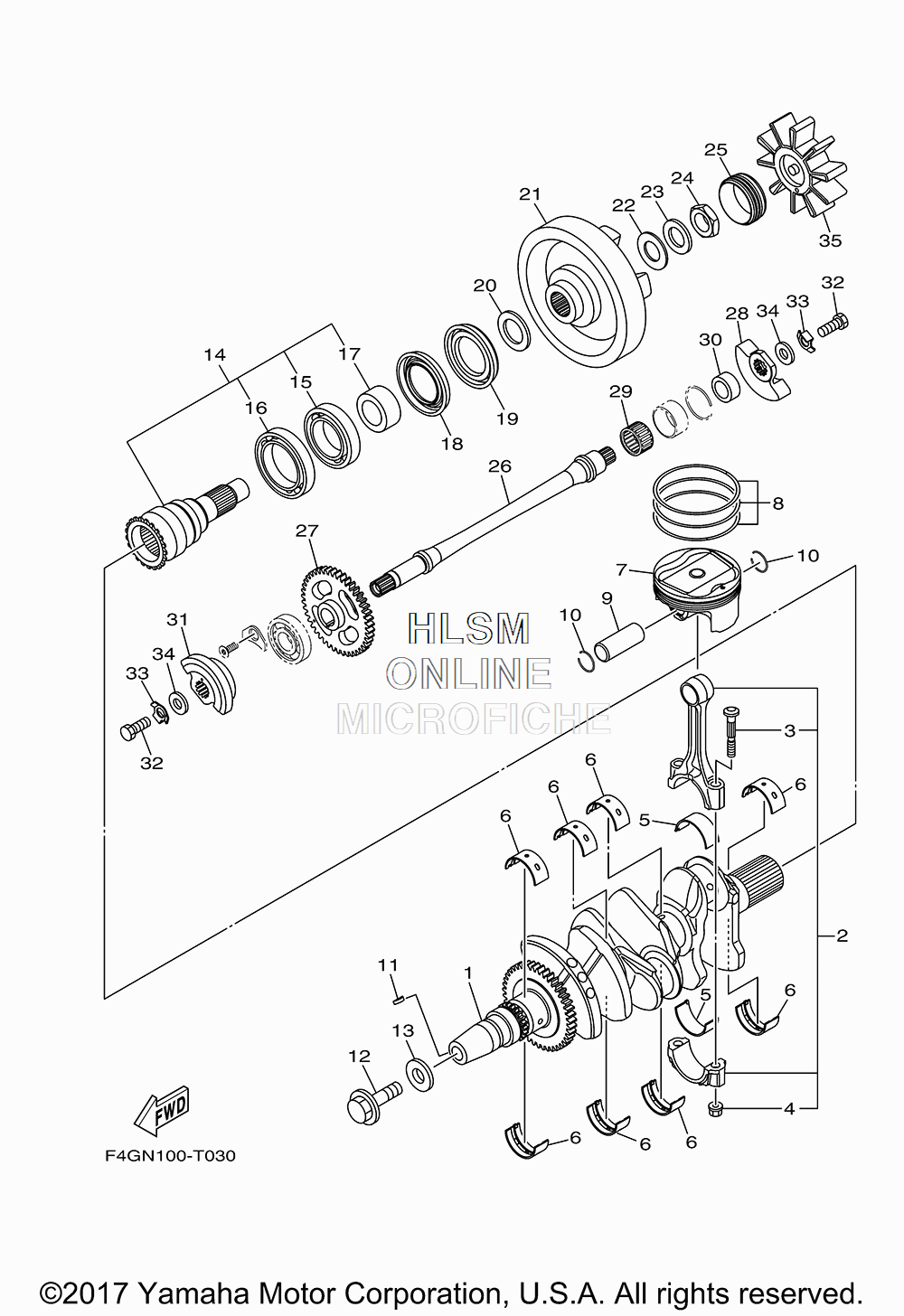

CRANKSHAFT W/ PISTON для Yamaha VX - 2018 года выпуска
-
№АртикулНазвание
-
16EY-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
2B0F-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
35JW-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
490179-08327-00 ...NUT...NUT
-
55JW-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)PLANE BEARING, CONNECTING ROD (BROWN)
-
55JW-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)PLANE BEARING, CONNECTING ROD (GREEN)
-
55JW-11656-50-00 PLANE BEARING, CONNECTING ROD (PINK)PLANE BEARING, CONNECTING ROD (PINK)
-
55JW-11656-40-00 PLANE BEARING, CONNECTING ROD (YELLOW)PLANE BEARING, CONNECTING ROD (YELLOW)
-
55JW-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
55JW-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
63LD-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
63LD-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
63LD-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (YELLOW)PLANE BEARING, CRANKSHAFT 1 (YELLOW)
-
63LD-11416-50-00 PLANE BEARING, CRANKSHAFT 1 (PINK)PLANE BEARING, CRANKSHAFT 1 (PINK)
-
63LD-11416-60-00 PLANE BEARING, CRANKSHAFT 1 (RED)PLANE BEARING, CRANKSHAFT 1 (RED)
-
63LD-11416-70-00 PLANE BEARING, CRANKSHAFT 1 (WHITE)PLANE BEARING, CRANKSHAFT 1 (WHITE)
-
63LD-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
78KH-11631-00-00 PISTON (STD)PISTON (STD)
-
88KH-11603-01-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
96EY-11633-00-00 PIN, PISTONPIN, PISTON
-
1093450-19095-00 CIRCLIPCIRCLIP
-
1190280-03045-00 KEY, WOODRUFFKEY, WOODRUFF
-
1290105-12101-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-121H0-00 WASHER, PLATEWASHER, PLATE
-
146EY-11406-00-00 SHAFT ASSYSHAFT ASSY
-
1593306-00702-00 ...BEARING...BEARING
-
1693306-90901-00 ...BEARING...BEARING
-
176EY-11917-00-00 ...COLLAR...COLLAR
-
1893101-40001-00 OIL SEALOIL SEAL
-
1993101-40002-00 OIL SEALOIL SEAL
-
206EY-11557-00-00 WASHER 1WASHER 1
-
216EY-11571-00-00 FLYWHEELFLYWHEEL
-
2290201-20030-00 WASHER, PLATEWASHER, PLATE
-
2390208-20001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2490179-20010-00 NUTNUT
-
256EY-45155-00-00 CAPCAP
-
262HC-11407-00-00 SHAFT ASSY., 2SHAFT ASSY., 2
-
276EY-11531-00-00 GEAR, BALANCE WEIGHTGEAR, BALANCE WEIGHT
-
288ES-11454-00-00 WEIGHT 1WEIGHT 1
-
2993310-42239-00 BEARINGBEARING
-
306EY-11478-00-00 COLLARCOLLAR
-
312HC-11464-00-00 WEIGHT 2WEIGHT 2
-
3297012-10025-00 BOLTBOLT
-
3390215-10003-00 WASHER, LOCKWASHER, LOCK
-
3490201-10591-00 WASHER, PLATEWASHER, PLATE
-
356EY-4581J-00-00 RUBBER SHAFT COUPLINGRUBBER SHAFT COUPLING
