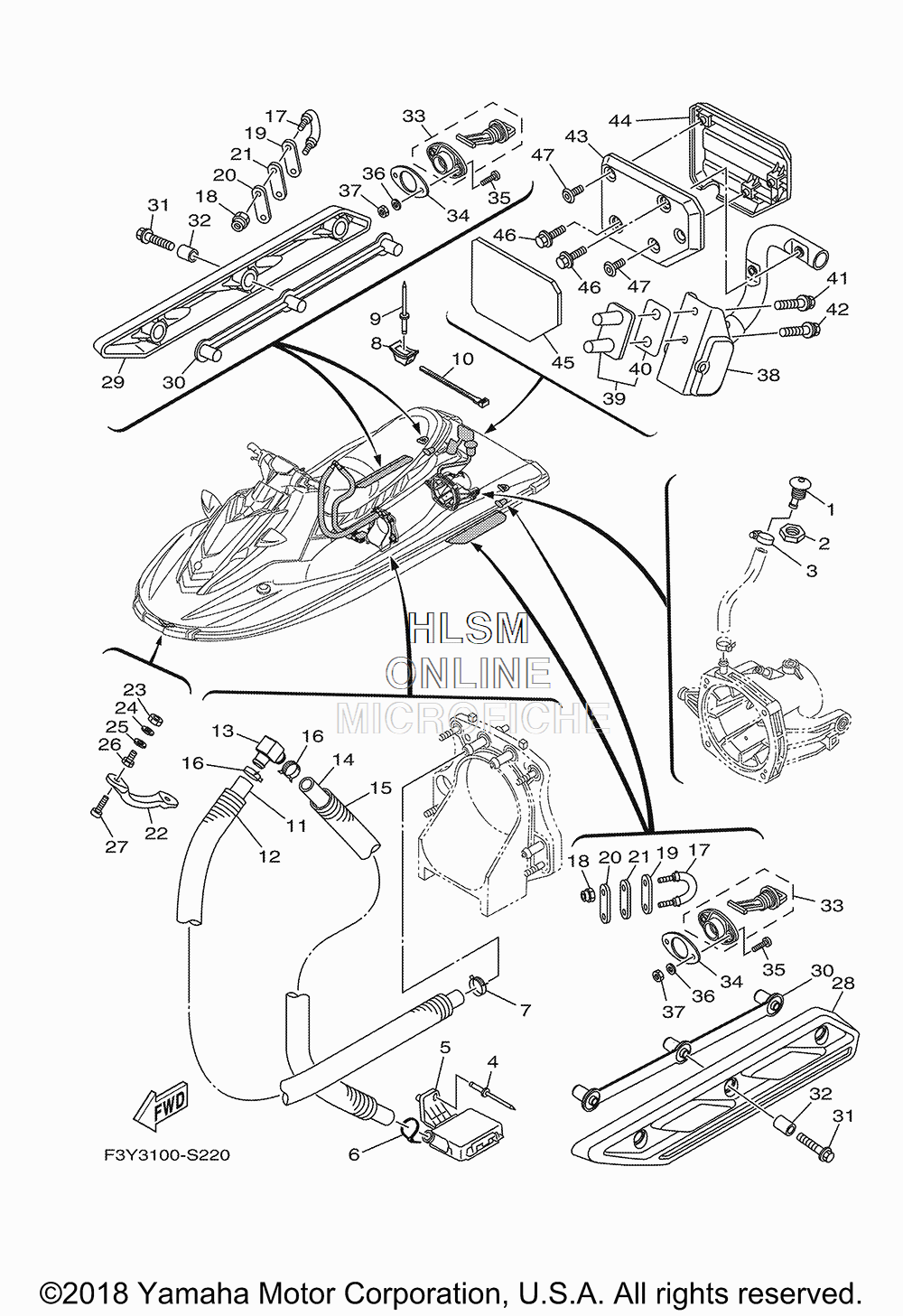

HULL FITTINGS W/ SPONSONS для Yamaha EX SPORT - 2018 года выпуска`
-
№АртикулНазвание
-
1F1W-U269B-00-00 SPOUTSPOUT
-
2EU0-61652-00-00 NUTNUT
-
390601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
4F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
590267-489U8-00 RIVET, BLINDRIVET, BLIND
-
690465-11829-00 CLAMPCLAMP
-
790467-21800-00 CLIPCLIP
-
8F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
990267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1090601-200U2-00 BANDBAND
-
116GA-U771G-00-00 HOSE 2HOSE 2
-
126GA-U773E-00-00 TUBE,2TUBE,2
-
1368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
146GA-U784C-00-00 HOSEHOSE
-
156GA-U773D-00-00 TUBETUBE
-
1690467-18804-00 CLIPCLIP
-
17F2N-U1628-02-00 STERN EYESTERN EYE
-
189572R-08300-00 NUT, FLANGENUT, FLANGE
-
19GP7-U4953-10-00 PLATE APLATE A
-
20GP7-U4953-10-00 PLATE APLATE A
-
21F1B-U1653-02-00 PACKINGPACKING
-
22F1K-61624-00-00 BOW EYE 1BOW EYE 1
-
2399780-12600-00 NUT.HEX.(COARS)NUT.HEX.(COARS)
-
2492990-12200-00 WASHER, PLAINWASHER, PLAIN
-
25F0X-61637-00-00 WASHERWASHER
-
26F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
2790110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
28F3Y-U883N-00-00 STABILIZER LHSTABILIZER LH
-
29F3Y-U883P-00-00 STABILIZER RHSTABILIZER RH
-
30F3Y-U883T-00-00 BRACKET,STABILIZERBRACKET,STABILIZER
-
3190105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
32F2N-U8169-00-00 SPACERSPACER
-
33F1S-U2280-02-00 DRAIN PLUG ASSY.DRAIN PLUG ASSY.
-
34F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
359788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
369299R-05200-00 WASHERWASHER
-
379572R-05300-00 NUT, FLANGENUT, FLANGE
-
38F3Y-U278A-02-00 LADDER, STEP ASSYLADDER, STEP ASSY
-
39F2S-U278F-00-00 BRACKET, LADDER LHBRACKET, LADDER LH
-
40F2S-U278H-00-00 ...PACKING, BRKT. 1...PACKING, BRKT. 1
-
4190119-08861-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4290119-08861-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
43F3Y-U882F-00-00 STEPSTEP
-
44F3Y-U884R-00-00 PLATE, STEP 1PLATE, STEP 1
-
45F3Y-U4994-00-00 COVER STEP 1COVER STEP 1
-
4690119-06891-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
47F2S-U13C1-00-00 SCREWSCREW
