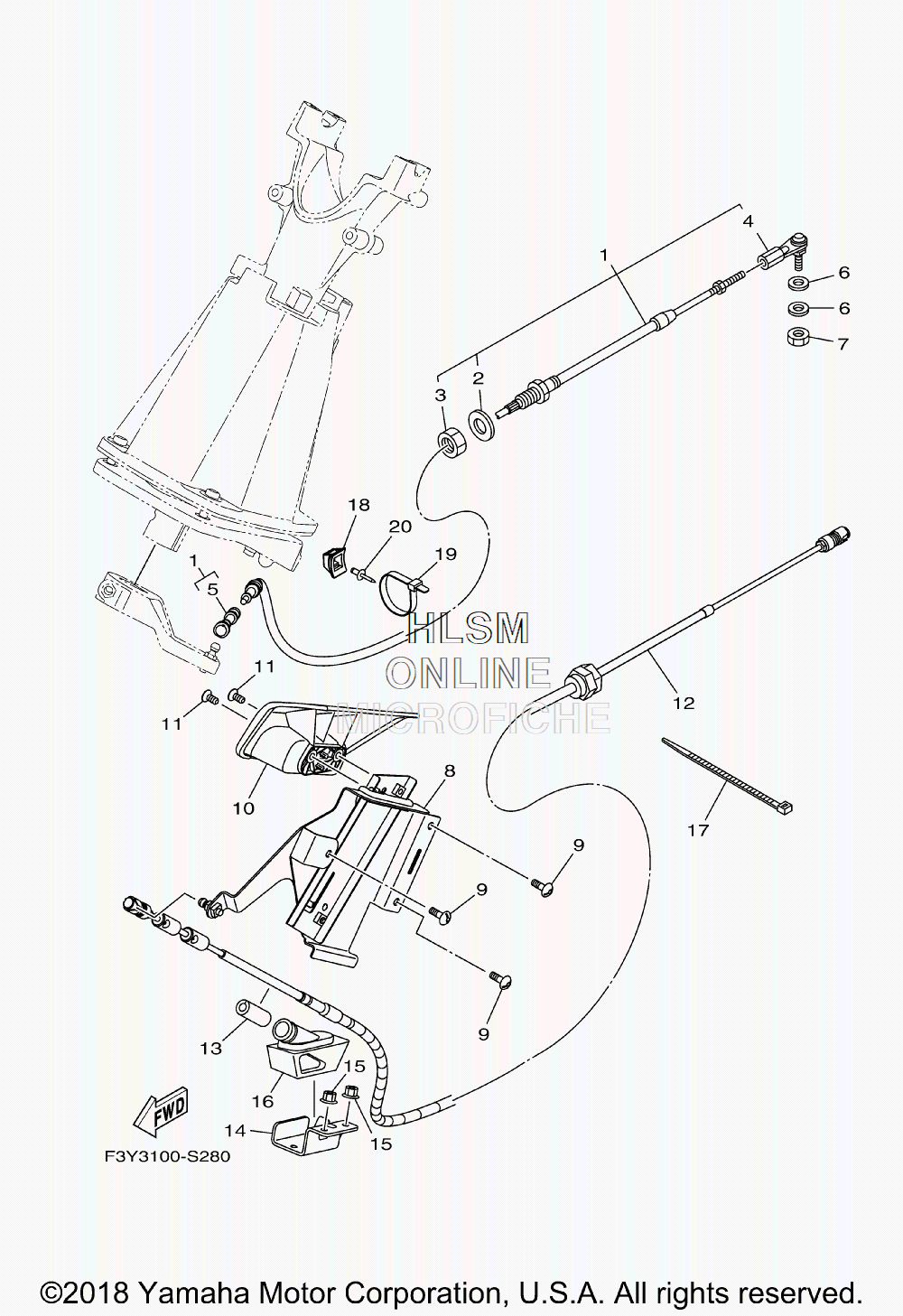

CONTROL CABLES для Yamaha EX SPORT - 2018 года выпуска`
-
№АртикулНазвание
-
1F3Y-61481-00-00 CABLE, STEERINGCABLE, STEERING
-
2F1B-61438-00-00 ...PACKING C...PACKING C
-
3F1B-6151S-00-00 ...NUT...NUT
-
4F3Y-61461-00-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
5F3Y-61460-00-00 ...BALL JOINT ASSY...BALL JOINT ASSY
-
690201-06906-00 WASHER, PLATEWASHER, PLATE
-
79538R-06700-00 NUTNUT
-
8F3Y-U134A-00-00 REMOCON. LEVER ASSY.REMOCON. LEVER ASSY.
-
9F4G-U7823-00-00 SCREWSCREW
-
10F3Y-U2714-00-00 GRIPGRIP
-
1190151-06815-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
12F3Y-U149C-00-00 CABLE,REVERSECABLE,REVERSE
-
13F1W-U146G-00-00 PACKING, CABLEPACKING, CABLE
-
14F3Y-U1467-10-00 BRACKET,STOPPER CABLEBRACKET,STOPPER CABLE
-
15F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
16F3Y-U146G-00-00 PACKING, CABLEPACKING, CABLE
-
1790465-11829-00 CLAMPCLAMP
-
18F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1990464-32801-00 CLAMPCLAMP
-
2090267-489U6-00 RIVET, BLINDRIVET, BLIND
