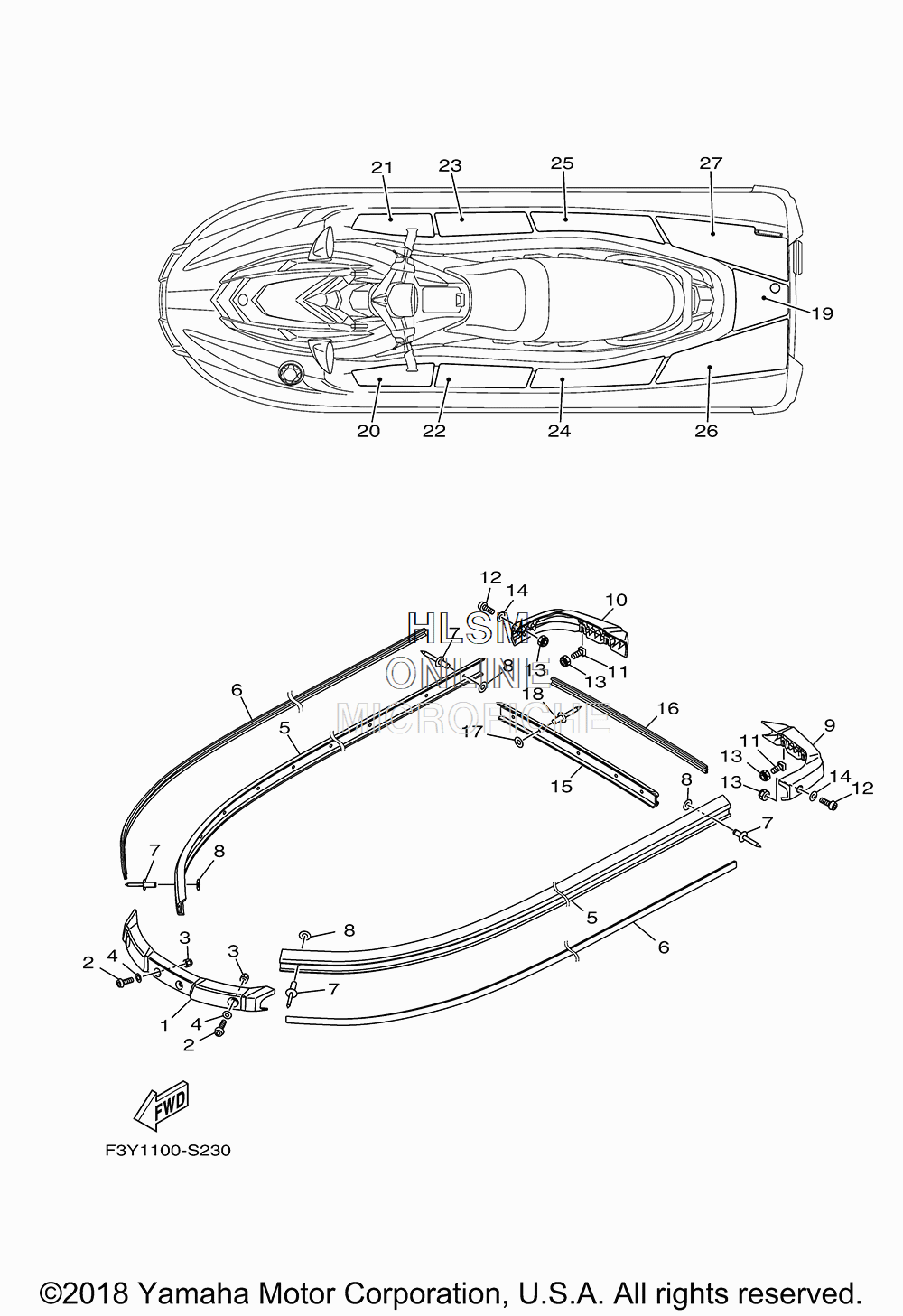

HULL - GUNWALE - MAT для Yamaha EX SPORT - 2018 года выпуска`
-
№АртикулНазвание
-
1F3Y-U2511-00-00 GUNWALE, BOW (BLACK)GUNWALE, BOW (BLACK)
-
290111-06803-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
3F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
4F3Y-U1174-00-00 WASHERWASHER
-
5F3Y-U2512-02-00 GUNWALE, SIDE (BLACK)GUNWALE, SIDE (BLACK)
-
6F3Y-U2519-40-00 INNER,GUNWALE (WHITE FOR BLUE)INNER,GUNWALE (WHITE FOR BLUE)
-
6F3Y-U2519-50-00 INNER,GUNWALE (RED FOR WHITE)INNER,GUNWALE (RED FOR WHITE)
-
790267-489U8-00 RIVET, BLINDRIVET, BLIND
-
89299R-05200-00 WASHERWASHER
-
9F3Y-U251D-00-00 GUNWALE, STERN 1 (BLACK)GUNWALE, STERN 1 (BLACK)
-
10F3Y-U251E-00-00 GUNWALE, STERN 2 (BLACK)GUNWALE, STERN 2 (BLACK)
-
11F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
1290111-06803-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
13F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
14F3Y-U1174-00-00 WASHERWASHER
-
15F3Y-U252C-00-00 COVER, GUNWALE 1 (BLACK)COVER, GUNWALE 1 (BLACK)
-
16F3Y-U252D-50-00 COVER, GUNWALE 2 (WHITE FOR BLUE)COVER, GUNWALE 2 (WHITE FOR BLUE)
-
16F3Y-U252D-60-00 COVER, GUNWALE 2 (RED FOR WHITE)COVER, GUNWALE 2 (RED FOR WHITE)
-
179299R-05200-00 WASHERWASHER
-
1890267-489U8-00 RIVET, BLINDRIVET, BLIND
-
19F3Y-U3581-00-00 MAT, UPPER (DARK GRAY)MAT, UPPER (DARK GRAY)
-
20F3Y-U351H-00-00 MAT, STEP 1 (DARK GRAY)MAT, STEP 1 (DARK GRAY)
-
21F3Y-U351J-00-00 MAT, STEP 2 (DARK GRAY)MAT, STEP 2 (DARK GRAY)
-
22F3Y-U351K-00-00 MAT, STEP 3 (DARK GRAY)MAT, STEP 3 (DARK GRAY)
-
23F3Y-U351M-00-00 MAT, STEP 4 (DARK GRAY)MAT, STEP 4 (DARK GRAY)
-
24F3Y-U351N-00-00 MAT, STEP 5 (DARK GRAY)MAT, STEP 5 (DARK GRAY)
-
25F3Y-U351P-00-00 MAT, STEP 6 (DARK GRAY)MAT, STEP 6 (DARK GRAY)
-
26F3Y-U351R-00-00 MAT, STEP 7 (DARK GRAY)MAT, STEP 7 (DARK GRAY)
-
27F3Y-U351S-00-00 MAT, STEP 8 (DARK GRAY)MAT, STEP 8 (DARK GRAY)
