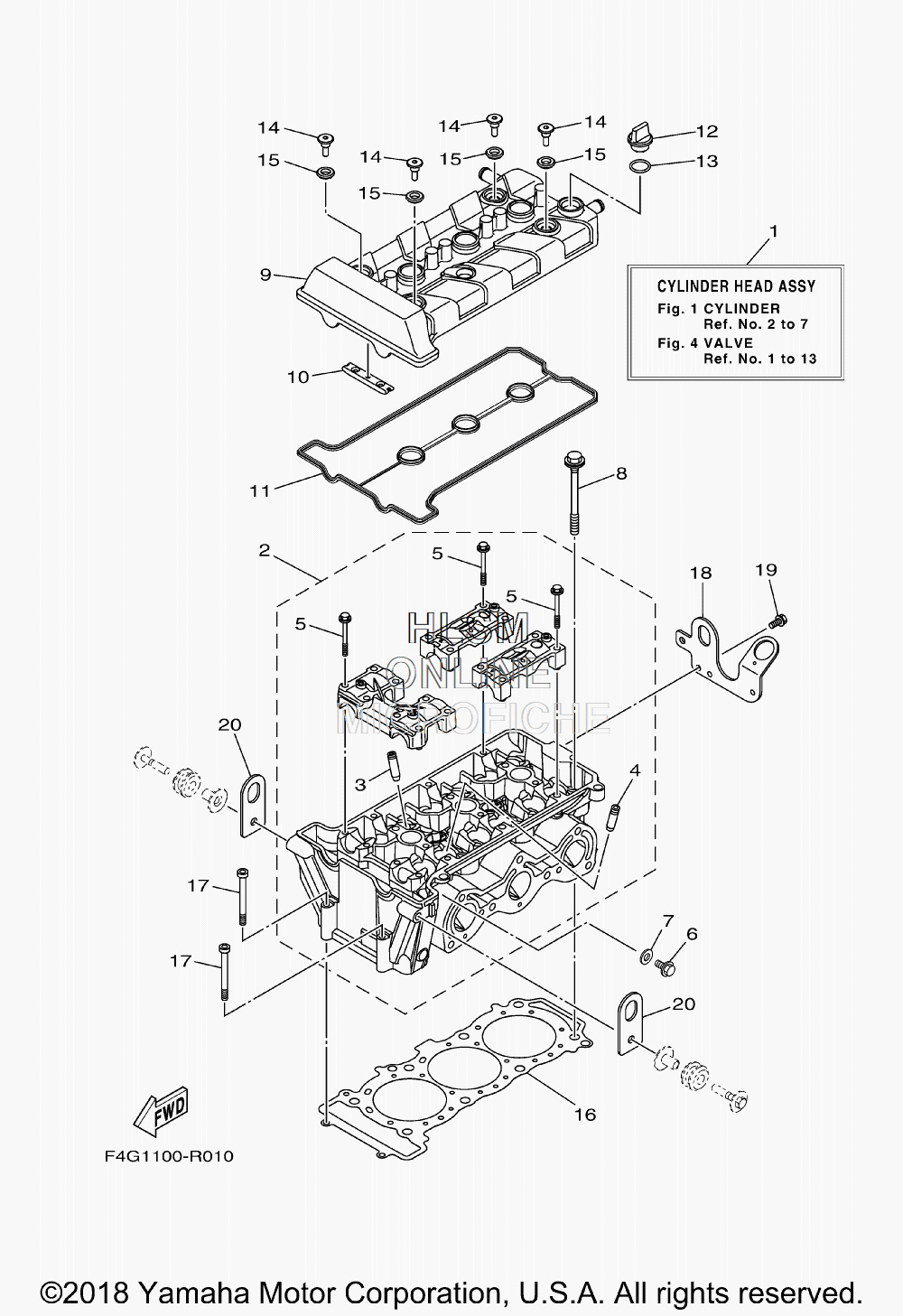

CYLINDER W/ HEAD для Yamaha EX SPORT - 2018 года выпуска`
-
№АртикулНазвание
-
16EY-11110-00-00 CYLINDER HEAD COMPLETECYLINDER HEAD COMPLETE
-
26EY-11102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
32C0-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
48HF-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
590105-06027-00 ...BOLT, FLANGE...BOLT, FLANGE
-
695024-08012-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
790430-08119-00 GASKETGASKET
-
890119-10004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
96EY-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
105BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
116EY-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
123Y1-15363-10-00 PLUG, OILPLUG, OIL
-
1393210-19123-00 O-RINGO-RING
-
1490109-066F0-00 BOLTBOLT
-
155VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
166EY-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1791314-06065-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
186EY-1111E-00-00 HANGER, ENGINE 2HANGER, ENGINE 2
-
1990119-06078-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
206EY-11119-00-00 HANGER, ENGINEHANGER, ENGINE
