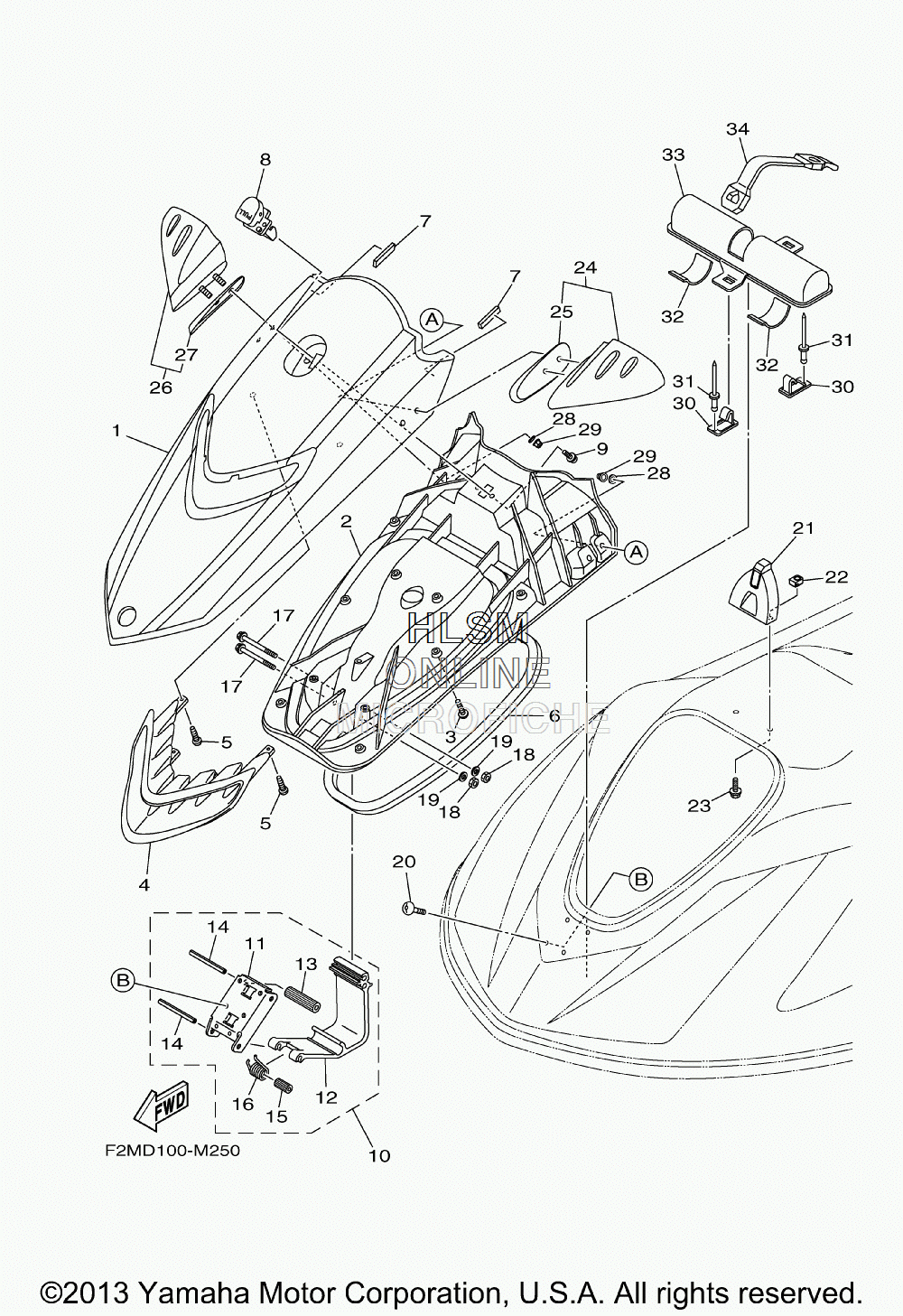

FRONT STORAGE W/ COVER для Yamaha VXR - 2014 года выпуска`
-
№АртикулНазвание
-
1F2M-U517B-00-P6 LID, ENGINE ROOM (BMG) FOR BLACKLID, ENGINE ROOM (BMG) FOR BLACK
-
1F2M-U517B-00-P7 LID, ENGINE ROOM (DRMV) FOR REDLID, ENGINE ROOM (DRMV) FOR RED
-
2F2M-U213B-00-00 COVER,VENTILATOR 1COVER,VENTILATOR 1
-
390149-05903-00 SCREWSCREW
-
4F2M-U517V-00-00 ORNAMENT, CENTERORNAMENT, CENTER
-
590149-05903-00 SCREWSCREW
-
6F2N-U2663-01-00 PACKING 1PACKING 1
-
7F2C-U1743-00-00 PACKINGPACKING
-
8F2M-6517C-00-00 LOCK, LIDLOCK, LID
-
990119-059U4-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
10F1K-U515A-00-00 HINGE ASSY.HINGE ASSY.
-
11F1K-U518E-04-00 ...PLATE, HINGE LID...PLATE, HINGE LID
-
12F1K-U517D-05-00 ...HINGE, LID...HINGE, LID
-
13F1K-U135C-01-00 ...ROLLER, DETENT...ROLLER, DETENT
-
14F1K-U517R-00-00 ...PIN, HINGE...PIN, HINGE
-
15F1K-U471E-03-00 ...SPACER 1...SPACER 1
-
16F1K-U283B-02-00 ...SPRING, TORSION...SPRING, TORSION
-
1790105-06826-00 BOLT, FLANGEBOLT, FLANGE
-
189572R-06300-00 NUT, NYLONNUT, NYLON
-
199299R-06200-00 WASHERWASHER
-
20F2N-67823-00-00 SCREWSCREW
-
21F2N-U517F-00-00 HOOK,LID LOCKHOOK,LID LOCK
-
22F1X-U517E-01-00 NUTNUT
-
2390119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
24F2N-U596B-00-00 MIRROR LHMIRROR LH
-
25F2N-U471E-00-00 ...SPACER 1...SPACER 1
-
26F2N-U596C-00-00 MIRROR RHMIRROR RH
-
27F2N-U471F-00-00 ...SPACER 2...SPACER 2
-
289299R-08200-00 WASHERWASHER
-
299572R-08300-00 NUT, FLANGENUT, FLANGE
-
30F1K-U5772-04-00 HOOK AHOOK A
-
3190267-489U1-00 RIVET,BLINDRIVET,BLIND
-
32F1K-U759C-00-00 MAT 2MAT 2
-
33F1K-U5983-01-00 BOX, FIRE EXTINGUISHERBOX, FIRE EXTINGUISHER
-
34F2P-U828K-00-00 BAND 1BAND 1
