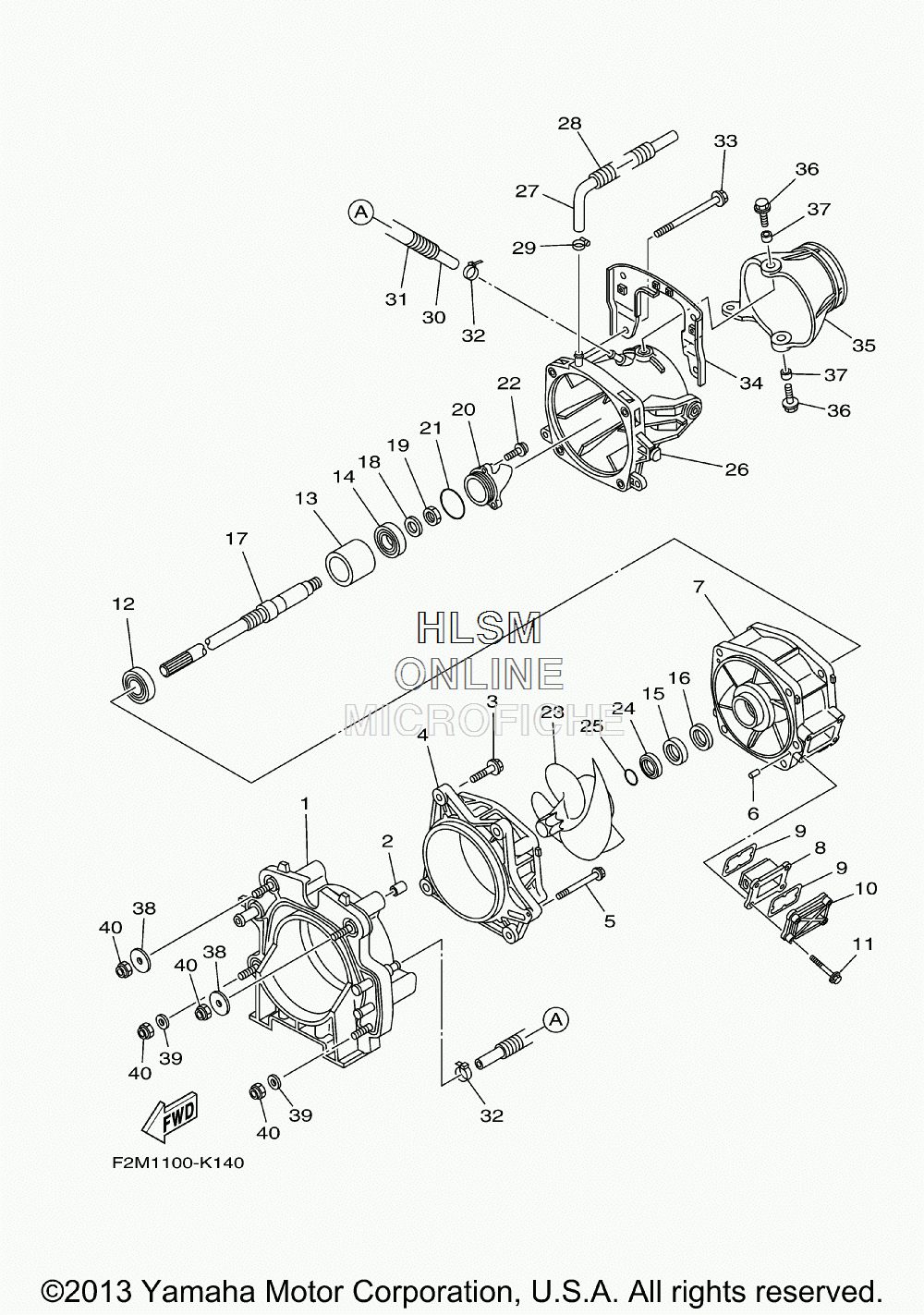

PROPULSION SYSTEM - EXTERNAL для Yamaha VXR - 2014 года выпуска`
-
№АртикулНазвание
-
16AN-G5831-00-00 PLATE, TRANSOMPLATE, TRANSOM
-
299590-14016-00 PIN, DOWELPIN, DOWEL
-
390119-10810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
466V-51312-01-94 HOUSING, IMPELLERHOUSING, IMPELLER
-
590119-06893-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
693606-12019-00 PIN, DOWELPIN, DOWEL
-
76S5-51315-01-94 DUCT, IMPELLERDUCT, IMPELLER
-
86AN-G6882-00-00 FILTERFILTER
-
966V-42414-00-00 O-RINGO-RING
-
106AN-G5214-00-94 COVER, WATER INLET 1COVER, WATER INLET 1
-
1190119-06897-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1293306-20654-00 BEARINGBEARING
-
136CS-G5538-00-00 SPACER 1SPACER 1
-
1493306-30537-00 BEARINGBEARING
-
1593102-31009-00 OIL SEALOIL SEAL
-
1693101-31001-00 OIL SEALOIL SEAL
-
176S5-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
189290P-20600-00 WASHERWASHER
-
1990170-20802-00 NUTNUT
-
206AN-R1326-00-94 CAPCAP
-
216S5-5111K-00-00 O-RING 1O-RING 1
-
2290110-06822-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
236AP-R1321-01-00 IMPELLERIMPELLER
-
246BH-51348-01-00 SPACERSPACER
-
2593210-30611-00 O-RINGO-RING
-
266BU-R1318-01-00 NOZZLENOZZLE
-
276CN-U72M2-00-00 HOSE 1HOSE 1
-
286CN-U773D-00-00 TUBETUBE
-
2990601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
3090445-14807-00 HOSE (L355)HOSE (L355)
-
3190446-20MF5-00 HOSE (L320)HOSE (L320)
-
3290465-11829-00 CLAMPCLAMP
-
3390119-10806-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
346D3-R1341-00-00 BRACKET 1BRACKET 1
-
356BU-R1313-00-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
3690119-08840-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3790387-08M06-00 COLLARCOLLAR
-
38F1S-U725E-01-00 WASHERWASHER
-
3990201-10801-00 WASHER, PLATEWASHER, PLATE
-
409572R-10300-00 NUT, NYLONNUT, NYLON
