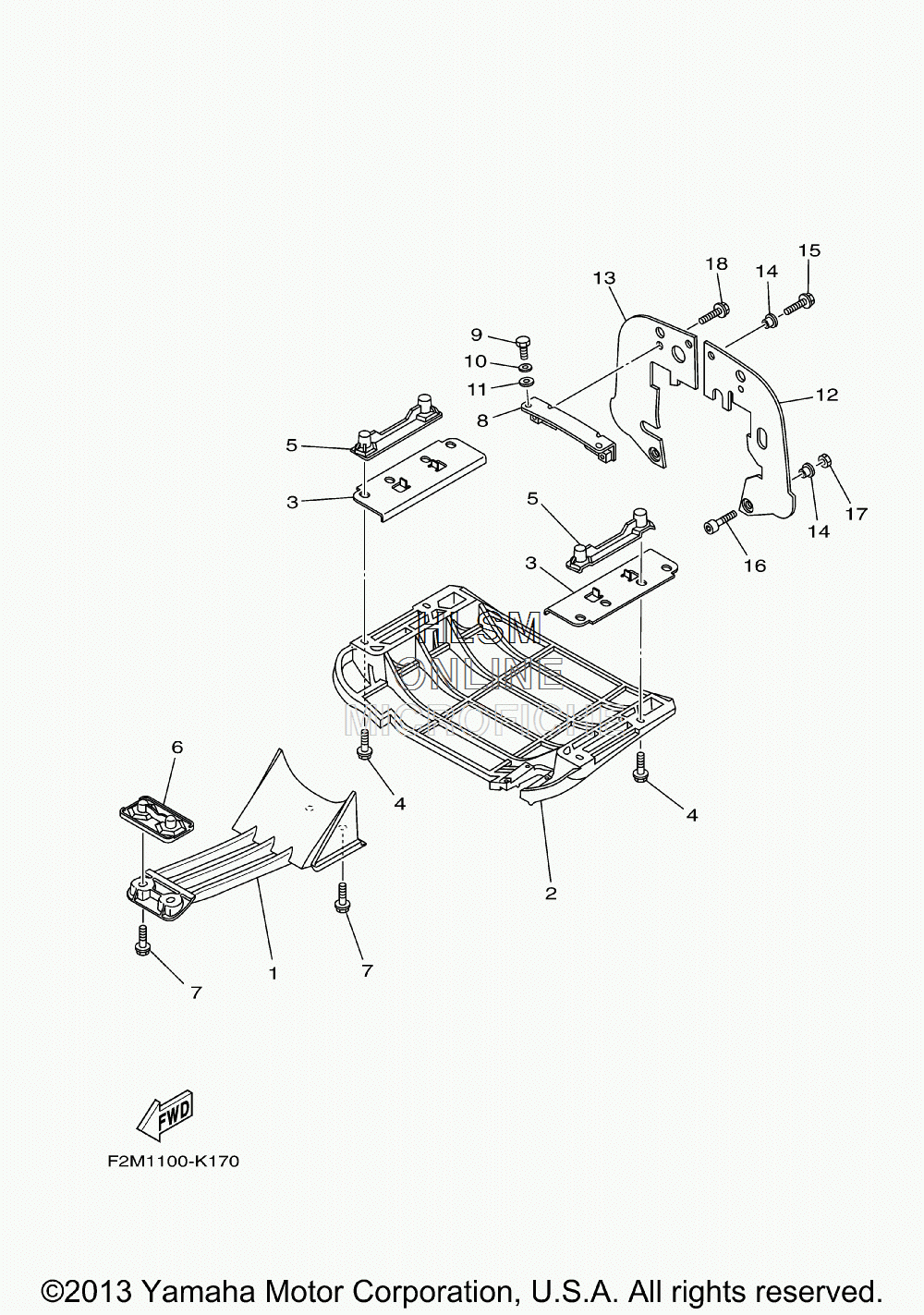

INTAKE AND RIDE PLATE ASSY для Yamaha VXR - 2014 года выпуска
-
№АртикулНазвание
-
16CN-R1333-00-00 SCREEN, INTAKESCREEN, INTAKE
-
2F1K-U273B-06-00 PLATE 2PLATE 2
-
3F2M-U143G-00-00 SPACERSPACER
-
490119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5F1G-U8572-02-00 BRACKET 2BRACKET 2
-
6F2C-U8577-03-00 BRACKET, 3BRACKET, 3
-
790119-10808-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
8F1K-U7557-01-00 BRACKETBRACKET
-
990109-08041-00 BOLTBOLT
-
1092990-12200-00 WASHER, PLAINWASHER, PLAIN
-
1190430-12002-00 GASKETGASKET
-
12F1K-U757E-01-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
13F1K-U757F-01-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
1490387-06080-00 COLLARCOLLAR
-
1590119-06882-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690101-069U0-00 BOLTBOLT
-
179572R-06300-00 NUT, NYLONNUT, NYLON
-
1890119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
