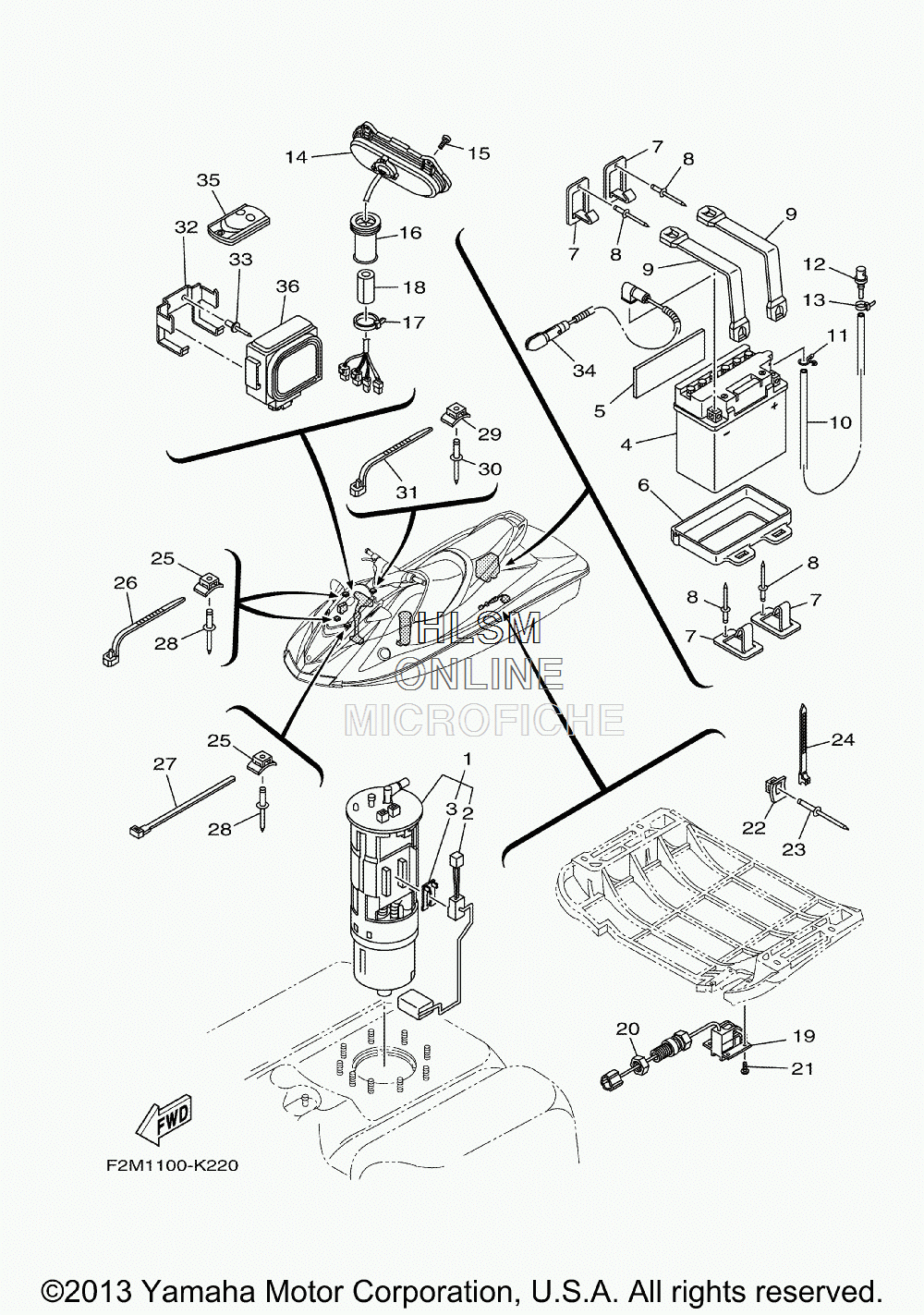

ELECTRICAL 3 для Yamaha VXR - 2014 года выпуска`
-
№АртикулНазвание
-
16S5-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
26S5-682E0-00-00 ...FUEL SENDER ASSY...FUEL SENDER ASSY
-
360E-82556-00-00 ...DAMPER, STOPPER...DAMPER, STOPPER
-
4EU0-82110-09-00 BATTERY ASSY (YB16CL-B)BATTERY ASSY (YB16CL-B)
-
5F1K-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
6F1K-U8211-01-00 CASE, BATTERYCASE, BATTERY
-
7F1K-U5772-04-00 HOOK AHOOK A
-
890267-489U1-00 RIVET,BLINDRIVET,BLIND
-
9F1K-U821D-01-00 BAND, BATTERY 1BAND, BATTERY 1
-
10F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
1190467-089U1-00 CLIPCLIP
-
12GJ3-6215F-00-00 NIPPLENIPPLE
-
1390465-11829-00 CLAMPCLAMP
-
14F1K-6820A-20-00 METER ASSYMETER ASSY
-
1590111-05008-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
16GU2-6822E-01-00 GROMMETGROMMET
-
1790464-32801-00 CLAMPCLAMP
-
18GJ1-U7578-21-00 PACKING, HOSE 2PACKING, HOSE 2
-
19F1S-U8K31-02-00 SENSOR SPEEDSENSOR SPEED
-
20F2C-U151S-00-00 NUTNUT
-
2190150-05807-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
22F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
2390267-489U6-00 RIVET, BLINDRIVET, BLIND
-
2490464-32801-00 CLAMPCLAMP
-
25F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
2690464-32801-00 CLAMPCLAMP
-
2790601-200U2-00 BANDBAND
-
2890267-489U6-00 RIVET, BLINDRIVET, BLIND
-
29F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
3090267-489U6-00 RIVET, BLINDRIVET, BLIND
-
3190464-32801-00 CLAMPCLAMP
-
32F1W-U826C-00-00 BRACKETBRACKET
-
3390267-489U9-00 RIVET, BLINDRIVET, BLIND
-
346S5-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
356B6-86261-00-00 TRANSMITTER COMPTRANSMITTER COMP
-
366B6-86265-00-00 RECIVER COMPRECIVER COMP
