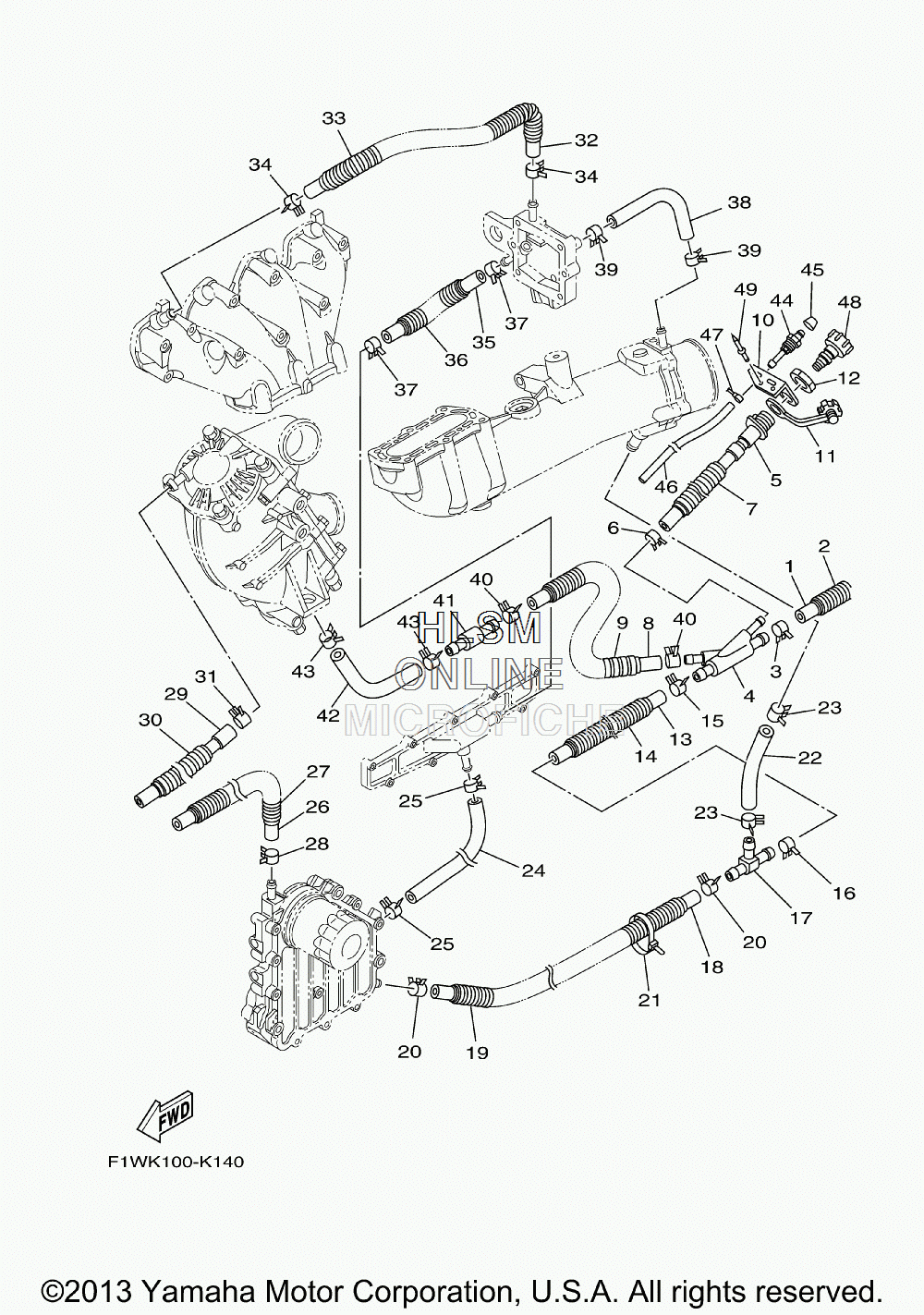

EXHAUST - HOSES для Yamaha WAVERUNNER FZR [GX1800L] - 2012 года выпуска`
-
№АртикулНазвание
-
190445-21813-00 HOSE (L285)HOSE (L285)
-
290447-22801-00 TUBE (L200)TUBE (L200)
-
390467-200A3-00 CLIPCLIP
-
46S5-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
563M-12580-00-00 JOINT ASSYJOINT ASSY
-
690467-150A5-00 CLIPCLIP
-
790447-19801-00 TUBE (L485)TUBE (L485)
-
890445-21807-00 HOSE (L970)HOSE (L970)
-
990447-22802-00 TUBE (L850)TUBE (L850)
-
106S5-12443-00-00 STAY (E/N 6AN-1013101 - 6AN-1013200)STAY (E/N 6AN-1013101 - 6AN-1013200)
-
1060E-12443-00-00 STAY (E/N 6AN-1013201 & UP)STAY (E/N 6AN-1013201 & UP)
-
11682-84385-01-00 CAP,1CAP,1
-
12EU0-61652-00-00 NUTNUT
-
136S5-1243E-01-00 HOSE 2HOSE 2
-
1490447-22011-00 TUBE (L170)TUBE (L170)
-
1590467-200A3-00 CLIPCLIP
-
1690467-200A3-00 CLIPCLIP
-
176BH-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
1890445-18012-00 HOSE (L400)HOSE (L400)
-
1990447-19005-00 TUBE (L260)TUBE (L260)
-
2090467-160A0-00 CLIPCLIP
-
2190464-35132-00 CLAMPCLAMP
-
226S5-12589-01-00 HOSE 6HOSE 6
-
2390467-200A3-00 CLIPCLIP
-
246BH-1244H-00-00 HOSE 5HOSE 5
-
2590467-150A1-00 CLIPCLIP
-
266S5-12588-00-00 HOSE 5HOSE 5
-
2790447-19006-00 HOSE, WITH SPRING (L=630)HOSE, WITH SPRING (L=630)
-
2890467-160A0-00 CLIPCLIP
-
296S5-12552-00-00 HOSE 8HOSE 8
-
3090446-24M89-00 HOSE (L420)HOSE (L420)
-
3190467-170A4-00 CLIPCLIP
-
326S5-12577-00-00 HOSE 2HOSE 2
-
3390446-27M55-00 TUBE (L400)TUBE (L400)
-
3490467-160A0-00 CLIPCLIP
-
356S5-12579-00-00 HOSE 4HOSE 4
-
3690447-19011-00 TUBE (L150)TUBE (L150)
-
3790467-160A0-00 CLIPCLIP
-
3890445-16013-00 HOSE (L220)HOSE (L220)
-
3990467-160A0-00 CLIPCLIP
-
4090467-200A3-00 CLIPCLIP
-
416S5-12594-00-00 JOINT, HOSE 4JOINT, HOSE 4
-
426S5-12576-01-00 HOSE 1HOSE 1
-
4390467-200A3-00 CLIPCLIP
-
4461L-5169A-00-00 NIPPLE, GREASE (E/N 6AN-1013101 - 6AN-1013200)NIPPLE, GREASE (E/N 6AN-1013101 - 6AN-1013200)
-
45663-45119-00-00 CAP, GREASE NIPPLE (E/N 6AN-1013101 - 6AN-1013200)CAP, GREASE NIPPLE (E/N 6AN-1013101 - 6AN-1013200)
-
4690445-09M21-00 HOSE (L445) (E/N 6AN-1013101 - 6AN-1013200)HOSE (L445) (E/N 6AN-1013101 - 6AN-1013200)
-
4790465-11829-00 CLAMP (E/N 6AN-1013101 - 6AN-1013200)CLAMP (E/N 6AN-1013101 - 6AN-1013200)
-
4867X-E2590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
4990267-489U1-00 RIVET, BLINDRIVET, BLIND
