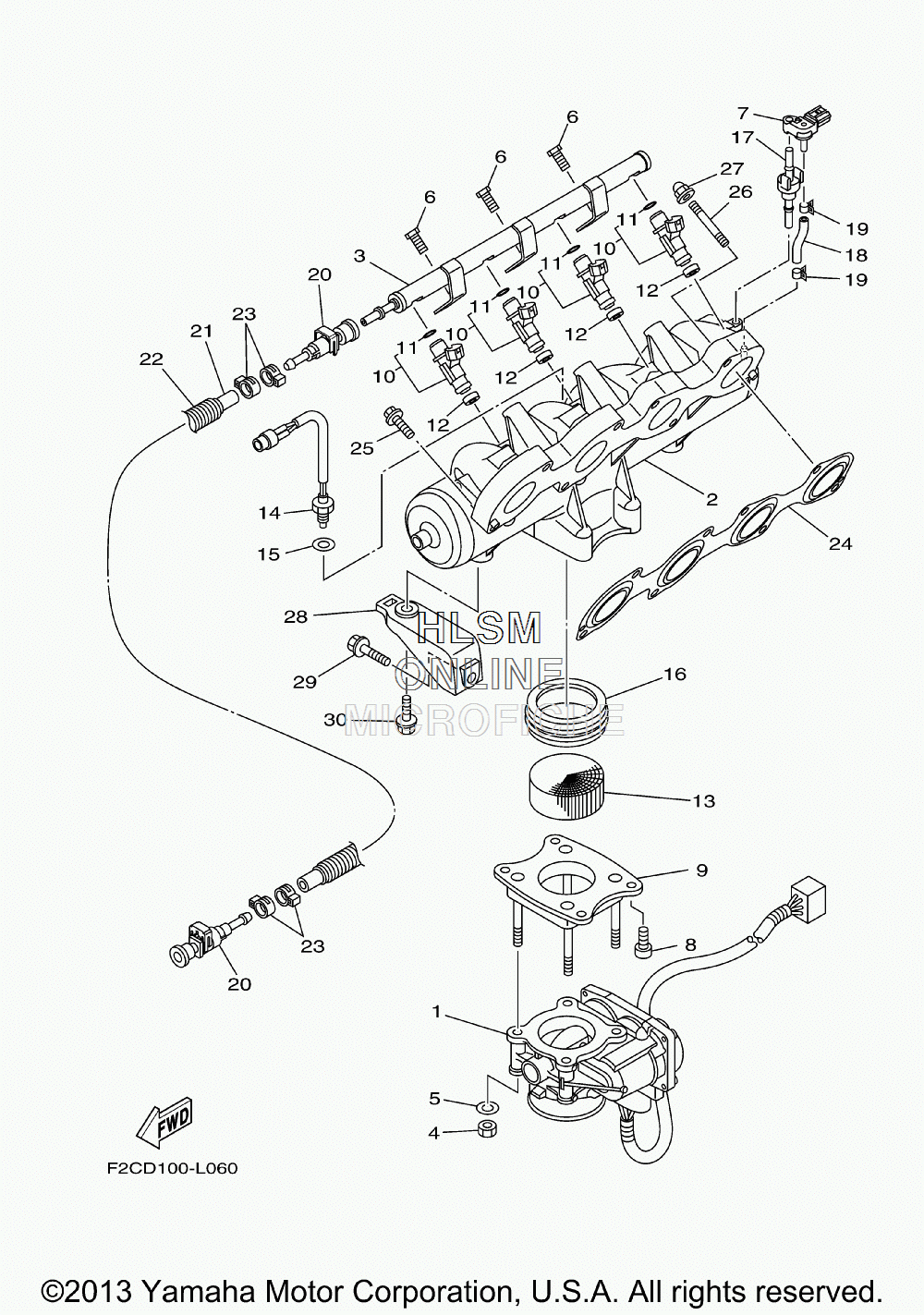

THROTTLE BODY ASSY. для Yamaha WAVERUNNER FZR [GX1800L] - 2012 года выпуска`
-
№АртикулНазвание
-
16S5-13750-10-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
26S5-13641-A0-00 MANIFOLD, INTAKE 1 (E/N 6AN-1013201 & UP)MANIFOLD, INTAKE 1 (E/N 6AN-1013201 & UP)
-
26S5-13641-10-00 MANIFOLD 1 (E/N 6AN-1013101 - 6AN-1013200)MANIFOLD 1 (E/N 6AN-1013101 - 6AN-1013200)
-
36S5-12880-00-00 DELIVERY PIPEDELIVERY PIPE
-
46P2-13588-00-00 NUTNUT
-
56P2-13578-00-00 WASHERWASHER
-
663P-14446-00-00 BOLTBOLT
-
76BH-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
86S5-14496-00-00 BOLTBOLT
-
96S5-14360-10-00 THROTTLE DAMPER ASSYTHROTTLE DAMPER ASSY
-
106S5-13761-00-00 INJECTORINJECTOR
-
1160E-14147-00-00 ...O-RING...O-RING
-
128FP-13556-00-00 RUBBER, INJECTORRUBBER, INJECTOR
-
136D3-1444B-00-00 RIBBONRIBBON
-
146S5-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
156S5-14285-00-00 WASHERWASHER
-
166D3-14457-00-00 SEALSEAL
-
176BH-14445-00-00 GROMMETGROMMET
-
1869J-13532-00-00 HOSE, VACUUM SENSING 3HOSE, VACUUM SENSING 3
-
196S5-14159-00-00 CLIPCLIP
-
206S5-24300-01-00 FUEL PIPE JOINTFUEL PIPE JOINT
-
216AN-14294-02-00 HOSE (E/N 6AN-1013101 - 6AN-1013200)HOSE (E/N 6AN-1013101 - 6AN-1013200)
-
216AN-14294-10-00 HOSE (E/N 6AN-1013201 & UP)HOSE (E/N 6AN-1013201 & UP)
-
2290447-19017-00 TUBE (L495)TUBE (L495)
-
2390450-17M17-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
246BH-13645-00-00 GASKET, MANIFOLD 1GASKET, MANIFOLD 1
-
2590119-08022-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2690116-08032-00 BOLT, STUDBOLT, STUD
-
2790176-08080-00 NUT, CROWNNUT, CROWN
-
286S5-14413-00-94 STAYSTAY
-
2990119-08043-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090119-08099-00 BOLT, WITH WASHERBOLT, WITH WASHER
