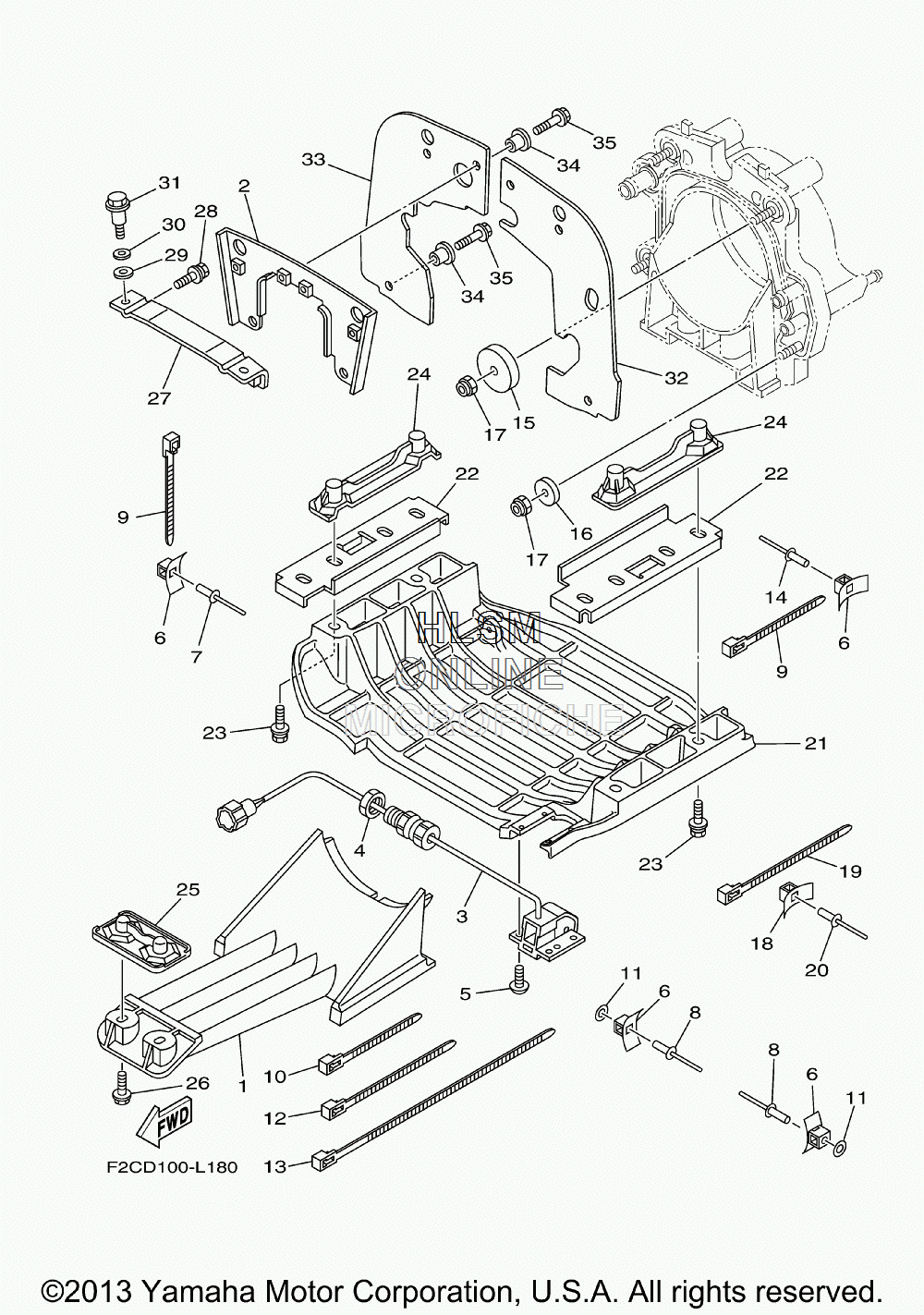

INTAKE AND RIDE PLATE ASSY для Yamaha WAVERUNNER FZR [GX1800L] - 2012 года выпуска
-
№АртикулНазвание
-
16AN-R1333-02-00 SCREEN, INTAKESCREEN, INTAKE
-
26AN-R1341-01-00 BRACKET 1BRACKET 1
-
3F1S-U8K31-02-00 SENSOR SPEEDSENSOR SPEED
-
4F2C-U151S-00-00 NUTNUT
-
590150-05807-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
6F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
790267-48802-00 RIVET, BLINDRIVET, BLIND
-
890267-489U2-00 RIVET, BLINDRIVET, BLIND
-
990464-32801-00 CLAMPCLAMP
-
1090601-200U1-00 BANDBAND
-
119299R-05200-00 WASHERWASHER
-
1290464-32801-00 CLAMPCLAMP
-
1390464-99801-00 CLAMPCLAMP
-
1490267-489U6-00 RIVET, BLINDRIVET, BLIND
-
15F1S-U725E-01-00 WASHERWASHER
-
1690201-10801-00 WASHER, PLATEWASHER, PLATE
-
179572R-10300-00 NUT, NYLONNUT, NYLON
-
18F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1990464-32801-00 CLAMPCLAMP
-
2090267-48802-00 RIVET, BLINDRIVET, BLIND
-
21F2C-U273B-02-00 PLATE 2PLATE 2
-
22F2C-U143G-00-00 SPACERSPACER
-
2390119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
24F1G-U8572-02-00 BRACKET 2BRACKET 2
-
25F2C-U8577-03-00 BRACKET, 3BRACKET, 3
-
2690119-10808-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
27F2C-U7557-01-00 BRACKETBRACKET
-
2890119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2990430-12002-00 GASKETGASKET
-
3092990-12200-00 WASHER, PLAINWASHER, PLAIN
-
3190109-08041-00 BOLTBOLT
-
32F2C-U757E-01-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
33F2C-U757F-01-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
3490387-06080-00 COLLARCOLLAR
-
3590119-06827-00 BOLT, WITH WASHERBOLT, WITH WASHER
