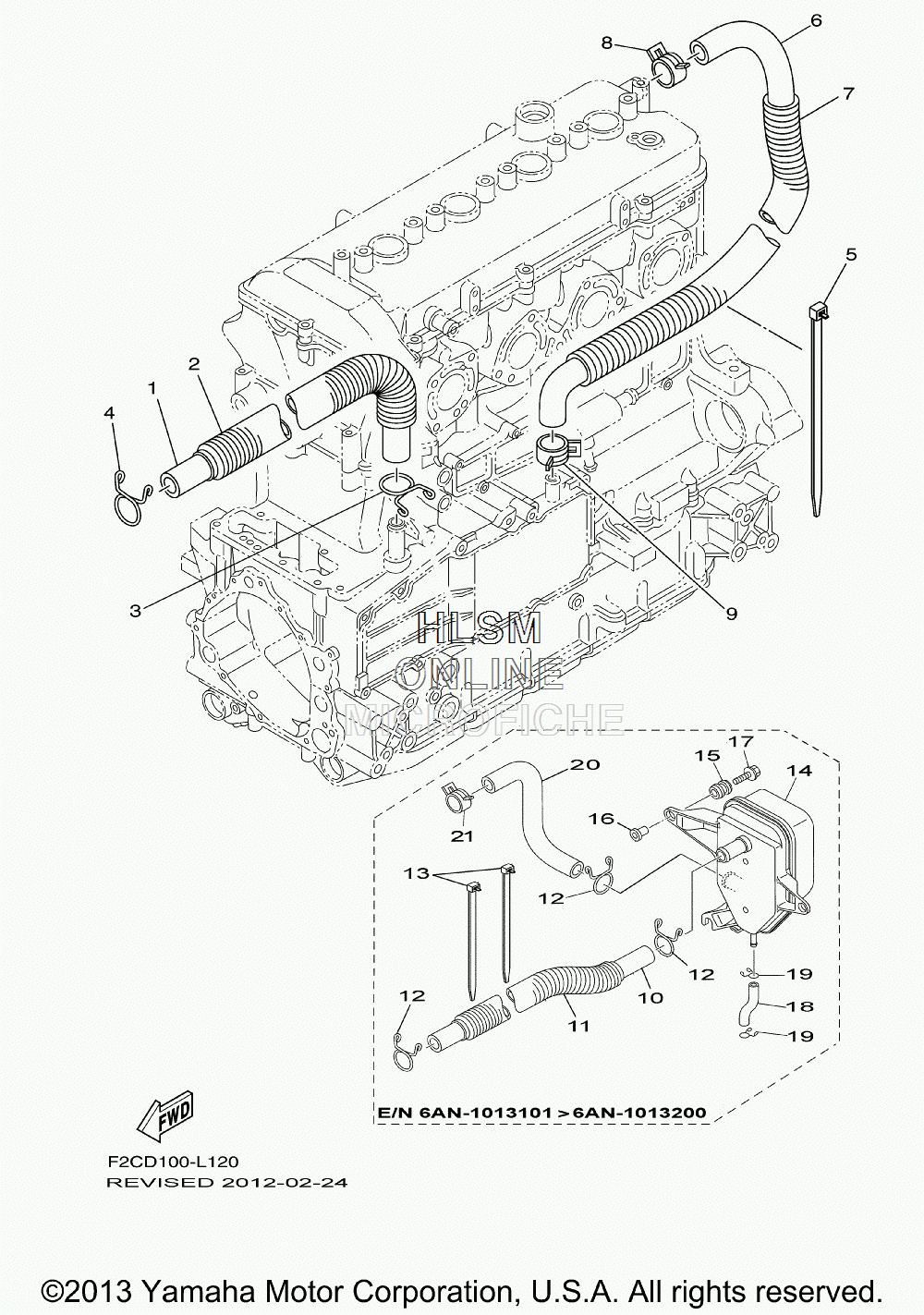

OIL BREATHER ASSY. для Yamaha WAVERUNNER FZR [GX1800L] - 2012 года выпуска
-
№АртикулНазвание
-
16S5-11166-10-00 PIPE, BREATHER 1 (E/N 6AN-1013201 & UP)PIPE, BREATHER 1 (E/N 6AN-1013201 & UP)
-
290447-22015-00 TUBE (L410) (E/N 6AN-1013201 & UP)TUBE (L410) (E/N 6AN-1013201 & UP)
-
390467-190A0-00 CLIPCLIP
-
490467-190A0-00 CLIPCLIP
-
590465-14M66-00 CLAMPCLAMP
-
66S5-11167-10-00 PIPE, BREATHER 2 (E/N 6AN-1013201 & UP)PIPE, BREATHER 2 (E/N 6AN-1013201 & UP)
-
790447-22016-00 TUBE (L490) (E/N 6AN-1013201 & UP)TUBE (L490) (E/N 6AN-1013201 & UP)
-
890467-240A0-00 CLIPCLIP
-
990467-200A3-00 CLIPCLIP
-
106S5-11166-00-00 PIPE, BREATHER 1 (E/N 6AN-1013101 - 6AN-1013200)PIPE, BREATHER 1 (E/N 6AN-1013101 - 6AN-1013200)
-
1190447-25003-00 TUBE (L650) (E/N 6AN-1013101 - 6AN-1013200)TUBE (L650) (E/N 6AN-1013101 - 6AN-1013200)
-
1290467-240A2-00 CLIPCLIP
-
1390465-14M66-00 CLAMPCLAMP
-
146BH-11160-00-00 BREATHER ASSY (E/N 6AN-1013101 - 6AN-1013200)BREATHER ASSY (E/N 6AN-1013101 - 6AN-1013200)
-
1561N-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
1690387-06119-00 COLLARCOLLAR
-
1795824-06030-00 BOLT, FLANGEBOLT, FLANGE
-
186S5-11125-00-00 PIPE, BREATHER 4 (E/N 6AN-1013101 - 6AN-1013200)PIPE, BREATHER 4 (E/N 6AN-1013101 - 6AN-1013200)
-
1990467-11019-00 CLIPCLIP
-
206S5-11167-00-00 PIPE, BREATHER 2 (E/N 6AN-1013101 - 6AN-1013200)PIPE, BREATHER 2 (E/N 6AN-1013101 - 6AN-1013200)
-
2190467-240A0-00 CLIPCLIP
