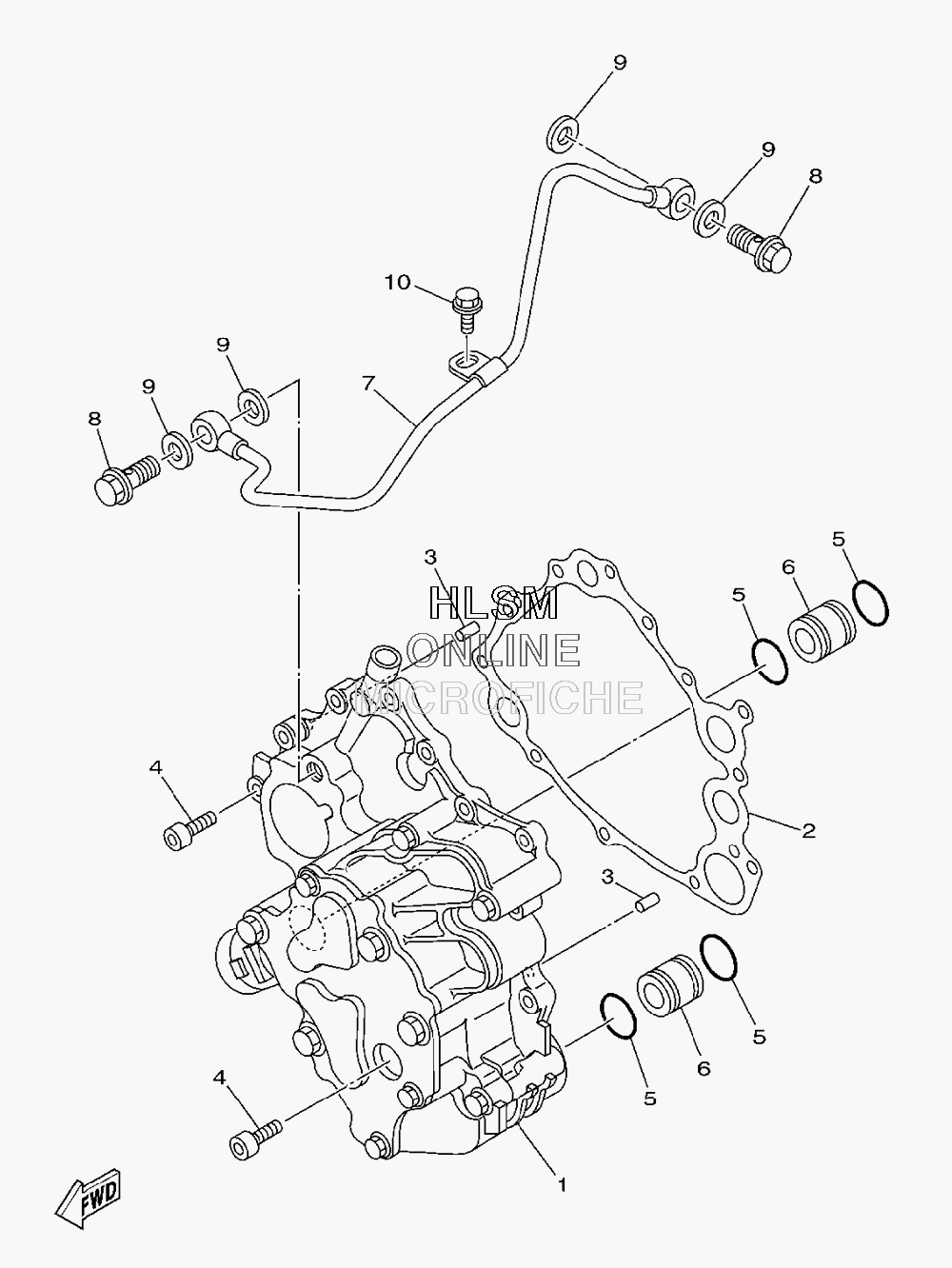

OIL PUMP для Yamaha FX SHO - 2009 года выпуска`
-
№АртикулНазвание
-
16S5-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
26S5-13563-00-00 GASKETGASKET
-
393606-12019-00 PIN, DOWELPIN, DOWEL
-
491314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
593210-21631-00 O-RINGO-RING
-
660E-13446-00-00 CONNECTORCONNECTOR
-
76S5-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
890401-10040-00 BOLT, UNIONBOLT, UNION
-
990430-10007-00 GASKETGASKET
-
1095023-06012-00 BOLT, FLANGEBOLT, FLANGE
Все узлы модели:
- BILGE PUMP
- BUMBER W/ GUNWALE MAT
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER 2
- CYLINDER HEAD COVER ASSY.
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL FITTINGS W/ SPONSONS
- INTAKE 1
- INTAKE 3
- INTAKE AND RIDE PLATE ASSY
- MODEL INFO - MANUALS
- OIL BREATHER ASSY.
- OIL COOLER
- OIL PAN
- • OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT
- SIDE COVERS
- STARTING MOTOR
- SUPER CHARGER ASSY
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
