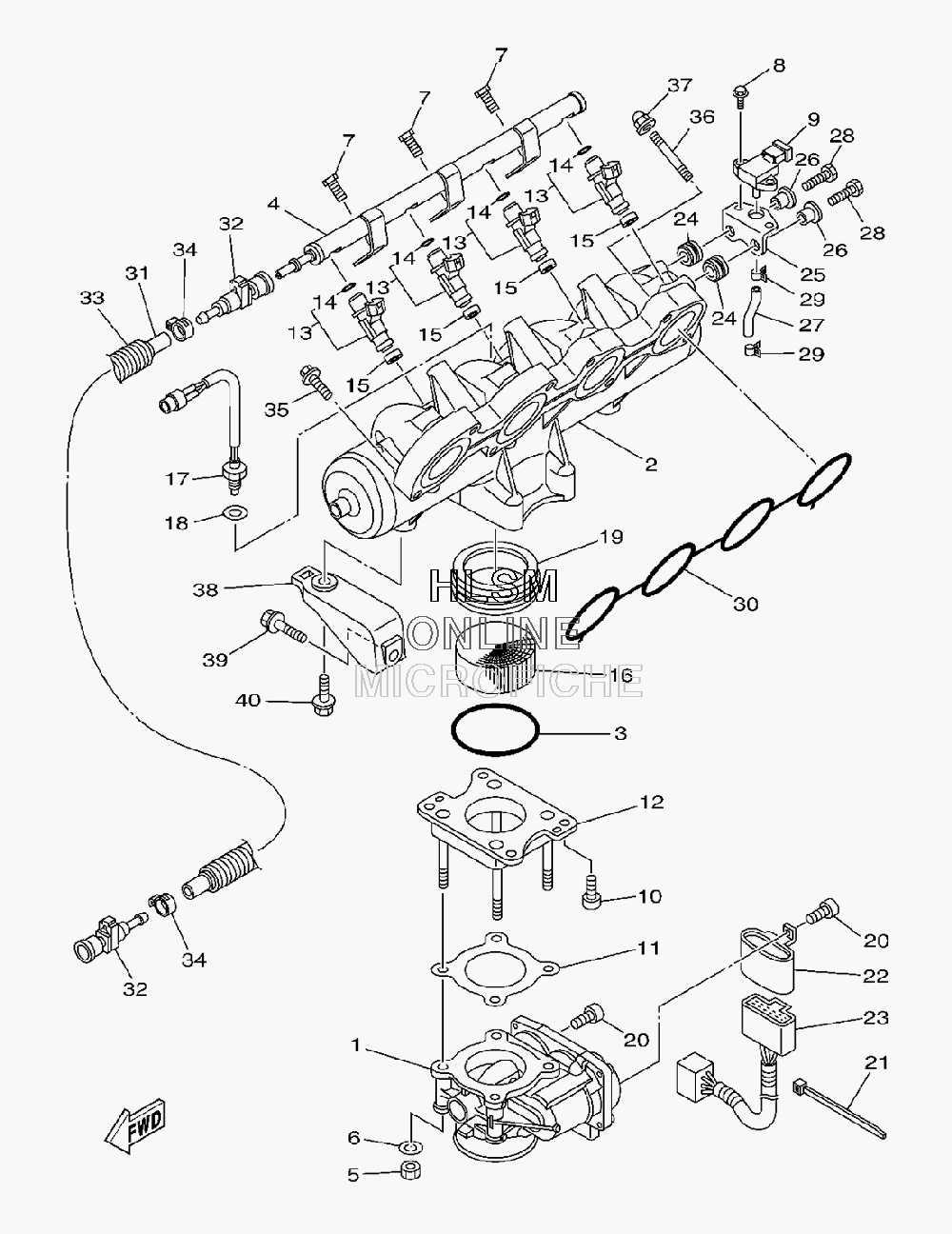

INTAKE 1 для Yamaha FX SHO - 2009 года выпуска`
-
№АртикулНазвание
-
16S5-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
26S5-13641-00-00 MANIFOLD 1MANIFOLD 1
-
36S5-14147-00-00 O-RINGO-RING
-
46S5-12880-00-00 DELIVERY PIPEDELIVERY PIPE
-
56P2-13588-00-00 NUTNUT
-
66P2-13578-00-00 WASHERWASHER
-
763P-14446-00-00 BOLTBOLT
-
86S5-13573-00-00 BOLT 1BOLT 1
-
96S5-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
106S5-14496-00-00 BOLTBOLT
-
116S5-14536-00-00 GASKETGASKET
-
126S5-14360-00-00 THROTTLE DAMPER ASSYTHROTTLE DAMPER ASSY
-
136S5-13761-00-00 INJECTORINJECTOR
-
1460E-14147-00-00 O-RINGO-RING
-
158FP-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
166D3-1444B-00-00 RIBBONRIBBON
-
176S5-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
186S5-14285-00-00 WASHERWASHER
-
196D3-14457-00-00 SEALSEAL
-
206S5-14216-00-00 SCREWSCREW
-
216S5-81128-00-00 CLAMPCLAMP
-
226S5-13881-00-00 COVER 1COVER 1
-
236S5-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
246S5-14445-00-00 GROMMETGROMMET
-
256S5-14291-00-00 BRACKET 1BRACKET 1
-
266S5-14534-00-00 COLLARCOLLAR
-
2769J-13532-00-00 HOSE, VACUUM SENSING 3HOSE, VACUUM SENSING 3
-
286S5-14446-00-00 BOLTBOLT
-
296S5-14159-00-00 CLIPCLIP
-
306S5-13645-00-00 GASKET, MANIFOLD 1GASKET, MANIFOLD 1
-
316S5-14294-00-00 HOSEHOSE
-
326S5-24300-00-00 FUEL PIPE JOINTFUEL PIPE JOINT
-
3390447-19013-00 TUBETUBE
-
3490467-150A3-00 CLIPCLIP
-
3590119-08022-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3690116-08032-00 BOLT, STUDBOLT, STUD
-
3790176-08080-00 NUT, CROWNNUT, CROWN
-
386S5-14413-00-94 STAYSTAY
-
3990119-08043-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4090119-08099-00 BOLT, WITH WASHERBOLT, WITH WASHER
