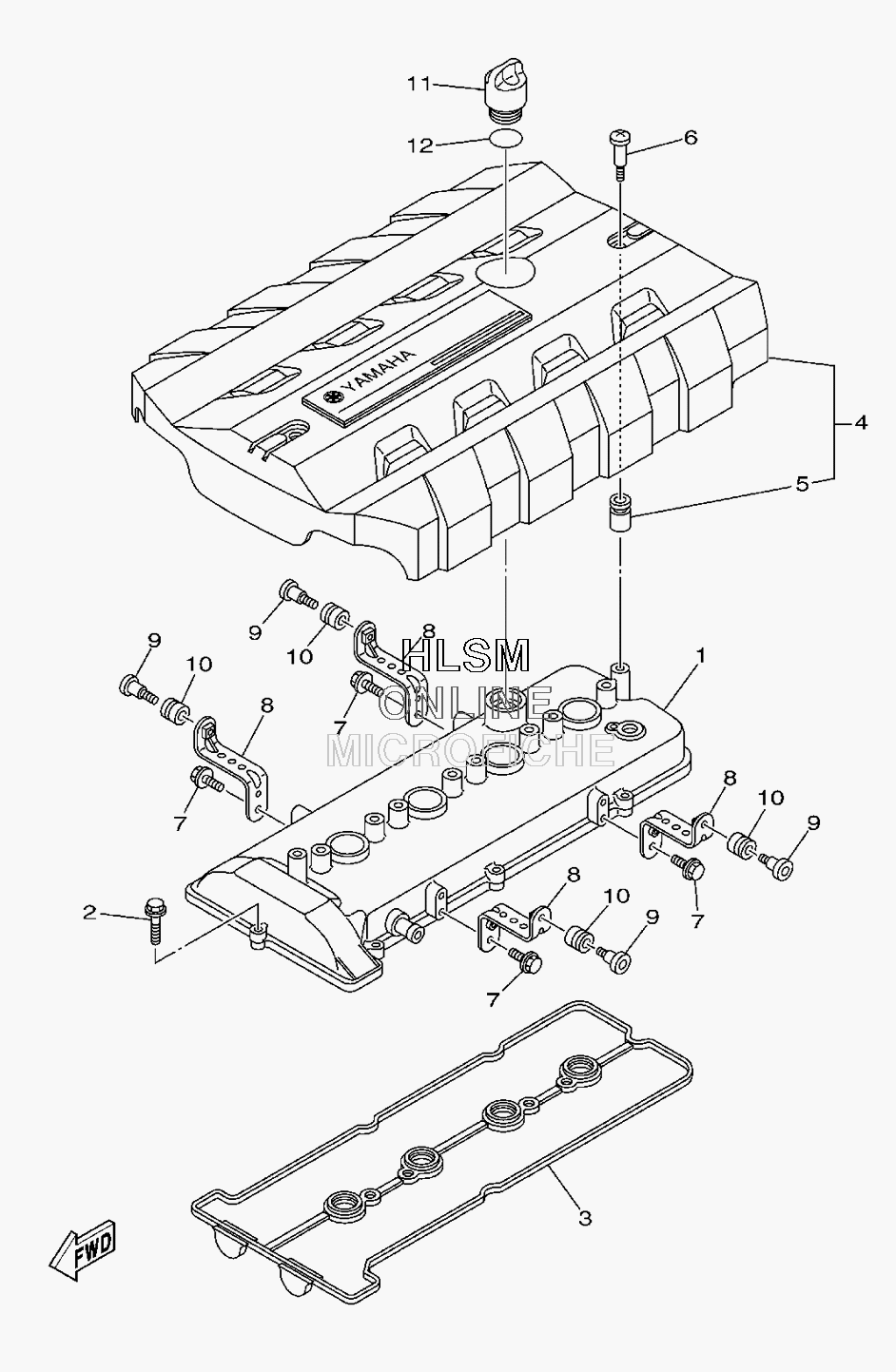

CYLINDER HEAD COVER ASSY. для Yamaha FX SHO - 2009 года выпуска`
-
№АртикулНазвание
-
16S5-11191-00-94 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
290105-06028-00 BOLT, FLANGEBOLT, FLANGE
-
36S5-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
46S5-E110M-00-00 COVER ASSY 1COVER ASSY 1
-
56S5-E1328-00-00 GROMMET, ANODEGROMMET, ANODE
-
66S5-E118E-00-00 BOLT, COVER MOUNTINGBOLT, COVER MOUNTING
-
790105-06007-00 BOLT, FLANGEBOLT, FLANGE
-
86S5-11941-00-00 STAYSTAY
-
96S5-11026-00-00 BOLT, MOUNTBOLT, MOUNT
-
106S5-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
116S5-15363-00-00 PLUG, OILPLUG, OIL
-
1293210-24M79-00 O-RINGO-RING
