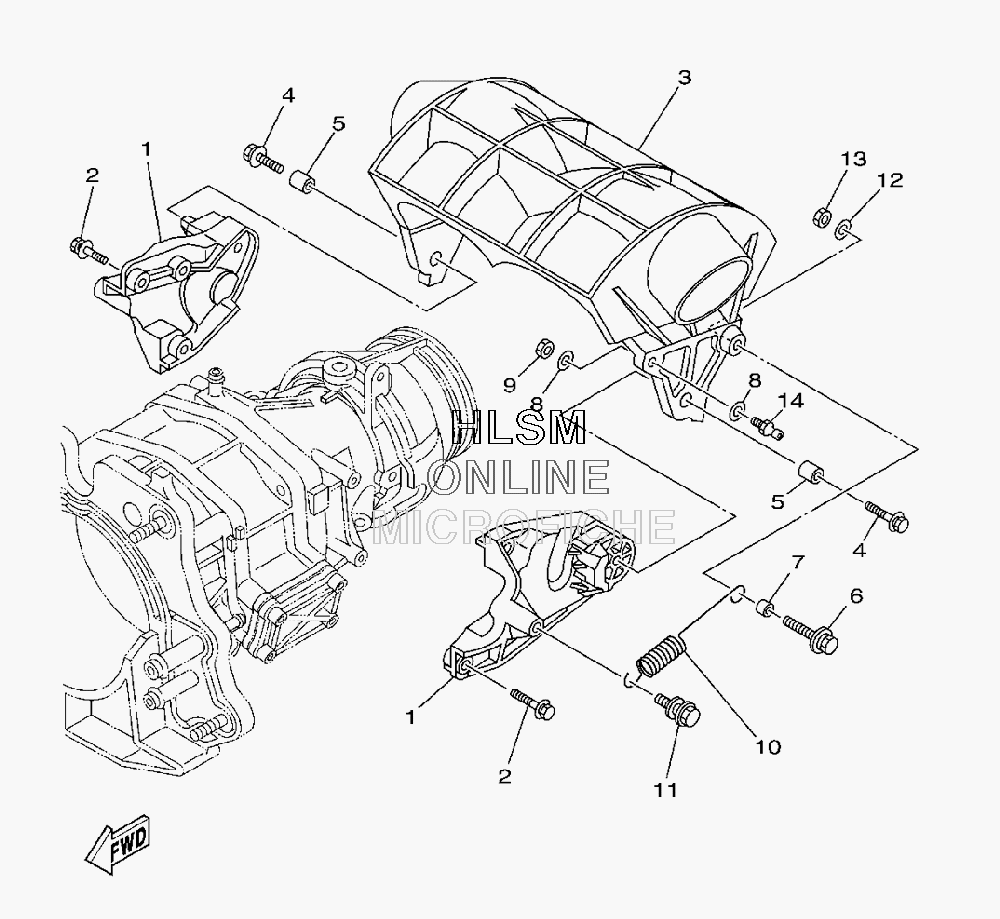

REVERSE GATE для Yamaha FX SHO - 2009 года выпуска`
-
№АртикулНазвание
-
16S5-51341-00-94 BRACKET 1BRACKET 1
-
290119-069UD-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
36S5-R1314-00-00 GATE, REVERSEGATE, REVERSE
-
490119-089UF-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590387-08M30-00 COLLARCOLLAR
-
690119-069UX-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790387-06M30-00 COLLARCOLLAR
-
890201-06801-00 WASHER, PLATEWASHER, PLATE
-
99538R-06600-00 NUTNUT
-
106S5-52358-00-00 SPRING, RETAINERSPRING, RETAINER
-
116S5-45241-00-00 BOLT, FLANGE W/WASHERBOLT, FLANGE W/WASHER
-
1290201-06801-00 WASHER, PLATEWASHER, PLATE
-
139538R-06600-00 NUTNUT
-
14EU0-U1461-02-00 STUD, JOINT BALLSTUD, JOINT BALL
