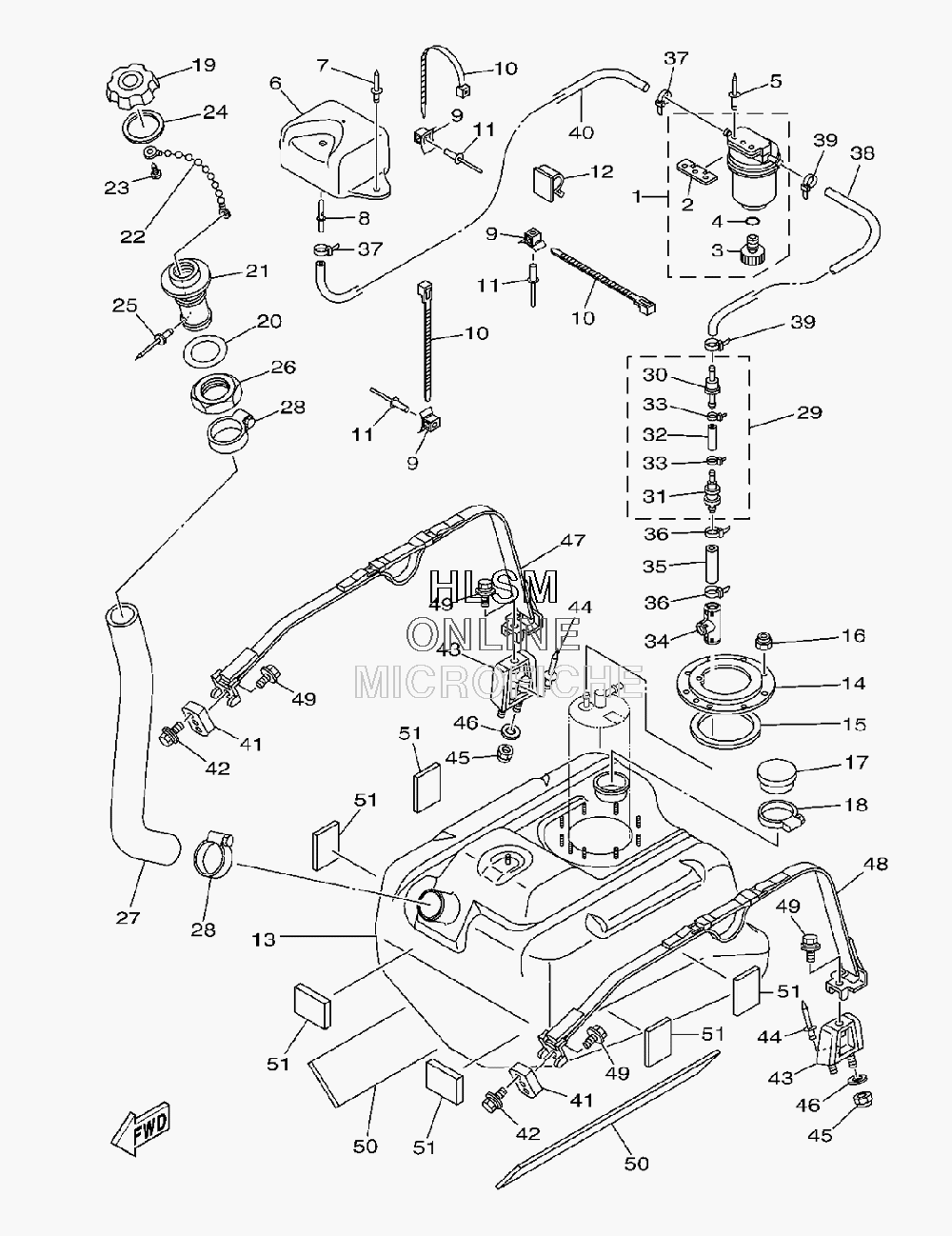

FUEL TANK для Yamaha FX SHO - 2009 года выпуска`
-
№АртикулНазвание
-
1F2F-6214A-00-00 FILTER, VENT ASSYFILTER, VENT ASSY
-
2EW2-62142-00-00 PLATE, FILTERPLATE, FILTER
-
370R-24543-00-00 PLUG, DRAINPLUG, DRAIN
-
470R-24489-00-00 O-RINGO-RING
-
590267-489U2-00 RIVET, BLINDRIVET, BLIND
-
6F1W-U2159-00-00 SOCKET, VENTILATIONSOCKET, VENTILATION
-
790267-489U6-00 RIVET, BLINDRIVET, BLIND
-
8F1G-62149-00-00 PIPE, VENTILATIONPIPE, VENTILATION
-
990600-91736-00 CLAMP COMP.CLAMP COMP.
-
1090464-32801-00 CLAMPCLAMP
-
1190267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1290464-17800-00 CLAMPCLAMP
-
13F1W-U7711-01-00 TANK, FUELTANK, FUEL
-
14F1B-U7773-00-00 RINGRING
-
15F1B-67747-00-00 PACKING, SEALPACKING, SEAL
-
169572R-06300-00 NUT, NYLONNUT, NYLON
-
17FN8-6771K-00-00 COVERCOVER
-
1890601-162U5-00 BAND, HOSE 62BAND, HOSE 62
-
19GP7-U7831-11-00 CAP, FUEL FILLER BLACKCAP, FUEL FILLER BLACK
-
20GP7-U7834-10-00 PACKING FUEL FILLERPACKING FUEL FILLER
-
21GP7-U7833-11-00 SOCKETSOCKET
-
22GP7-U7835-00-00 CHAIN BALLCHAIN BALL
-
2390169-049U1-00 TAPPING SCREWTAPPING SCREW
-
24GP7-U7832-01-00 PACKINGPACKING
-
2590267-329UR-00 RIVET, BLINDRIVET, BLIND
-
26GP7-U783F-00-00 NUT, FUEL FILLERNUT, FUEL FILLER
-
27F1W-U7844-00-00 HOSEHOSE
-
2890601-155U4-00 BAND, HOSE 55BAND, HOSE 55
-
29F1B-62150-00-00 AIR, VENT ASSYAIR, VENT ASSY
-
30F1B-67767-00-00 CHECK VALVECHECK VALVE
-
31FJ0-67766-00-00 ROLL OVER VALVEROLL OVER VALVE
-
3290699-50004-00 HOSE (L40)HOSE (L40)
-
3390465-11M10-00 CLAMPCLAMP
-
34F1W-U771K-00-00 COVERCOVER
-
35F1W-U785H-00-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
3690465-11829-00 CLAMPCLAMP
-
3790465-11829-00 CLAMPCLAMP
-
38F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
3990465-11829-00 CLAMPCLAMP
-
40F0D-U7856-10-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
41F1X-U2873-00-00 NUT, SPECIALNUT, SPECIAL
-
4290119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
43F1B-6774J-00-00 BRACKET, BANDBRACKET, BAND
-
4490267-489UE-00 RIVET, BLINDRIVET, BLIND
-
459572R-06300-00 NUT, NYLONNUT, NYLON
-
469299R-06200-00 WASHERWASHER
-
47F1B-67743-02-00 BELT, TANK 1BELT, TANK 1
-
48F1W-67743-00-00 BELT, TANK 1BELT, TANK 1
-
4990119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
50F1W-U759B-00-00 MAT 1MAT 1
-
51F1W-U759C-01-00 MAT 2MAT 2
