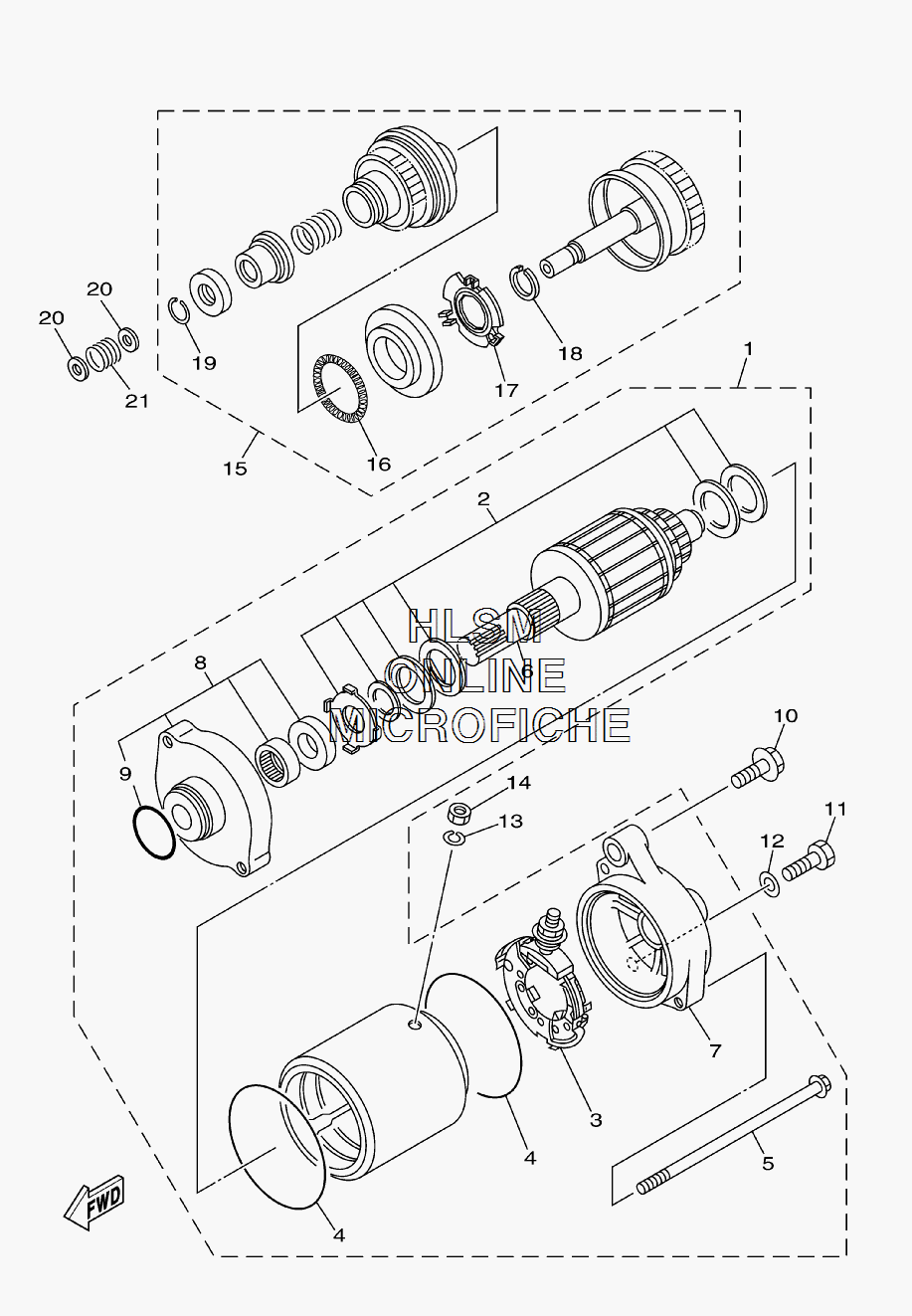

STARTING MOTOR для Yamaha SUPERJET - 2007 года выпуска`
-
№АртикулНазвание
-
16M6-81800-10-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
23AJ-81809-00-00 ...WASHER KIT...WASHER KIT
-
36M6-81840-10-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
411H-81844-00-00 ...GASKET...GASKET
-
56M6-81826-00-00 ...BOLT...BOLT
-
66M6-81850-00-00 ...ARMATURE ASSY...ARMATURE ASSY
-
76M6-81820-00-00 ...REAR BRACKET ASSY...REAR BRACKET ASSY
-
86M6-81830-00-00 ...FRONT BRACKET ASSY...FRONT BRACKET ASSY
-
926H-81847-00-00 ...O-RING...O-RING
-
1097513-08540-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1197013-08035-00 BOLTBOLT
-
1292903-08600-00 WASHER, PLATEWASHER, PLATE
-
1392990-06100-00 WASHER, SPRINGWASHER, SPRING
-
1495380-06700-00 NUTNUT
-
156M6-8183E-01-00 IDLE GEAR COMP.IDLE GEAR COMP.
-
166M6-81866-00-00 ...WEIGHT SPRING...WEIGHT SPRING
-
176M6-81865-00-00 ...WEIGHT HOLDER...WEIGHT HOLDER
-
1893440-25M08-00 ...CIRCLIP...CIRCLIP
-
1993450-18M06-00 ...CIRCLIP...CIRCLIP
-
2092903-06600-00 WASHER, PLATEWASHER, PLATE
-
2190501-14M73-00 SPRING, COMPRESSIONSPRING, COMPRESSION
