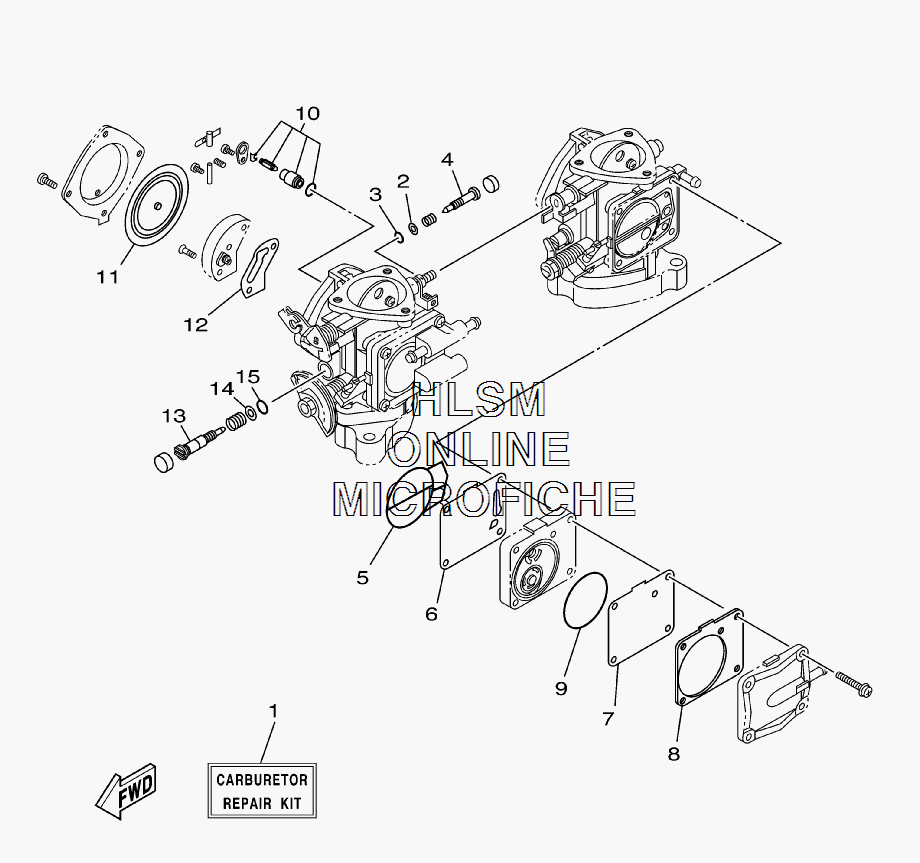

CARBURETOR REPAIR KIT для Yamaha SUPERJET - 2007 года выпуска`
-
№АртикулНазвание
-
164U-W0093-10-00 CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
-
2812-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
3812-14147-00-00 ...O-RING...O-RING
-
464U-14946-00-00 ...PLATE, NEEDLE FITTING...PLATE, NEEDLE FITTING
-
56K8-14564-00-00 ...O-RING...O-RING
-
66K8-24411-20-00 ...DIAPHRAGM...DIAPHRAGM
-
76K8-24421-10-00 ...VALVE, CHECK...VALVE, CHECK
-
86K8-24431-20-00 ...GASKET, FUEL PUMP 1...GASKET, FUEL PUMP 1
-
96K8-14563-00-00 ...O-RING...O-RING
-
1061X-14916-16-00 ...NEEDLE...NEEDLE
-
116R7-14541-00-00 ...DIAPHRAGM, PUMP...DIAPHRAGM, PUMP
-
126K8-14536-11-00 ...GASKET...GASKET
-
1364U-14923-10-00 ...SCREW, PILOT...SCREW, PILOT
-
14822-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
Все узлы модели:
- AIR SILENCER W/ INTAKE
- BUMBER W/ GUNWALE MAT
- CARBURETOR
- • CARBURETOR REPAIR KIT
- CONTROL CABLES
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CRANKCASE
- ELECTRICAL 1
- ELECTRICAL 2
- ENGINE HATCH
- EXHAUST - HOSES
- EXHAUST SYSTEM
- FUEL LINES
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- STARTING MOTOR
