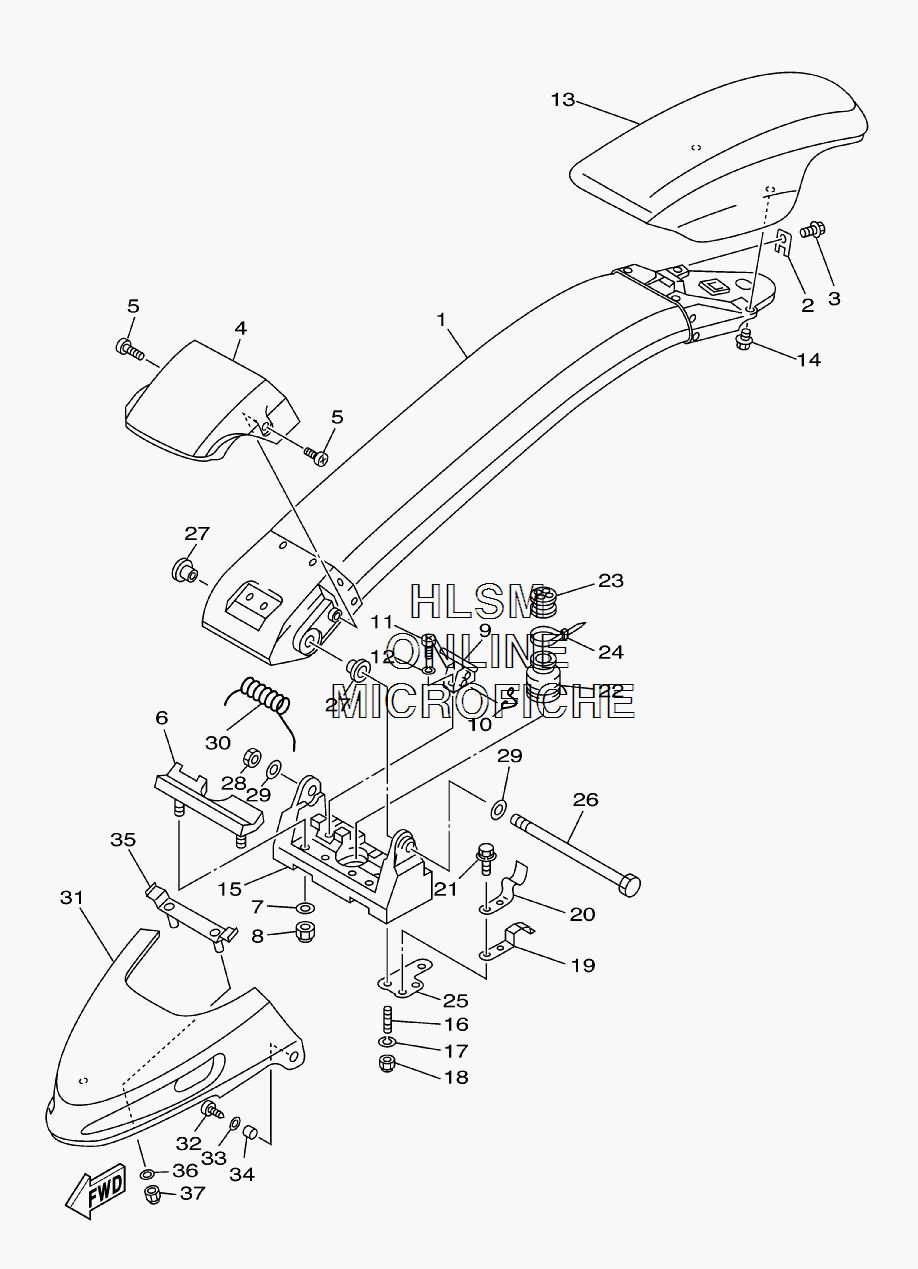

HANDLEBAR PAD для Yamaha SUPERJET - 2007 года выпуска
-
№АртикулНазвание
-
1GM6-6491A-03-P2 STEERING POLE COMP. (BLACK COAT 1)STEERING POLE COMP. (BLACK COAT 1)
-
2FX1-61468-00-00 STOPPER, CABLESTOPPER, CABLE
-
390119-06913-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4FX1-6492E-10-00 COVER, POLE (BLACK)COVER, POLE (BLACK)
-
590149-06997-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
6FX1-61337-00-00 STOPPER, POLESTOPPER, POLE
-
792990-06200-00 WASHER, PLAINWASHER, PLAIN
-
895720-06300-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
9FX1-61105-00-00 STOPPER PIN ASSYSTOPPER PIN ASSY
-
10EW2-61395-30-00 SPRING, TORSIONSPRING, TORSION
-
1197880-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1292990-05100-00 WASHER, SPRINGWASHER, SPRING
-
13GM6-6142A-30-00 STEERING PAD COMP (LIGHT GRAY)STEERING PAD COMP (LIGHT GRAY)
-
1490119-06918-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
15FX1-6133C-13-00 BRACKET, PIVOTBRACKET, PIVOT
-
1695680-08630-00 BOLT, STUDBOLT, STUD
-
1792990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1895720-08300-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
19GM6-6215G-00-00 PLATE, GUIDEPLATE, GUIDE
-
20GM6-65135-00-00 STOPPER, HATCH 1STOPPER, HATCH 1
-
2190119-06900-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
22FX1-61338-00-00 GROMMETGROMMET
-
23EW2-61465-00-00 PACKING, CABLEPACKING, CABLE
-
2490601-20006-00 BANDBAND
-
25GM6-6133B-00-00 PLATE, BRACKETPLATE, BRACKET
-
26FX1-6134L-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
27EW2-61344-01-00 BUSHBUSH
-
2890170-14913-00 NUTNUT
-
2992990-14200-00 WASHER, PLAINWASHER, PLAIN
-
30FX1-61391-00-00 SPRING, PIVOTSPRING, PIVOT
-
31GM6-6492J-30-00 COVER, PIVOT 1 (BLACK)COVER, PIVOT 1 (BLACK)
-
3297780-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
3392990-06200-00 WASHER, PLAINWASHER, PLAIN
-
3490387-06916-00 COLLARCOLLAR
-
35GM6-64949-00-00 BRACKETBRACKET
-
3692990-06200-00 WASHER, PLAINWASHER, PLAIN
-
3795720-06300-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
