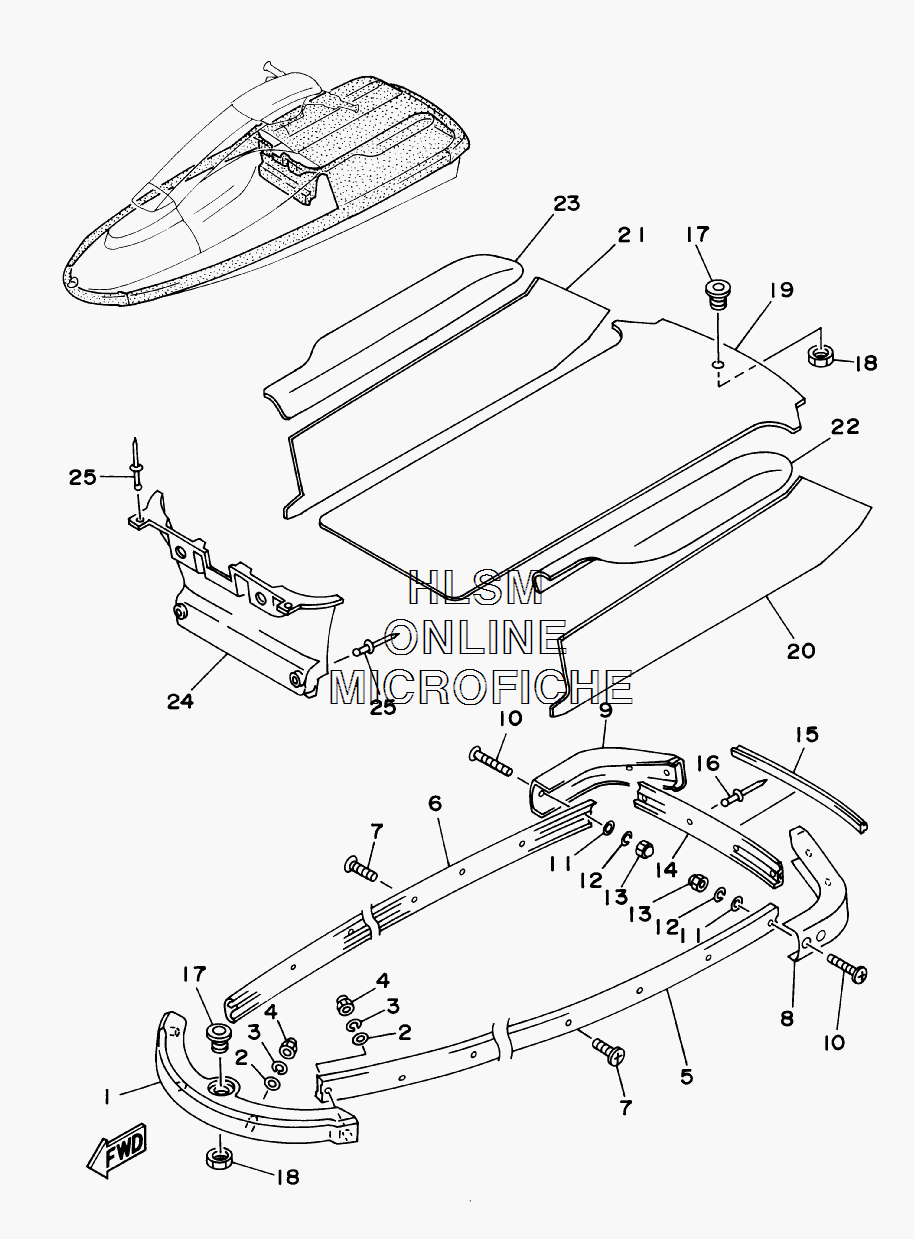

BUMBER W/ GUNWALE MAT для Yamaha SUPERJET - 2007 года выпуска`
-
№АртикулНазвание
-
1GM6-62501-10-00 BOW GUNWALE COMP. (BLACK)BOW GUNWALE COMP. (BLACK)
-
292990-06200-00 WASHER, PLAINWASHER, PLAIN
-
392990-06100-00 WASHER, SPRINGWASHER, SPRING
-
495380-06800-00 NUT(CROWN)NUT(CROWN)
-
5GM6-62552-10-00 GUNWALE, SIDE 1 (BLACK)GUNWALE, SIDE 1 (BLACK)
-
6GM6-62553-10-00 GUNWALE, SIDE 2 (BLACK)GUNWALE, SIDE 2 (BLACK)
-
790149-05962-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
8GM6-6251D-10-00 GUNWALE, STERN 1 (BLACK)GUNWALE, STERN 1 (BLACK)
-
9GM6-6251E-10-00 GUNWALE, STERN 2 (BLACK)GUNWALE, STERN 2 (BLACK)
-
1090149-05960-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
1192990-05200-00 WASHER, PLAINWASHER, PLAIN
-
1292990-05100-00 WASHER, SPRINGWASHER, SPRING
-
1390179-05964-00 NUTNUT
-
14GM6-6252C-10-00 COVER, GUNWALE 1 (BLACK)COVER, GUNWALE 1 (BLACK)
-
15GM6-6252D-10-00 COVER, GUNWALE 2 (BLACK)COVER, GUNWALE 2 (BLACK)
-
1690267-48932-00 RIVET, BLINDRIVET, BLIND
-
17FN8-61651-01-00 ROPE HOLEROPE HOLE
-
18EU0-61652-00-00 NUTNUT
-
19GM6-6351B-00-00 MAT, LOWER (BLACK)MAT, LOWER (BLACK)
-
20GM6-6351C-00-00 MAT, SIDE 1 (BLACK)MAT, SIDE 1 (BLACK)
-
21GM6-6351D-00-00 MAT, SIDE 2 (BLACK)MAT, SIDE 2 (BLACK)
-
22GM6-6521C-10-00 PAD 1 (BLACK)PAD 1 (BLACK)
-
23GM6-6521D-10-00 PAD 2 (BLACK)PAD 2 (BLACK)
-
24GM6-6351E-10-00 MAT, BOW (BLACK)MAT, BOW (BLACK)
-
2590267-48963-00 RIVET, BLINDRIVET, BLIND
