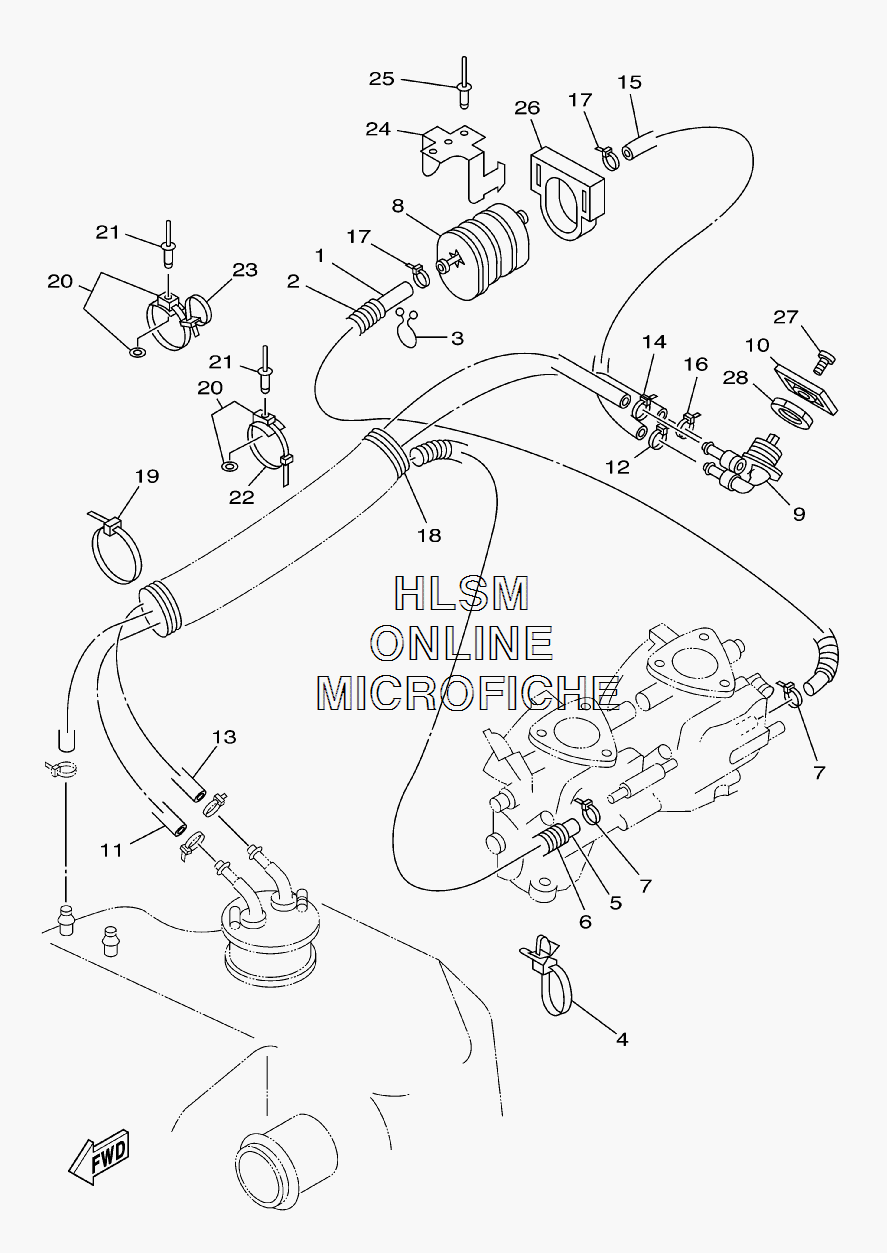

FUEL LINES для Yamaha SUPERJET - 2007 года выпуска`
-
№АртикулНазвание
-
190445-10ME8-00 HOSE (L230)HOSE (L230)
-
290446-14M23-00 HOSEHOSE
-
390464-08M07-00 CLAMPCLAMP
-
490465-12M56-00 CLAMPCLAMP
-
590445-10MF1-00 HOSE (L1220)HOSE (L1220)
-
690446-14M64-00 HOSEHOSE
-
790465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
86K8-24560-10-00 FILTER ASSYFILTER ASSY
-
96K8-24500-02-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
106R7-24524-00-00 LEVER, COCKLEVER, COCK
-
1190445-10ME3-00 HOSE (L1010)HOSE (L1010)
-
1290465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
1390445-10M98-00 HOSE (L1010)HOSE (L1010)
-
1490465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
1590445-10ME4-00 HOSE (L140)HOSE (L140)
-
1690465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
1790465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
18GM6-6773E-00-00 TUBE,2TUBE,2
-
1990601-20006-00 BANDBAND
-
2090600-91736-00 CLAMP COMP.CLAMP COMP.
-
2190267-48925-00 RIVET, BLINDRIVET, BLIND
-
2290601-20006-00 BANDBAND
-
2390601-20016-00 BANDBAND
-
24EU0-67816-30-00 BRACKET, FUEL FILTERBRACKET, FUEL FILTER
-
2590267-48925-00 RIVET, BLINDRIVET, BLIND
-
26EU0-67817-00-00 HOLDERHOLDER
-
2798980-04008-00 SCREW, BINDSCREW, BIND
-
2890170-22187-00 NUTNUT
